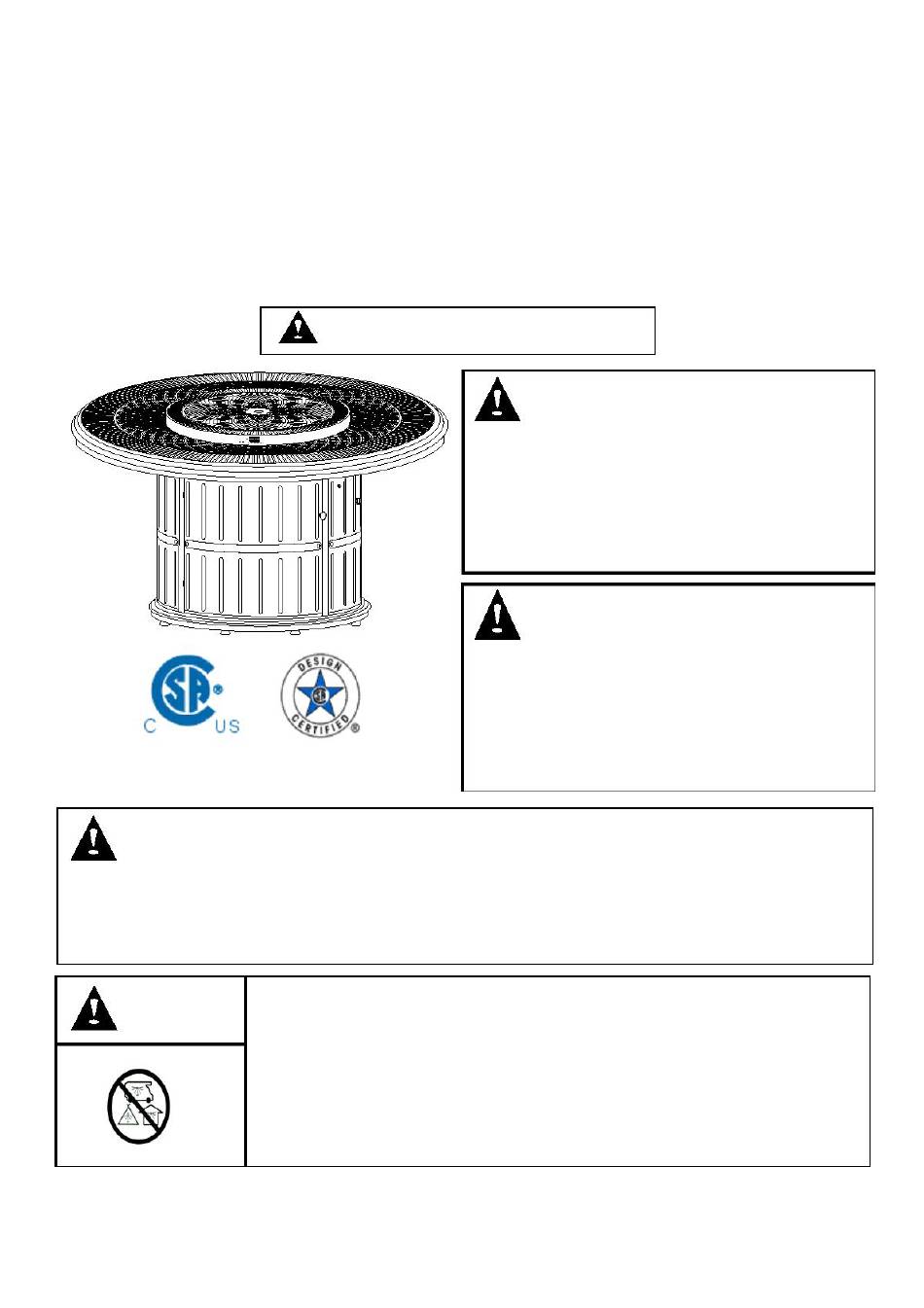

Sunjoy D-DN1377SAL-A Assembly Instruction Manual
Hide thumbs Also See for D-DN1377SAL-A:

Advertisement

Quick Links

377SAL
Propane tank not included
AA battery needed, not included
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2012/CSA 2.41-2012, Outdoor Decorative Gas Appliances.
Assembly Instruction
Item# D-DN1377SAL-A / L-DN1377SAL-A
WARNING: For Outdoor Use Only.
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
(Table)
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
CARBON MONOXIDE HAZARD
1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-DN1377SAL-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy D-DN1377SAL-A

  • Page 1 377SAL Assembly Instruction Item# D-DN1377SAL-A / L-DN1377SAL-A (Table) WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS General information …………….…….………………….………………..………….…… 2 Specification……….……………………………………….……………….……….……… 3 Important safety information and precaution……………….….….….….…….……... 3-4 Expanded view……………………………………………………….……….……..……..5 Parts list……………………….………………………….…………………………….…….6 Installation………………………….………………………..………………….…….………7 Location……………………………………………………………………….…….…….…..8 Set up……………………………………………………………….…………….……...……8 Gas connection ………………………………….……………….……………….……… 8-9 Operation……………………………………………………………….……………...……..9 Leak check………………………………………………………….…………………...……9 Ignite lighting………………………………………………………….…………………. 9-10 Storage and Maintenance………………………………………….……....… 10-11 Trouble shooting ………………………………………………...….………………..…...11 Limited warranty……………………………………………………………….….……...
  • Page 3: Specification

    SPECIFICATION Model NO. L-DN1377SAL-A 50,000BTU/HR Rated Heat Input Propane-LP Fuel 20 lb. LP-Gas cylinder Gas Supply 11 Inches W.C. Manifold Pressure 2.18mm Orifice Size (diameter) Gas Supply Pressure Max.250 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION When the appliance is for connection to a fixed piping system,the installation must conform with ...
  • Page 4 gas leak. Have the appliance inspected annually by a qualified service person. The pressure regulator and hose assembly provided with the appliance must be used.  replacement part must be the same as the part specified by manufacturer. The assembly of LP-gas and leak checking, please refer to the “Gas connection” on page 8 and “leak ...
  • Page 5: Expanded View

    EXPANDED VIEW 5 of 12...
  • Page 6: Parts List

    Parts List Description Lazy Susan Table Top Main Body Base 1 (4.1KG) Cullet (Tempered Glass) Armor Plate Screen Windshield 1 Windshield 2 Ignition Wire Battery Box Control Knob Control Valve Pressure Regulator Nozzle Subassembly Thermocouple Nozzle Support Bar Burner Fire Bowl Hardware Bag Description Picture...
  • Page 7: Installation

    INSTALLATION Installation will be much easier with two or more people. Fig 1: Put Table Top (B) on Main Body (C), then use Bolt (AA) to lock them from the bottom up. Fig 2: Put Lazy Susan (A) on Table Top (B). 7 of 12...
  • Page 8: Location

    LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface.
  • Page 9: Operation

    Fig 7 Fig 6 OPERATION LEAK TEST !!!WARNING!!! Do not use an open flame to check for leaks.  Do not smoke during testing.  Do not test indoors.   A leak check must be performed whenever the gas cylinder is replaced. 1- Make sure the control knob is on the “OFF”...
  • Page 10: Storage And Maintenance

    NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. The flame can be identified by the following figure. YELLO W TIP H IGH LO W Correct Flame BLU E Incorrect Flame BLUE Warning: Lighting the appliance improperly could lead to an unsafe condition.
  • Page 11: Trouble Shooting

    Permanent installation and repair should be done by a qualified service person. The appliance  should be inspected annually by a qualified service person. TROUBLE SHOOTING PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES Gas odor —Gas leak —See “If you smell gas:” on front cover of manual —Check all gas connections —Check gas supply pressure...
  • Page 12: Cleaning And Maintenance

    damage arising from the installation or operation of the product and/or the failure of any part for any reason. There are no other express or implied warranties, except for those stipulated herein. This warranty  gives specific rights and the original purchaser may have additional rights and remedies in law. This warranty does not cover commercial use.
