PCE Instruments PCE-PHM 12 Quick Start Manual

Aquarium pH meter with temperature compensation up to 50°C (122°F) / Detachable pH electrode universal
saturation device / Temperature unit switchable / Easy to use / For permanent installation and mobile use /

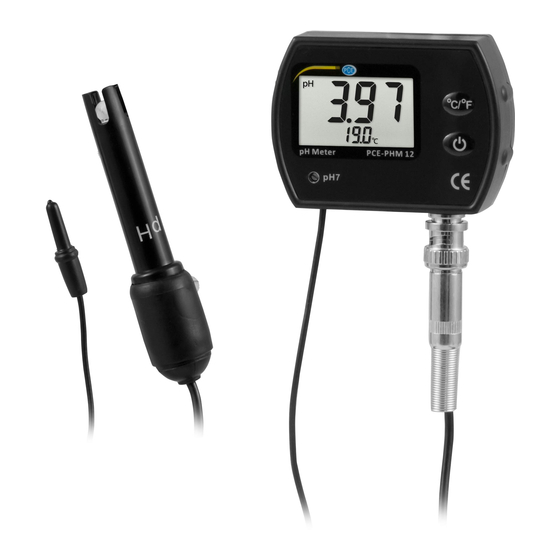

The aquarium pH meter PCE-PHM 12 was specially developed for the pH measurement in aquariums. With the
included universal holder, the aquarium pH meter can be attached to any aquarium. The permanently installed
temperature probe on the aquarium pH meter is not only used for temperature indication but also for temperature
compensation. With the aquarium pH meter this guarantees a precise measured value even with a temperature
fluctuation. Depending on your needs, an adjustment on the aquarium pH meter can also be carried out with a pH 7
reference solution.
The aquarium pH meter has two power supply options. On the one hand, it is possible to operate the aquarium ph meter
with the supplied power supply. On the other hand, it is possible to operate the aquarium pH meter with four batteries.
Thus, the aquarium pH meter is suitable for permanent installation and also for mobile use.
- Temperature compensation up to 50°C / 122°F
- Universal mounting bracket
- Removable pH electrode
- Easy to use
- Switchable temperature unit
- Battery and mains operation possible
Specifications:
Function
Measuring range
Resolution
Accuracy
Function
Measuring range
Resolution
Accuracy
Power supply
Battery
Power adapter
Environmental conditions
Dimensions
Weight
Delivery scope:
1 x Environmental meter PCE-PHM 12
1 x pH electrode
1 x Screwdriver
1 x Suction cup
1 x Velcro closure
Aquarium environmental meter PCE-PHM 12
Single-point adjustment
pH
0.00 ... 14.00 pH
0.01 pH
± 0.1 pH
Temperature
0 ... 55°C / 32 ... 122°F
0.1°C / 0.18°F
± 1°C / 1.8°F
6V DC (batteries or power supply)
4 x 1.5V LR44 AG13
Primary: 230 ... 240V AC, 50 Hz, 19 mA
Secondary: 6V DC, 100-mA
0 ... 50°C / 32 ... 122°F, <95% rh
75 x 55 x 25 mm
75 g / < 1 lb
