- Page 1 USER MANUAL DIGITAL MANOMETER PCE-PME Series User manuals in various languages (français, italiano, español, português, nederlands, türk, polski) can be found via our product search on: www.pce-instruments.com...
-

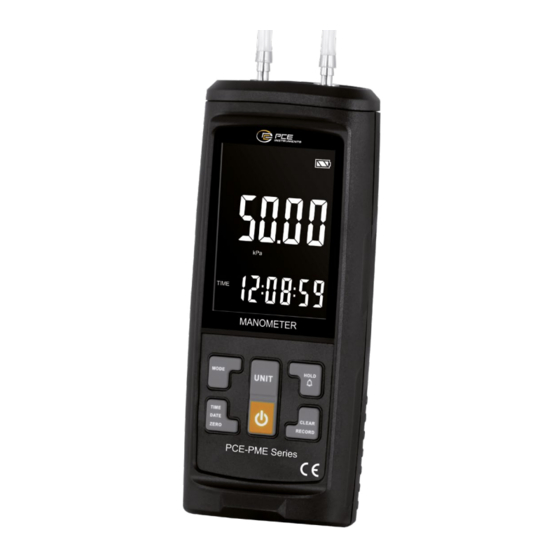

Page 2: Device Description
DEVICE DESCRIPTION Low pressure chamber High pressure chamber A. SCOPE OF APPLICATION Widely used to measure fan and blower pressure, filter resistance, air speed, furnace pressure, orifice plate differential pressure, etc. lt is also used for controlling the air to gas ratio and the automatic valve in combustion process, and monitoring blood pressure and respiratory pressure in medical care equipment. - Page 3 » Time-date switch: short press button 4. » Barometric pressure zero calibration: long press button 4. » Power on: short press button 5. » Power off: long press button 5. » Automatic shutdown function; On: Automatie shutdown time setting: Computer application > settings > fill in the automatic shutdown time >...
-
Page 4: Battery Description
C. BATTERY DESCRIPTION This device uses a lithium battery; Charging method: 5V1A mobile phone power adapter; Charging time (from 10% to 100%): about 1.5 hours; Working time (from 100% to automatic shutdown): about 13 hours; Standby time (from 100% to normal startup): Automatic shutdown when the voltage is lower than 2.9V about 8 months;... - Page 5 E. LCD INTERFACE DISPLAY HOLD RECORD DIFFERENTIAL PRESSURE mbar Pa Kgf/cm² mmHg cmH2O Ozf/In² Psi InHg InH2O ftH2O HPa m/s fpm TIME DATE 1. Data lock 2. Record data 3. Clear recorded dat 4. USB connection status 5. Battery level display / and charging lunction display 6.
- Page 6 F. ANNOTATIONS 1) Accuracy: Relatively applicable to the maximum output deviation of the best fitting straight line (BFSL) measured in the pressure range of 25°C. lncluding all errors caused by pressure nonlinearity, pressure lag, and non repeatability; 2) Overload pressure: The maximum pressure that can be safely applied to the product, so that the pro- duct specification remains unchanged when the pressure returns to the working pressure range.
-
Page 7: Notes Before Use
H. NOTES BEFORE USE 1)Due to the large range of pneumatic dynamic state, the differential pressure gauge with a range of ±40Kpa to ±1 00Kpa will have zero drill of 20 to 50pa. The error caused by zero drift is small compared with the total error and can be ignored. - Page 8 We either re-use them or give them to a recycling company which disposes of the devi- ces in line with law. For countries outside the EU, batteries and devices should be disposed of in accordan- ce with your local waste regulations. If you have any questions, please contact PCE Instruments. PCE INSTRUMENTS CONTACT INFORMATION...
