Summary of Contents for Newland SPEEDATA SD35

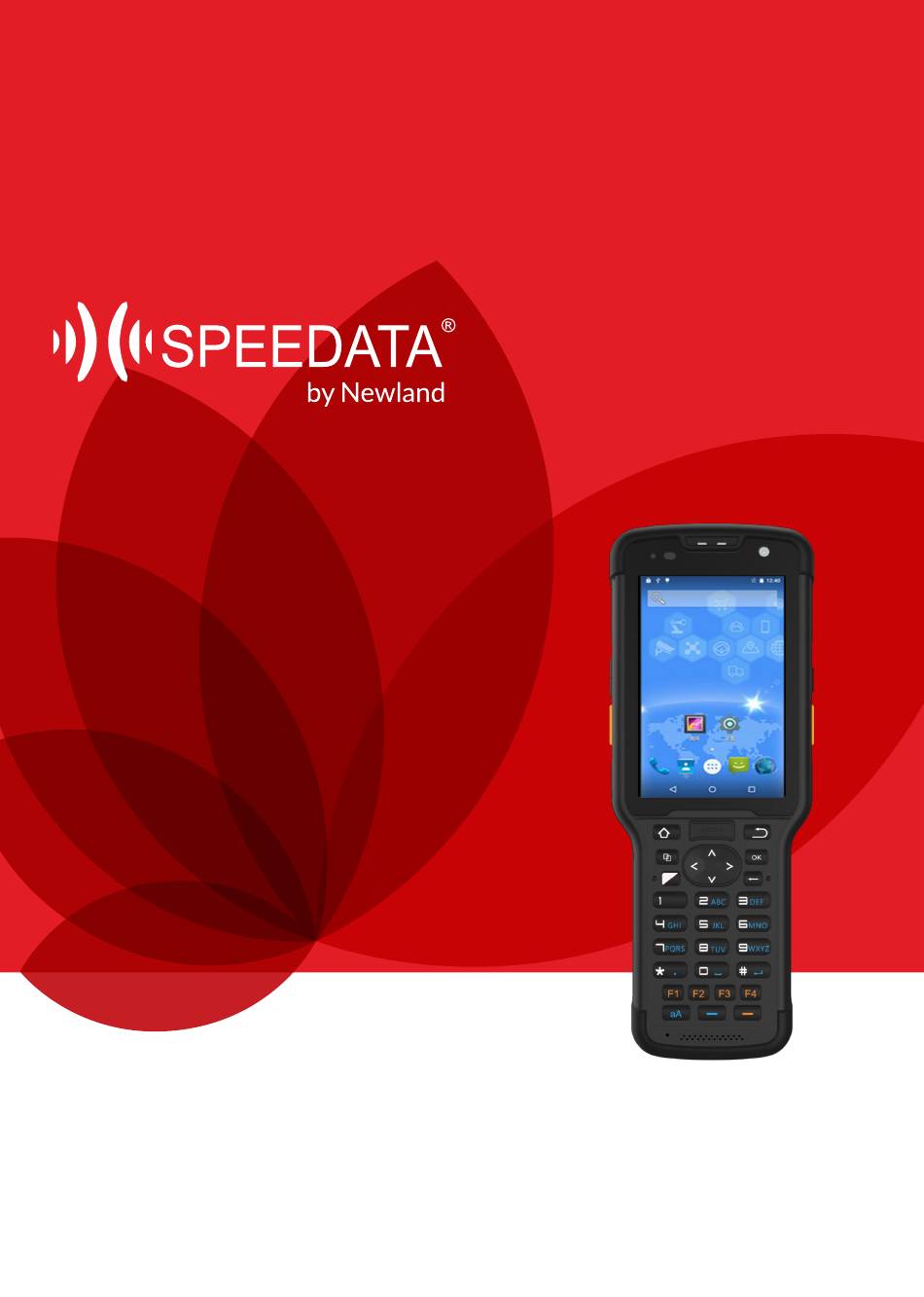

  • Page 1 SD35 User Guide...
  • Page 2 SD35 User guide V1.0 Appearance...
  • Page 3 SD35 User guide V1.0 Keypad Volume key Power key Scan key Scanning Scan key Home key Back key Resent key OK key Enter key Screen off Function keys...

  • Page 4: Virtual Keyboard

    SD35 User guide V1.0 Virtual Keyboard When the device is turned for the first time ,please Click “Setting” -> ”system ”->”Languages&Input”->”Physical Keyboard”,and enable “Show Virtual keyboard”.Then you can use “Virtual Keyboard”and”Physical Keyboard” at the same time. Quick setup You can click the iron in the lower right corner to enter the “Change keyboard” interface to enable “Show virtual keyboard”.

  • Page 5: Physical Keyboard

    SD35 User guide V1.0 Physical Keyboard When the device is turned on for the first time,the default input of the physical keyboard is numbers.You can switch between numbers and uppercase and lowercase by pressing the “aA”key. Note:Please refer to the “physical key definition” for how to use the function keys.
  • Page 6 SD35 User guide V1.0 SIM Card 1 Both SIM cards use standard Nano-SIM cards. Please use professional equipment to open the SIM card warehouse, so as not to damage the equipment and affect the protection performance. 2 When the SIM1 card is placed, the SIM1 card is placed horizontally in the upper right corner of the second layer of the slot, which is flat with the slot, and the SIM1 card is successfully placed.
  • Page 7 SD35 User guide V1.0 Charging&Attention 1 Please use the supplied charger and USB (Type-C) cable. Otherwise, the fast charging mode cannot be enabled. Using a non-original charger and a USB charging cable may result in long charging time and repeated restarts, and affect the battery life.

  • Page 8: Locking And Unlocking The Device

    SD35 User guide V1.0 1 When the device is powered off, press and hold the power button for 2 seconds.And the device will boot into the Android operating system. It takes a long time to initialize the device. Please wait patiently. 2 When the device is powered on, press and hold the power button for 2 seconds.

  • Page 9: Home Screen

    SD35 User guide V1.0 Note:If you select”pattern Unlock”,please pay attention to the prompts during setting, whether you want to use the pattern to unlock when you turn on the device, select "Yes", you need to use the pattern you set to unlock after restarting the device.
  • Page 10 SD35 User guide V1.0 Open an app:Tap to open an app. Add an app iron to the home screen:Swipe up on the main screen interface to see all applications.Tap and hold your desired app and then drag it on the home screen.

  • Page 11: Notification Bar

    SD35 User guide V1.0 Notification bar Touch the top of the screen and swipe down to open the notification bar. You can click the shortcut function icons to turn on and off the corresponding functions such as WLAN, Bluetooth, etc. Unprocessed notification items can be double-tap to expand, touch to view, or swipe left and right to remove.
  • Page 12 SD35 User guide V1.0 Brightness:adjust brightness Wi-Fi ： connect wifi Click to enter Click to enter Edit interface settings Communicating with PC 1 Connect the USB port on the SD35 to your computer with included USB cable. 2 Switch the device on,touch the top of the screen and swipe down to open the notification bar as show below.
  • Page 13 SD35 User guide V1.0 debugging Notification connected:connec bar:double-tap t USB to disable expend,touch debugging view,swipe left and mode right to remove USB usage:Click to enter the USB usage selection interface, select the corresponding mode according to your needs...

  • Page 14: Date And Time

    SD35 User guide V1.0 Screenshot Press the device "power" and "volume-" buttons at the same time to take a screenshot, or swipe down the screen to open the notification bar, and click the screenshot icon to take a screenshot. Date&time Set the Date&time:Click Settings->System->Date&time.The time provided by the network can be set as needed or the time zone can be set manually.
  • Page 15 SD35 User guide V1.0 Sound Click settings->Sound,you can set the volume, call vibration, mobile phone ringtone, etc. according to your needs. Note:There is no sound during the use of the device, you can enter the ringtone setting, check whether the volume setting is too low, and check whether the "Do Not Disturb preferences"...

  • Page 16: Wifi & Network

    SD35 User guide V1.0 WIFI & Network Connect to a Wi-Fi network 1 Swipe down from the status bar to open the notification panel. 2 Press to enter the WLAN settings interface. 3 Turn on the WLAN switch. The system will list the detected WLAN networks in tabular form.

  • Page 17: Barcode Scanning

    SD35 User guide V1.0 Barcode Scanning Basic Settings Click "Settings"-"Scan" to enter the scan settings. Turn on / off the barcode scanning function. Scan engine on/off: Results of scanned barcode displayed at focus. Out to Cursor: After the barcode scanning is finished, the tone will sound. Scan Sound: Vibration alert after barcode scanning.
  • Page 18 SD35 User guide V1.0 "Enter" and "Line Feed". With table key With enter key No addition Add custom prefix: add custom characters, numbers, letters, etc. before the barcode output (add "#" for demonstration) Add a custom suffix: add custom characters, numbers, letters, etc. after the barcode output (add "#"...
  • Page 19 SD35 User guide V1.0 Choose code-1d-EAN-13-Enable such as the scan result after scanning "EAN-13" barcode, one less. You can select "EAN-13" type, enable "Check transmit Digit", and scan later the results show normal. Example1:EAN-13 barcode:6456813472345;When "Check transmit Digit"not enabled,the result show 645681347234 ;and when the "Check transmit Digit"...
  • Page 20 SD35 User guide V1.0 enabled,the result show 12345678901,and when the "Check transmit Digit" is enable,the result show 123456789012. Choose code-1d-Code39-Enable such as the scan result after scanning "Code39" barcode, one less. You can select "Code39" type, enable "Transmit Start/Stop Characters ", and scan later the results show normal.
  • Page 21 SD35 User guide V1.0 More settings Click "Settings"-"Scan" to slide to the bottom, and click "More". Show scan hand type.And can check update after connecting to Check update: the internet. Note: "Check update"requires the scanning service version 5.1 or higher. This is used to set a custom broadcast.
  • Page 22 SD35 User guide V1.0 Physical key definition Volume key To adjust the volume. Power key Press to power on or power off. Scan key Press it to scan the barcode. Home key Press it to go to the home screen. Resent key View and switch tasks.
  • Page 23 SD35 User guide V1.0 to use the virtual keyboard. In the case of blind pressing, set the left side To delete the key, it can be customized as "67", which stands for "BackSpace", which can be used to quickly delete the physical keys. Select common key:For the convenience of the customers,some shortcut functions are listed separately.For example, HOME, SLEEP, WAKEUP, POWER, F1-F8, etc., quickly select without entering key values.
  • Page 24 SD35 User guide V1.0 Select Application:Select application,you can quickly start an installed app on your device,including customer applications,system applications.By setting a key,selects the application that needs to be started,and start it with one key.After selecting,press the corresponding button to start the application.Currently,only short-press is supported,an long-press is not supported.
  • Page 25 SD35 User guide V1.0 Restore the current Restore all key key settings settings Entering home page, you can view the the list custom Function list buttons that can supported, view currently configured functions. Click settings->Key Remap,to configure physical keys.

  • Page 26: Reset Options

    SD35 User guide V1.0 Press it to switch between numbers and uppercase and lowercase by pressing the “aA”key. Reset Options Settings->System->Reset Options->Erace all data(factory reset)->reset phone...

  • Page 27: Development Support

    SD35 User guide V1.0 Development Support For secondary development,please refer to the SDK support package attached with the document or contact us. Product parameters Size Length: 184 mm Thickness: 29.8 mm Width: 70 mm...
  • Page 28 SD35 User guide V1.0 Weight About 290g (with battery) (Note: Differences in different functional modules will cause actual weight differences, please refer to the actual product.) IP Code IP65 Color Black Screen Size: 3.5 inches Resolution 640 * 960 Type: IPS Touch screen: 5-point touch screen Processor CPU: Octa-core, 8*2.0 GHz...

  • Page 29: Data Connect

    SD35 User guide V1.0 Front camera : 500MP，FF WWAN Dual SIM dual standby single pass, support for Nano SIM card FDD-LTE：B1/B3/B5/B7 TDD-LTE：B38/B39/B40/B41 TDSCDMA：B34/B39 WCDMA：B1/B2/B5/B8 GSM：B2/B3/B5/B8 CDMA：1x/CDMA2000 BC0 Data connect WI-FI: 802.11a/b/g/n，2.4G & 5G WI-FI hotspot: support Support card reader mode, peer-to-peer mode, card emulation NFC: mode（14443A/B, ISO 15693, NFC）...

  • Page 30: Packing List

    SD35 User guide V1.0 PDF417、QR Code、Data Matrix、etc. Standard Range (SR) Optics Symbology/X-Dim Typical Range* EAN-13 65mm~330mm (13mil) PDF 417 65mm~110mm (6.67mil) Code 39 65mm~150mm (5mil) Data Matrix 50mm~110mm (10mil) QR Code 45mm~140mm (15mil) Sensor Gravity sensor Light sensor Gyroscope sensor Geomagnetic sensor Packing list Standard:...
  • Page 31 Need more info? Contact us or one of Newland EMEA HQ our partners at newland-id.com/partners +31 (0) 345 87 00 33 info@newland-id.com newland-id.com...
