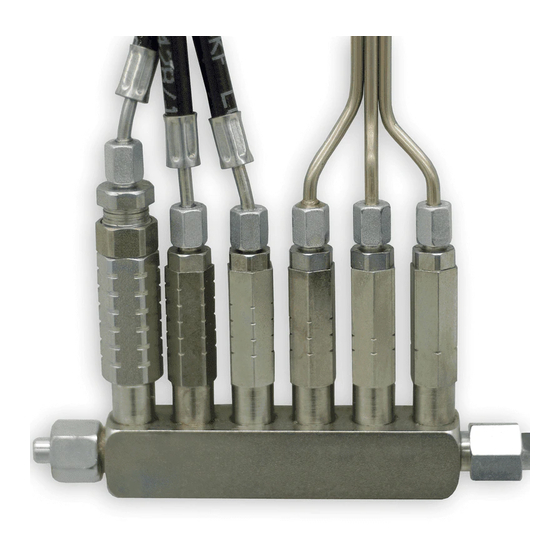

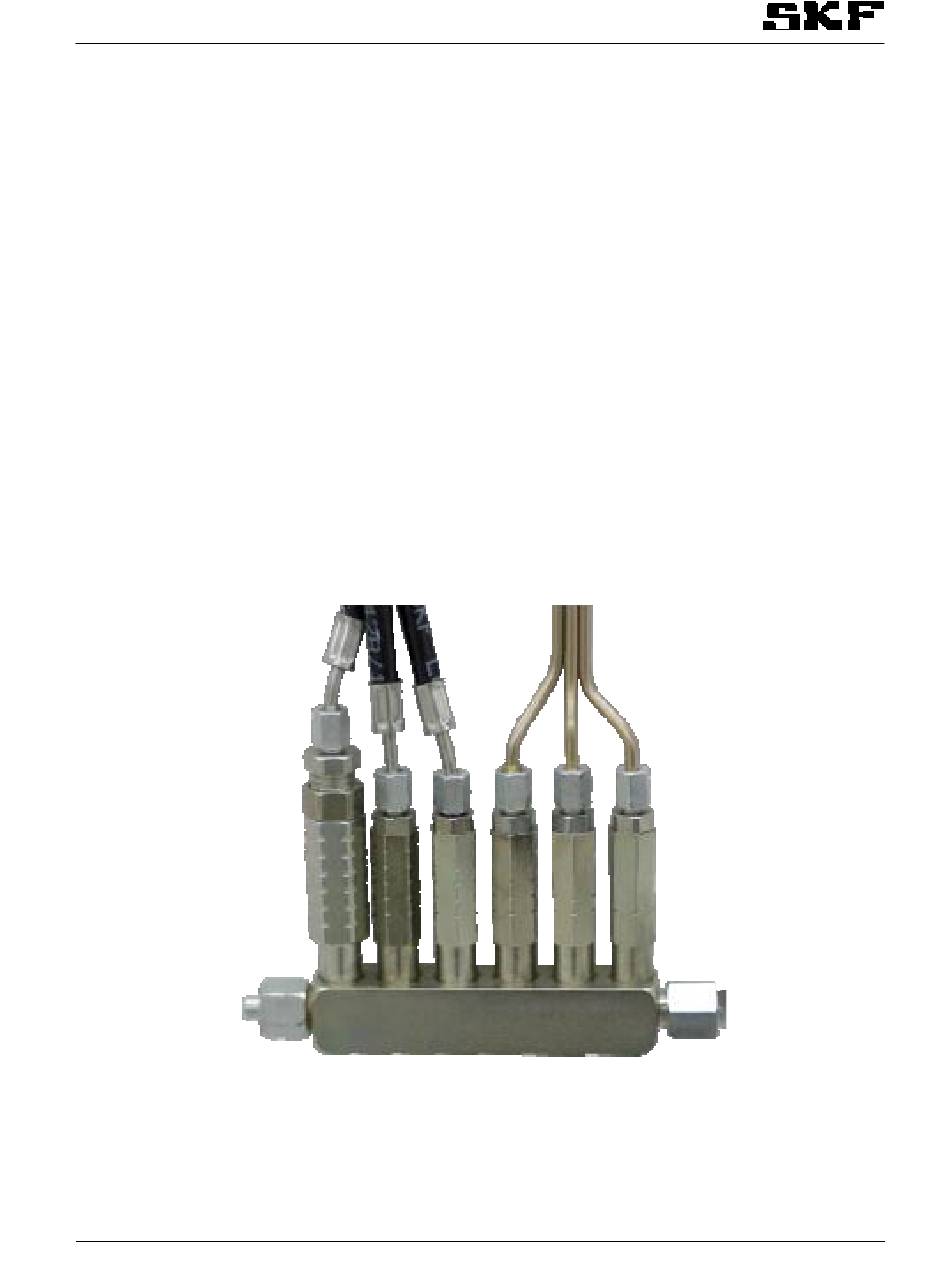

- Page 1 SKF MonoFlex B Doser (Translation from the original operating and maintenance instructions according to EU Di- rective 2006/42/EC) CBDO3AEN.doc 18.03.2014 Rev. 3A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1 General description ............................1 2 Design ................................1 3 Operation ................................ 1 3.1 B doser ......................................1 3.2 The unfastening and fastening of dosers ........................... 1 4 Settings ................................2 4.1 Adjustments to the B6-doser ............................... -
Page 3: General Description
Warning Read and follow the safety precautions and general instructions and also the SKF instruc- tion "Safety and general instructions for lubrication systems."." Failure to follow these instructions could result in serious injury or damage to the lubrication system or the equipment that is lubricated. -
Page 4: Settings
NOTE! When changing the dosers, make sure that there is no pressure in the system. 4 Settings 4.1 Adjustments to the B6-doser 1. Turn open the pipe connector of the doser’s lubrication piping outlet. 2. Turn open the locking nut in the upper part of the doser. 3. -
Page 5: Technical Specification
5 Technical specification 5.1 Technical data Table 2 Technical specifications for dosers Quantity Value Unit Description -25…+80 °C Operating temperature range Max. operation pressure w x h x d 15 x 90 x 15 B1-B5 doser dimensions 17 x 110 x 17 B6 doser dimensions 5.2 Connections Inlet, mounting rail... - Page 6 Example: B2-G1/8-ZN-6 Lubricant outlet, hose connector Ø 6 mm Doser material, Zinc-coated and yellow-passivated steel Fastening of doser to mounting rail G1/8” Lubrication system type, B; Doser size, size 2 Lubricant outlet: pipe connector mm Table 4 Symbols of mounting rails BPLD-XX-YY-U Abbreviation Description...
-
Page 7: Troubleshooting
Note that in addition to the application, operating temperature, rotation speed and operating environment are also relevant factors when choosing the lubricant. For more infor- mation on grease pumpability, please contact Oy SKF Ab. Note! The lubrication disturbances of the critical lubrication points must be repaired immediately, since inade- quate lubrication rapidly damages the equipment or machinery that is lubricated. -
Page 8: Spare Parts
Table 6 Troubleshooting Table Description of malfunction Cause of malfunction Solution No lubrication spot receives lub- Dosers are leaking Replace the dosers ricant (line light A is flashing) A lubrication point does not re- Faulty doser Replace the doser ceive lubricant A lubrication point receives too Leaking doser Replace the doser... - Page 9 Mounting rail type Code BPLD-0202-ZN 11392310 BPLD-0303-ZN 11392320 BPLD-04-ZN 11392330 BPLD-06-ZN 11392340 BPLD-08-ZN 11392350 BPLD-0808-ZN 11392360 BPLD-02-S 11392400 BPLD-0303-S 11392750 BPLD-04-S 11392500 BPLD-06-S 11392600 BPLD-0202-ZN-U 12800420 BPLD-0303-ZN-U 12800430 BPLD-04-ZN-U 12800400 BPLD-06-ZN-U 12800410 CBDO3AEN.doc 18.03.2014 Rev. 3A 7 (8)
-
Page 10: Contact Information
8 Contact information Oy SKF Ab P.O. Box 80 (Teollisuustie 6) FI-40951 Muurame FINLAND Tel. +358 (0) 207 400 800 Fax. +358 (0) 207 400 899 www.skf.com CBDO3AEN.doc 18.03.2014 Rev. 3A 8 (8)
