- Page 1 SKF TKSA 71 & TKSA 71/PRO Instructions for use...
-
Page 3: Table Of Contents
1.4 Pre-alignment ........................ 8 The measuring units ..................9 2.1 Description ........................9 2.2 Handling the measuring units ...................10 2.3 Charging the measuring units ...................11 2.4 Setup techniques ......................12 2.5 Setup ..........................13 Technical specifications ...................14 Original instructions SKF TKSA 71 & TKSA 71/PRO... -
Page 4: Eu Declaration Of Conformity
47CFR: 2011 Part 15 Sub Part B Unintentional Radiators Contains FCC ID: QOQBLE112. Certiication Number: IC: 5123A-BGTBLE112 Manufacturer’s Name, Trade Name or Brand Name: bluegiga Model Name: BLE112-A Nieuwegein, The Netherlands, August 2017 Sébastien David Manager Product Development and Quality SKF TKSA 71 & TKSA 71/PRO... -
Page 5: Safety Recommendations
Safety recommendations • The complete instructions for use are available on SKF.com and within the SKF TKSA 71 app. • Read and follow all warnings in this document before handling and operating the equipment. You can be seriously injured, equipment and data can be damaged if you do not follow the safety warnings. -
Page 6: Introduction
In essence, the objective is to have a straight line through the centers of all of the shafts of the machines. The SKF Shaft Alignment for TKSA 71 is a wireless shaft alignment tool that allows an easy and accurate method for aligning the shafts of a driving machine (e.g. electric motor) and a driven machine (e.g. -
Page 7: Principle Of Operation
SKF TKSA 71 & TKSA 71/PRO... -

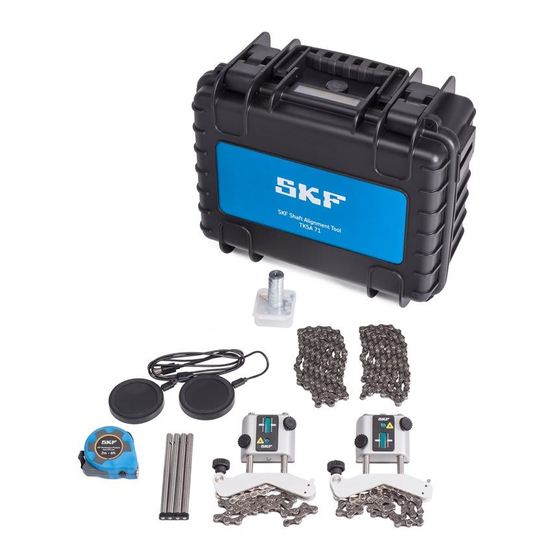

Page 8: Case Content
13. 1 × Rugged IP 67 Carrying case four magnets 7. 1 × Micro USB to USB split charging cable The carrying case is prepared with space for the TKSA DISPLAY2 or other compatible tablets. SKF TKSA 71 & TKSA 71/PRO... - Page 9 15. 2 × Offset brackets charging cable 8. 2 × Wireless charging pads 16. 1 × Industrial Rugged Trolley Carrying Case IP 67 The carrying case is prepared with space for the TKSA DISPLAY2 or other compatible tablets. SKF TKSA 71 & TKSA 71/PRO...
-
Page 10: Pre-Alignment
Ensure that all precautions are taken to prevent the machine from accidentally being started. Lock out / tag out all machines before use. Check: • Shim size • Required tolerances • Coupling play • Pipe strain • Mechanical looseness • Soft foot SKF TKSA 71 & TKSA 71/PRO... -
Page 11: The Measuring Units
3. Charging red LED 7. Measuring unit M 4. Power on green LED 8. Serial number The color functions of the Light Emitting Diodes: • Green: Power on • Red: Charging • Blue: Connected SKF TKSA 71 & TKSA 71/PRO... -
Page 12: Handling The Measuring Units
• The Status LED will turn green when a unit is switched on. • The Connection LED will turn blue when a unit is connected via Bluetooth to the app. SKF TKSA 71 & TKSA 71/PRO... -
Page 13: Charging The Measuring Units
• Leave charging until the Red LED on the measuring unit turns OFF (about 3 hours for an empty battery). • Charging the measuring units for 10 minutes will allow for 1 hour usage. SKF TKSA 71 & TKSA 71/PRO... -
Page 14: Setup Techniques
Mount the four neodymium magnets and the shaft bracket can be used as a magnetic bracket. Align both ixtures tangentially on the coupling by using the shaft brackets, or the magnetic surface of the magnets. SKF TKSA 71 & TKSA 71/PRO... -
Page 15: Setup
M target. Tighten the measuring units and brackets in place with the four locking knobs. The laser of the M unit can be adjusted with the adjustment knob at the top of the unit, to the center of the S target. SKF TKSA 71 & TKSA 71/PRO... -
Page 16: Technical Specifications
Touch, iPhone SE, Galaxy S6 or above (all not included) Software/ Apple AppStore or on Google Play Store App update Operating system Apple iOS 9 or Android OS 4.4.2 (and above) requirements SKF TKSA 71 & TKSA 71/PRO... - Page 17 365 × 295 × 170 mm 610 × 430 × 265 mm dimensions (14.4 × 11.6 × 6.7 in) (24 × 16.9 × 10.4 in.) Total weight 3,9 kg 12,5 kg (incl. case) (8.6 lbs) (27.6 lbs) SKF TKSA 71 & TKSA 71/PRO...
- Page 18 1 × Printed Quick Start Guide 1 × Printed Quick Start Guide (English) (English) 1 × Industrial Rugged 1 × Industrial Rugged Trolley Carrying Case IP 67 Carrying Case IP 67 SKF TKSA 71 & TKSA 71/PRO...
- Page 19 2 × Wireless charging pods for TKSA 71 and 71/PRO incl. split USB cable TKSA 71-M 1 × TKSA 71 M Measuring Unit (incl. Calib. Certif.) TKSA 71-S 1 × TKSA 71 S Measuring Unit (incl. Calib. Certif.) SKF TKSA 71 & TKSA 71/PRO...
- Page 20 | mapro.skf.com | skf.com/mount | skf.com/alignment ® SKF is a registered trademark of the SKF Group. © SKF Group 2017 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy of the information contained in this publication but no liability can be accepted for any loss or damage whether direct, indirect or consequential arising out of the use of the information contained herein.
