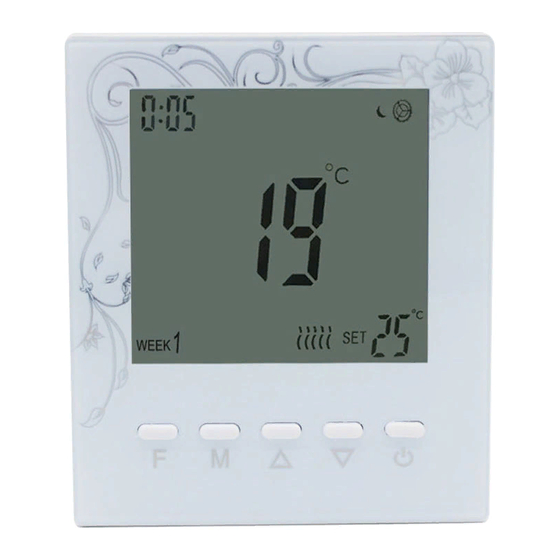

HOTOWELL HTW-HT03 Series Quick Start Manual

General
HTW-61-CH06 heating thermostat is powered by 2*AA batteries, working as below
logic:
--the room temperature lower than setting, output turns on
--the room temperature higher than setting, output turns off
Features
Display and set the room temperature
Six daily programmable time settings, Mondays to Sundays
Two work mode switchover: (programmable, non-programmable )
Display temperature offset
Anti-freezing protection (OPTION)
Memory function: parameters are permanently held in memory and retained
during power outages. (OPTION)
Specification
Temperature setting range (5-35
Room temp differential: -6 ℃ ~ 6 ℃
Temperature sensor: NTC
Temperature accuracy: +/-1
℃
Power supply: 2AA batteries
Display and Buttons
℃ ) , factory default:22 ℃
a djustable (factory setting-2 ℃ ）
Operation
Button
F
TIME Adjust current time
M
MENU Switch programmable or non-programmable mode.
UP Increase the setting temp. or value
DOWN Decrease the setting temp. or value
POWER Switch on / off
1. Press "F" can adjust the time. Press the " " or " " button to adjust the
value of time and day.
2. Both press "M" and " " for 3s to lock or unlock the button. If lock, LOC will
display.
3. Programmable setting: Press "F" for 3 seconds to set the actual time and
events per day, and press the " " or " " button to adjust the value of
time and temperature. The periods and temperatures can be changed
according to requirement. The time schedule default set as below:
1 2
Week
Time / ℃ Time / ℃ Time /
Mon. 6:00 / 20 7:30 / 15 11:30 / 20
Tue. 6:00 / 20 7:30 / 15 11:30 / 20
Wed. 6:00 / 20 7:30 / 15 11:30 / 20
Thu. 6:00 / 20 7:30 / 15 11:30 / 20
Fri. 6:00 / 20 7:30 / 15 11:30 / 20
Sat. 6:00 / 20 7:30 / 15 11:30 / 20
Sun. 6:00 / 20 7:30 / 15 11:30 / 20
Note: when the setting temperature lower than 1
"OF" and in the period the output is off.
1/2
HTW-61-CH06 Heating Thermostat
Reference No.:HTW-HT03 Series
Function
Time schedule
3 4 5
℃ Time / ℃ Time / ℃ Time /
14:00 /15 17:00 /20 22:00 /15
14:00 /15 17:00 /20 22:00 /15
14:00 /15 17:00 /20 22:00 /15
14:00 /15 17:00 /20 22:00 /15
14:00 /15 17:00 /20 22:00 /15
14:00 /15 17:00 /20 22:00 /15
14:00 /15 17:00 /20 22:00 /15
℃ , the set temperature display
6
℃
