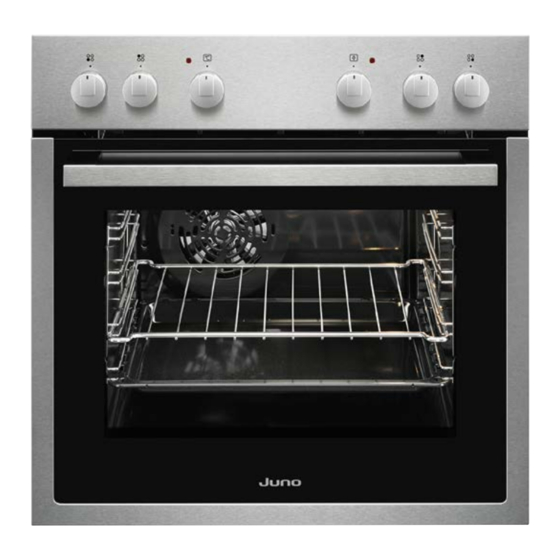

JUNO JH070B9 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
User Manual
Oven
JH070B9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JH070B9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JUNO JH070B9

Summary of Contents for JUNO JH070B9

  • Page 1 User Manual Oven JH070B9...

  • Page 2: Table Of Contents

    CONTENTS Safety information Additional functions Safety instructions Hints and tips Product description Care and cleaning Before first use Troubleshooting Daily use Installation Using the accessories Energy efficiency Subject to change without notice. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions.

  • Page 3: Safety Instructions

    General Safety Only a qualified person must install this appliance and • replace the cable. The control panel must be connected to specified heating • unit with matching colours of connectors, to avoid possible hazard. WARNING: The appliance and its accessible parts •...
  • Page 4 • Keep the minimum distance from other fuses removed from the holder), earth appliances and units. leakage trips and contactors. • Install the appliance in a safe and • The electrical installation must have an suitable place that meets installation isolation device which lets you requirements.
  • Page 5 – do not put ovenware or other • Clean the appliance with a moist soft objects in the appliance directly on cloth. Only use neutral detergents. Do the bottom. not use any abrasive products, – do not put aluminium foil directly on abrasive cleaning pads, solvents or the bottom of cavity of the metal objects.

  • Page 6: Product Description

    PRODUCT DESCRIPTION General overview Control panel Knobs for the hob Power lamp / symbol Knob for the heating functions Control knob (for the temperature) Temperature indicator / symbol Air vents for the cooling fan Heating element Lamp Shelf support, removable Shelf positions Accessories •...
  • Page 7 Oven Functions Oven Application function Oven Application function This function is designed to save energy during cooking. The oven is off. For the cooking instructions Moist refer to "Hints and tips" Baking Off posi‐ chapter, Moist Baking. The tion oven door should be closed during cooking so that the To roast or roast and bake function is not interrupted...

  • Page 8: Using The Accessories

    Heat settings Using the double zone (if applicable) Knob indication Function To activate the double zone, Off position turn the knob clockwise. Do not turn it through the stop position. 1 - 9 Heat settings 1. Turn the knob clockwise to position 9. Double zone switch 2.

  • Page 9: Additional Functions

    ADDITIONAL FUNCTIONS Cooling fan dangerous overheating. To prevent this, the oven has a safety thermostat which When the oven operates, the cooling fan interrupts the power supply. The oven turns on automatically to keep the turns on again automatically when the surfaces of the oven cool.
  • Page 10 Baking and roasting table Cakes Food Top / Bottom Heat Fan Cooking Time Com‐ (min) ments Temper‐ Shelf po‐ Temper‐ Shelf po‐ ature sition ature sition (°C) (°C) Whisked 2 (1 and 45 - 60 In a cake recipes mould Short‐...
  • Page 11 Food Top / Bottom Heat Fan Cooking Time Com‐ (min) ments Temper‐ Shelf po‐ Temper‐ Shelf po‐ ature sition ature sition (°C) (°C) 3 (1 and 30 - 35 In a bak‐ Biscuits ing tray Merin‐ 35 - 40 In a bak‐ gues ing tray 80 - 100...
  • Page 12 Food Top / Bottom Heat Fan Cooking Time Com‐ (min) ments Temper‐ Shelf po‐ Temper‐ Shelf po‐ ature sition ature sition (°C) (°C) Bread 2 (1 and 25 - 40 6 - 8 rolls in a bak‐ rolls ing tray 20 - 30 On a Pizza...
  • Page 13 Meat Food Top / Bottom Heat Fan Cooking Time Com‐ (min) ments Temper‐ Shelf po‐ Temper‐ Shelf po‐ ature sition ature sition (°C) (°C) Beef 50 - 70 On a wire shelf and a deep Pork 90 - 120 On a wire shelf and a deep Veal...
  • Page 14 Food Top / Bottom Heat Fan Cooking Time Com‐ (min) ments Temper‐ Shelf po‐ Temper‐ Shelf po‐ ature sition ature sition (°C) (°C) Hare 150 - 200 Cut in pieces Pheasant 90 - 120 Whole Fish Food Top / Bottom Heat Fan Cooking Time Com‐...
  • Page 15 Food Quantity Time (min) Pieces Quantity 1st side 2nd side (kg) Toast 4 - 6 2 - 4 2 - 3 Turbo Grilling Use the third shelf position. Set the maximum temperature of 200 °C. Food Quantity Time (min) Pieces (kg) 1st side 2nd side...
  • Page 16 Food Accessories Tempera‐ Shelf po‐ Time (min) ture (°C) sition Swiss roll baking tray or dripping 30 - 40 Brownie baking tray or dripping 30 - 40 Soufflè, 6 ceramic ramekins on 30 - 40 pieces wire shelf Sponge flan flan base tin on wire shelf 20 - 30 base...
  • Page 17 Food Accessories Tempera‐ Shelf po‐ Time (min) ture (°C) sition Vegetables, baking tray or dripping 35 - 40 mediterrean 0.7 kg Information for test institutes Tests according to IEC 60350-1. Food Function Acces‐ Tem‐ Time (min) Comments sories pera‐ po‐ ture si‐...

  • Page 18: Care And Cleaning

    CARE AND CLEANING To clean the door gasket, refer to the WARNING! Refer to Safety general information about cleaning. chapters. Removing the shelf supports Notes on cleaning To clean the oven, remove the shelf Clean the front of the oven with a soft supports.
  • Page 19 4. Put the door on a soft cloth on a stable surface. 5. Release the locking system to remove the internal glass panel. 2. Lift and turn the levers fully on both hinges. 6. Turn the two fasteners by 90° and remove them from their seats.

  • Page 20: Troubleshooting

    8. Clean the glass panels with water and 1. Turn off the oven. soap. Dry the glass panels carefully. Wait until the oven is cooled down. Do not clean the glass panels in the 2. Disconnect the oven from the mains. dishwasher.

  • Page 21: Installation

    Service data on the front frame of the oven cavity. Do not remove the rating plate from the oven If you cannot find a solution to the problem cavity. yourself, contact your dealer or an Authorised Service Centre. The necessary data for the service centre is on the rating plate.
  • Page 22 Electrical installation L 1 – 2 – 3 = phase cables N 4 = neutral cable The manufacturer is not responsible if you do not follow = earth cable the safety precautions from the If the mains voltage is different, rearrange Safety chapters.

  • Page 23: Energy Efficiency

    ENERGY EFFICIENCY Product Fiche and information according to EU 65-66/2014 Supplier's name Juno Model identification JH070B9 Energy Efficiency Index 94.9 Energy efficiency class Energy consumption with a standard load, conventional 0.83 kWh/cycle mode Energy consumption with a standard load, fan-forced 0.75 kWh/cycle...
  • Page 24 ENVIRONMENTAL CONCERNS not dispose of appliances marked with the Recycle materials with the symbol . Put symbol with the household waste. the packaging in relevant containers to Return the product to your local recycling recycle it. Help protect the environment facility or contact your municipal office.
  • Page 28 867348424-A-462018...
