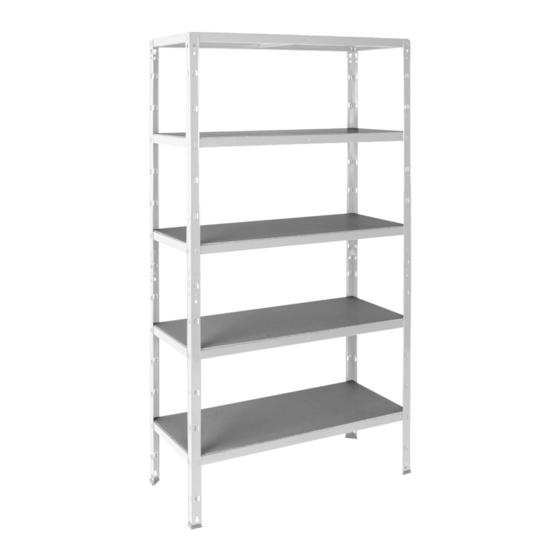

- Page 1 5-SHELF BOLTLESS SHELVING UNITS MODEL NO: CSR5100, CSR5175 & CSL5265 PART NO: SEE TABLE PAGE 2 ASSEMBLY INSTRUCTIONS GC0815...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Shelving Unit. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 INVENTORY Description Quantity Corner Post Shelf Long Beam Short Beam Centre Beam Post Joining Insert Plastic End Cap Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 4 ASSEMBLY ADVICE 1. Assemble on a strong, level surface. Avoid assembly on a domestic carpet. 2. Use a cloth or softwood block to protect the surface finish of the product when using a mallet. Strike the flat surface of each beam to prevent damage to the beam.
- Page 5 that the corresponding beams are at the same height as in Fig 2. 2. Join the two end assemblies together with the long beams (C) as in Fig 3. 3. Connect the centre support beams (e) to the long beams (C) by bending the flexible tabs to 90 degrees and slotting them into place as shown in Fig 4.
- Page 6 7. Insert the plastic end caps (G) into the end of each corner post (A). We recommend that the shelvng be secured to an adjacent wall using typical wall insert plugs and screws (not supplied) aligned with the assembly slots in the corner posts.
- Page 7 Model Dimensions Weight Load per (W x D x H) (Empty) shelf (evenly distributed) CSR5100 Units 900 x 400 x 1800 mm 15.6 kg 100 kg CSR5175/30 Units 900 x 300 x 1800 mm 14.8 kg 175 kg CSR5175/45 Units...
