Summary of Contents for Clarke CSR4350LG

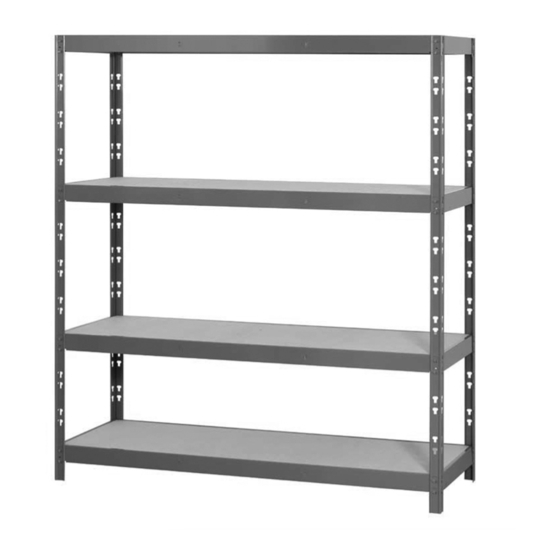

- Page 1 4-SHELF BOLTLESS SHELVING UNITS MODEL NO: CSR4350 PART NO: SEE TABLE PAGE 2 ASSEMBLY INSTRUCTIONS GC0417...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Shelving Unit. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 INVENTORY Description Quantity Corner Post Long Beam Short Beam Support Beam Shelf Foot Post Joining Insert Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 4 ASSEMBLY INSTRUCTIONS 1. Assemble on a strong, level surface. Avoid assembly on a domestic carpet. 2. Use a cloth or softwood block to protect the surface finish of the product when using a mallet. Strike the flat surface of each beam to prevent damage to the beam.
- Page 5 3. Join the two end assemblies together with the long beams (B). • The beams should be spaced equally with the top beam level with the top of the posts. 4. Connect the support beams (D) to the long beams. First bend the flexible tabs 90 degrees to pass them through the slots in the long beams.
- Page 6 9. Lay the shelf panels (E) into position. • Always assemble the top shelf at the highest possible position. 10. Insert the foot (F) into the end of each post (A). 11. We recommend that the racking be secured to an adjacent wall using typical wall insert plugs and screws (not supplied), aligned with the assembly slots in the posts.
-
Page 7: Specifications
GENERAL SAFETY RULES 1. Always maintain equipment in good condition for the best/safest performance. 2. Never exceed the maximum load for these shelving units as stated in the specification. 3. Never use these units if they are damaged. 4. Always load small, stable items on the top shelves, heavier and bulky items should be stored on the lower shelves.
