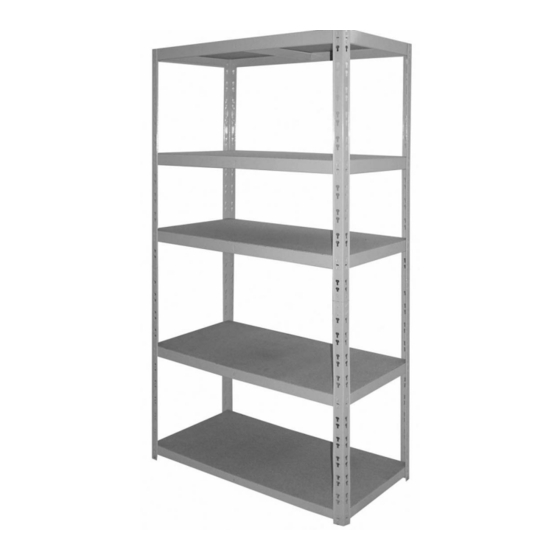

5-SHELF BOLTLESS SHELVING UNITS
MODEL NO: CSR5265
PART NO: SEE TABLE PAGE 2
Assembly INSTRUCTIONS
GC0915
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clarke CSR5265
Summary of Contents for Clarke CSR5265
- Page 1 5-SHELF BOLTLESS SHELVING UNITS MODEL NO: CSR5265 PART NO: SEE TABLE PAGE 2 ASSEMBLY INSTRUCTIONS GC0915...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Shelving Unit. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 INVENTORY Description Quantity Corner Post Shelf Long Beam Short Beam Centre Beam Post Joining Insert Plastic End Cap Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 4 ASSEMBLY ADVICE 1. Assemble on a strong, level surface. Avoid assembly on a domestic carpet. 2. Use a cloth or softwood block to protect the surface finish of the product when using a mallet. Strike the flat surface of each beam to prevent damage to the beam.
- Page 5 1. Use the short beams (D) to connect the front and rear posts together. NOTE: The edge with the wider flange should be installed uppermost to support the shelf. • Repeat this again to create the other end assembly, making sure that the corresponding beams are at the same height.
- Page 6 5. Fit post joining inserts (F) into the posts (A), ensuring that the inserts are fitted with their keyholes to match those of the posts. 6. Construct the upper end assemblies onto the post inserts (F) before adding more long beams and support beams as previously to complete the framework.
-
Page 7: Specifications
GENERAL SAFETY RULES 1. Always maintain equipment in good condition for the best/safest performance. 2. Never exceed the maximum load for these shelving units as stated in the specification. 3. Never use these units if they are damaged. 4. Always load small, stable items on the top shelves, heavier and bulky items should be stored on the lower shelves.
