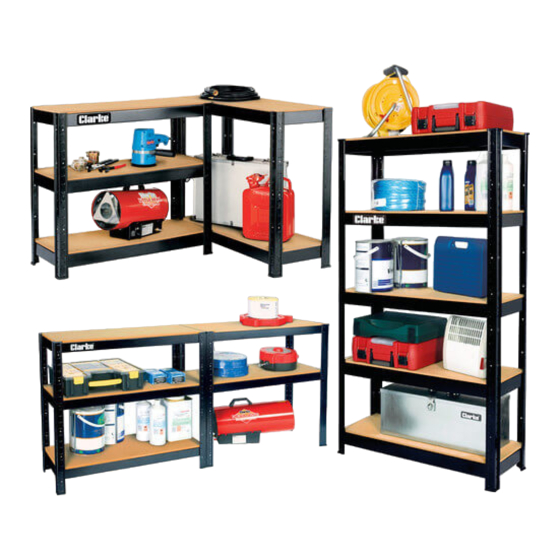

Model No: CSR5150 - Max rated load150kg per shelf (evenly distributed)
Part
Nos: 6600504 (silver), 6600516 (black), 6600506 (red),
6600508 (blue), 6600520 (galvanised)
Model No: CSR5350 - Max rated load 350kg per shelf (evenly distributed)
Part
Nos:6600510 (silver), 6600518 (black), 6600512 (red),
6600514 (blue), 6600522 (galvanised)
CSR 5150 Dims (WDH);-Shelving 800x300x1500mm/Bench Layout 1600x300x750mm.
Product weight 16.7kg
CSR 5350 Dims (WDH);-Shelving 900x400x1800mm/Bench Layout 1800x400x900mm.
Product weight 27.8kg

PARTS INVENTORY CHECKLIST

Shelves ............................................... 5
Short Shelf Supports ......................... 10
Long Shelf Supports . ........................ 10
Angle Leg Sections ........................... 8
Plastic End Protectors ........................ 16
Angle Leg Corner Spacers ................ 4
Connecting Plates ............................8
Nuts and Bolts ................................... 4

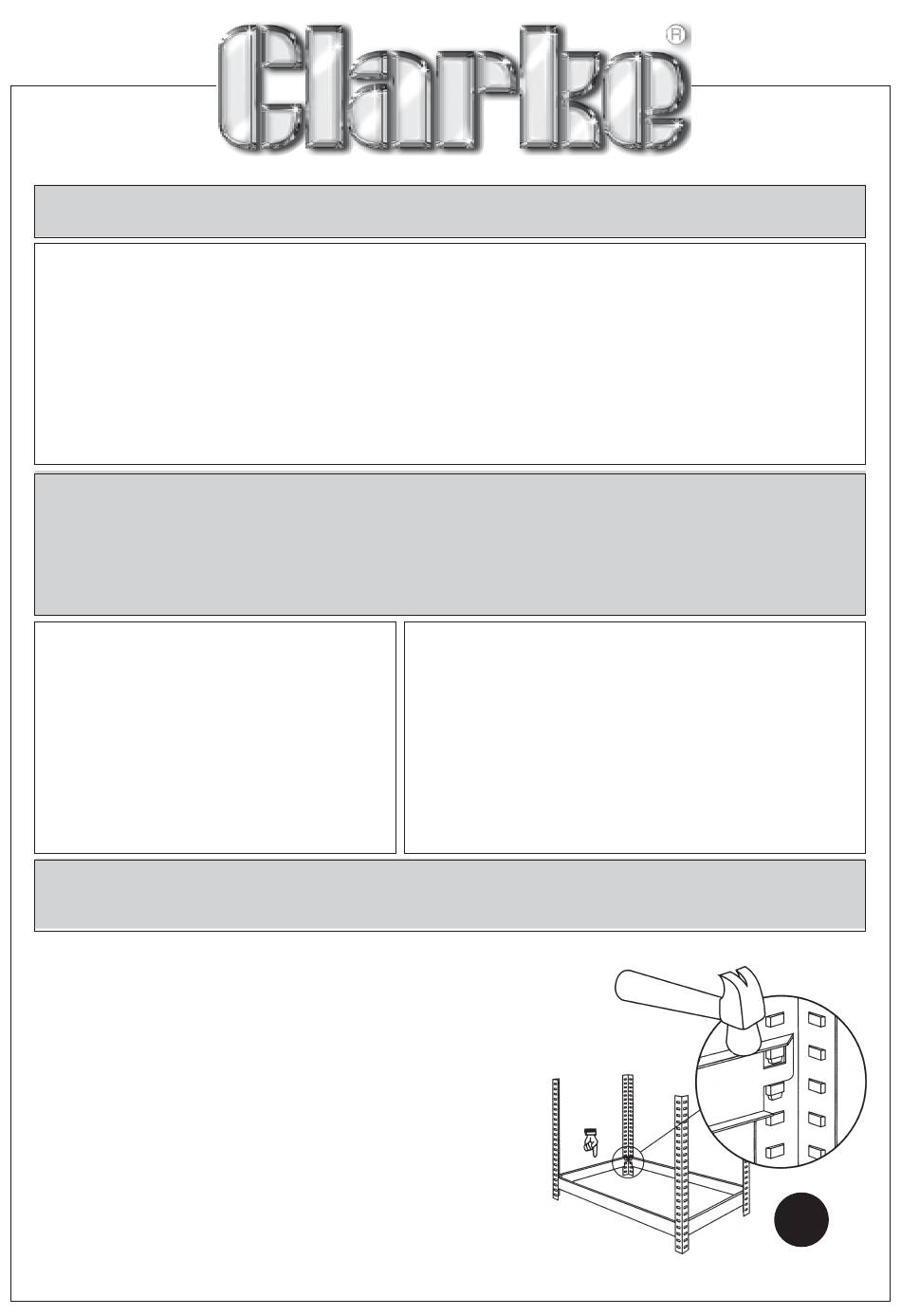

Decide on the position you require the bottom shelf to be.
Fit one short shelf support between the two leg angles.
Repeat this again making sure that the same short shelf support is at
the same height.
Now fit the two long shelf supports matching the two short shelf supports.
Always hammer gently, being sure the shelf support tabs are in
line with the leg angle slots.
If the tabs are out of line, simply bend them to line up either
way to suit.
Do not use force and damage the tabs.
When hammering the shelf supports, always hammer the surface
closest to the angle.
SHELF UNIT

ASSEMBLY INSTRUCTIONS

Please read these instructions
before assembly.
CAUTION: Due to the sharp metal
edges, suitable protective gloves
should be worn during assembly.

TOOLS NEEDED FOR THE JOB

• A hammer or a mallet
• A screwdriver and 10mm spanner (corner
bench only)
1
GC0616

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSR5150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke CSR5150

  • Page 1 SHELF UNIT Model No: CSR5150 - Max rated load150kg per shelf (evenly distributed) Part Nos: 6600504 (silver), 6600516 (black), 6600506 (red), 6600508 (blue), 6600520 (galvanised) Model No: CSR5350 - Max rated load 350kg per shelf (evenly distributed) Part Nos:6600510 (silver), 6600518 (black), 6600512 (red), 6600514 (blue), 6600522 (galvanised) CSR 5150 Dims (WDH);-Shelving 800x300x1500mm/Bench Layout 1600x300x750mm.
  • Page 2 • Your Hammer-Fast shelving should be fastened to the wall where possible with suitable fasteners (not included). • Always place heavier items on the lower shelves. Clarke International, Hemnall Street, Epping, Essex CM16 4LG: Parts & Service - Tel: 020 8988 7400...
