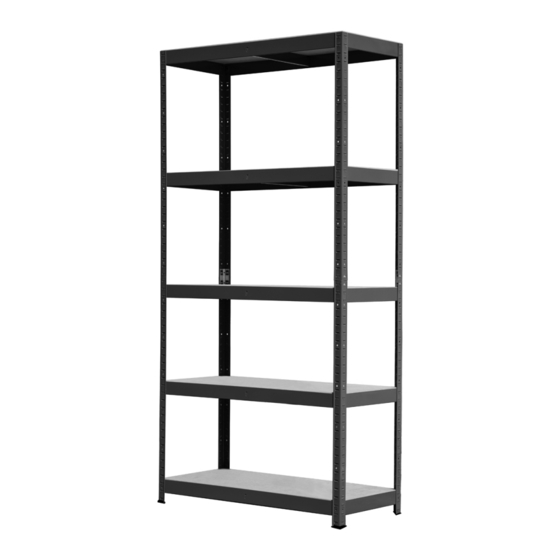

- Page 1 BOLTLESS SHELVING UNITS MODEL NO: CSM5150 & CSM5350 PART NO: SEE TABLE PAGE 2 ASSEMBLY INSTRUCTIONS ORIGINAL INSTRUCTIONS GC06/18 ISS 1...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Shelving Unit. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Assembly Advice
ASSEMBLY ADVICE 1. Assemble on a strong, level surface. Avoid assembly on a domestic carpet. 2. Use a cloth or softwood block to protect the surface finish of the product when using a mallet. Strike the flat surface of each beam to prevent damage to the beam. - Page 4 INVENTORY Description Quantity Post Shelf Long Beam Short Beam Support Beam Post Joining Insert Plastic End Cap Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 5: Tools Required
ASSEMBLY INSTRUCTIONS TOOLS REQUIRED • Rubber mallet or hammer • Protective cloth/wood block ASSEMBLY The tabs of the beams will often enter the slots fully using just firm hand pressure but if they are too tight, you may require a rubber mallet to assist. If so, always use a cloth to protect the product paint finish. - Page 6 3. Join the two end assemblies together with the long beams. 4. Fit post joining inserts into the posts, ensuring that the inserts are fitted with their tabs to match the slots of the posts. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 7 Construct more upper end assemblies onto the post inserts before adding more beams as previously to complete the framework. 5. Connect the support beams to the long beams. First bend the flexible tabs to 90 degrees to pass them through the slots in the long beams. Parts &...
- Page 8 • The tab initially lays flat against the long beam. 6. Next, bend the tab back through 180 degrees to grip the long beam. • Use a screwdriver or similar tool to bend the tabs. 7. Finally bend the tab again through 90 degrees the opposite way, to seat tightly against the support beam.
- Page 9 We recommend that the shelving be secured to an adjacent wall using typical wall insert plugs and screws (not supplied) aligned with the slots in the posts. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 10: General Safety Rules
GENERAL SAFETY RULES 1. Always maintain shelving in good condition for the best/safest performance. 2. Never exceed the maximum load for these shelving units as stated in the specification. 3. Never use these shelving units if they are damaged. 4. Always load small, stable items on the top shelves, heavier and bulky items should be stored on the lower shelves. -
Page 11: Environmental Protection
GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
