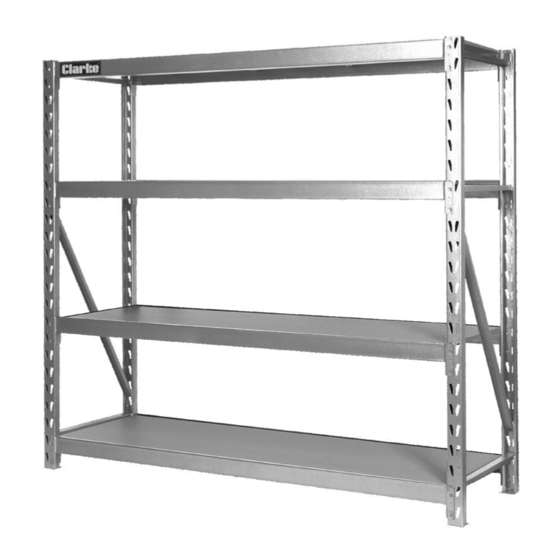

- Page 1 INDUSTRIAL SHELVING MODEL NO: CS4700 & CS4700BO PART NO: 6600502 & 6600610 ASSEMBLY INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0219 - rev 4...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Shelving Unit. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 800 kg (evenly distributed) Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. LIST OF COMPONENTS When unpacking, check for damage and/or shortages etc.
- Page 4 GENERAL SAFETY RULES 1. Always maintain the shelving in good condition for greater safety. 2. Never exceed the maximum load for this product. 3. Never use this product if damaged. 4. Always load small, stable items on the top shelves, heavier and bulky items should be stored on the lower shelves.
- Page 5 ASSEMBLY TIPS 1. Assemble the unit on a strong, level surface. Avoid assembly on soft surfaces. 2. Use a cloth or softwood block to protect the surface finish of the product when using a hammer. Hit the flat surface of each cross-beam to prevent damage to the beam.
- Page 6 3. Repeat this step with the second upright frame (A) at the other end of the beam, making sure that the clips are at the same level. 4. Repeat with the other beam (B), making sure that the beams are level. NOTE: Take care not to strike so hard as to damage the beams.
- Page 7 5. Repeat steps 2 to 4 to attach the next set of beams (B) at the same level to form the second and third shelf frames as shown in fig 2. NOTE: The units are adjustable in 3” increments. 6. Ensure the last two beams (B) are set into the top two keyholes of the upright frames as shown in Fig 3.
