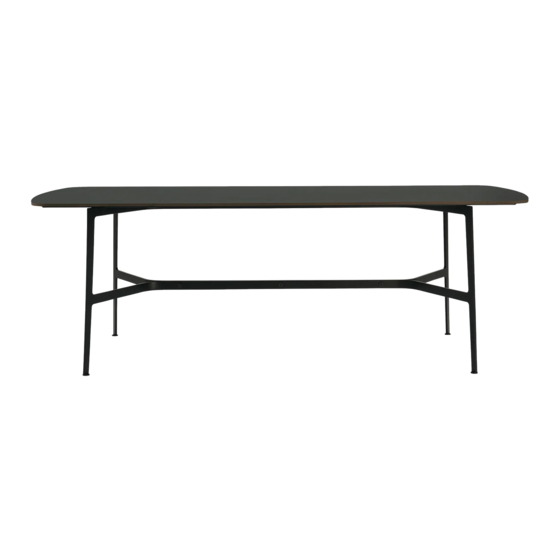

SP01 EILEEN Assembly Instructions Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
EILEEN
DESIGNED BY TOM FEREDAY
ASSEMBLY INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the EILEEN and is the answer not in the manual?

Questions and answers

Related Manuals for SP01 EILEEN

Summary of Contents for SP01 EILEEN

  • Page 1 EILEEN DESIGNED BY TOM FEREDAY ASSEMBLY INSTRUCTIONS...
  • Page 2 DISCLAIMER THE ASSEMBLY INSTRUCTIONS ARE TO BE USED AS A GUIDE SHOWING THE CONCEPT OF THE TABLE. IT WILL NOT BE NECESSARILY IDENTICAL TO THE TABLE YOU HAVE PURCHASED. ENSURE THAT ALL STEPS ARE FOLLOWED IN THE CORRECT ORDER AND THAT NO STEP IS LEFT OUT.
  • Page 3 BOX WITH TOP SET OF LEGS, 12 METAL DISKS, HPL OR WOOD TOP, 6 THREADS, 4 SCREWS, SET OF 4 PRE-ASSEMBLED ONTO FELT FEET AND PLASTIC FEET A METAL STRUCTURE p. 3 © Copyright 2019 SP01 Design. All rights reserved.
  • Page 4 MAKE SURE THAT EH ADJUSTABLE FEET ARE LOOSENED (1). DEPENDING ON THE DESTINATION OF OUR TABLE, PLACE THE FELT FEET OR THE PLASTIC FEET ONTO LEG METAL FEET (2). WE RECOMMEND FELT FOR INDOOR AND PLASTIC FOR OUTDOOR. p. 4 © Copyright 2019 SP01 Design. All rights reserved.
  • Page 5 ASSEMBLE THE SCREWS BY SCREWING ONE SIDE OF THE FILLET INTO THE WASHER (1). KEEP THE REMAING WASHER ASIDE (2), YOU WILL NEED THEM TO FIX THE TWO LEG SIDES TOGETHER. p. 5 © Copyright 2019 SP01 Design. All rights reserved.
  • Page 6 PLACE ONE TABLE LEG FLAT ONTO A BLANKET, THEN PLACE THE SECOND SET OF TABLE LEGS ON TOP. CENTRE THE HOLES AND INSERT THE HALF ASSEMBLED SCREWS. CLOSE THE SCREWS WITH THE REMAINING WASHERS AND TIGHTEN ALL SCREWS GRADUALLY. p. 6 © Copyright 2019 SP01 Design. All rights reserved.
  • Page 7 S P Ø 1 D E S I G N . C O M EILEEN TABLE STRUCTURE ASSEMBLY PLACE THE STRUCTURE ON ITS LEGS, MAKING SURE THAT IT IS STABLE. IF THE TABLE STRUCTURE MOVES TOO MUCH, CHECK AND TIGHTEN ALL THE SCREWS. p. 7 © Copyright 2019 SP01 Design. All rights reserved.

  • Page 8: Top Assembly

    FIX THE TABLE TOP ONTO THE STRUCTURE BY USING THE PROVIDED HARDWARE. DO NOT MOUNT THE TABLE TOP UPSIDE DOWN, AS THE WEIGHT CAN DAMAGE THE TABLE WHEN PUTTING IT INTO ITS POSITION. GRADUALLY TIGHTEN ALL SCREWS. p. 8 © Copyright 2019 SP01 Design. All rights reserved.
  • Page 9 S P Ø 1 D E S I G N . C O M EILEEN TABLE p. 9 © Copyright 2019 SP01 Design. All rights reserved.
