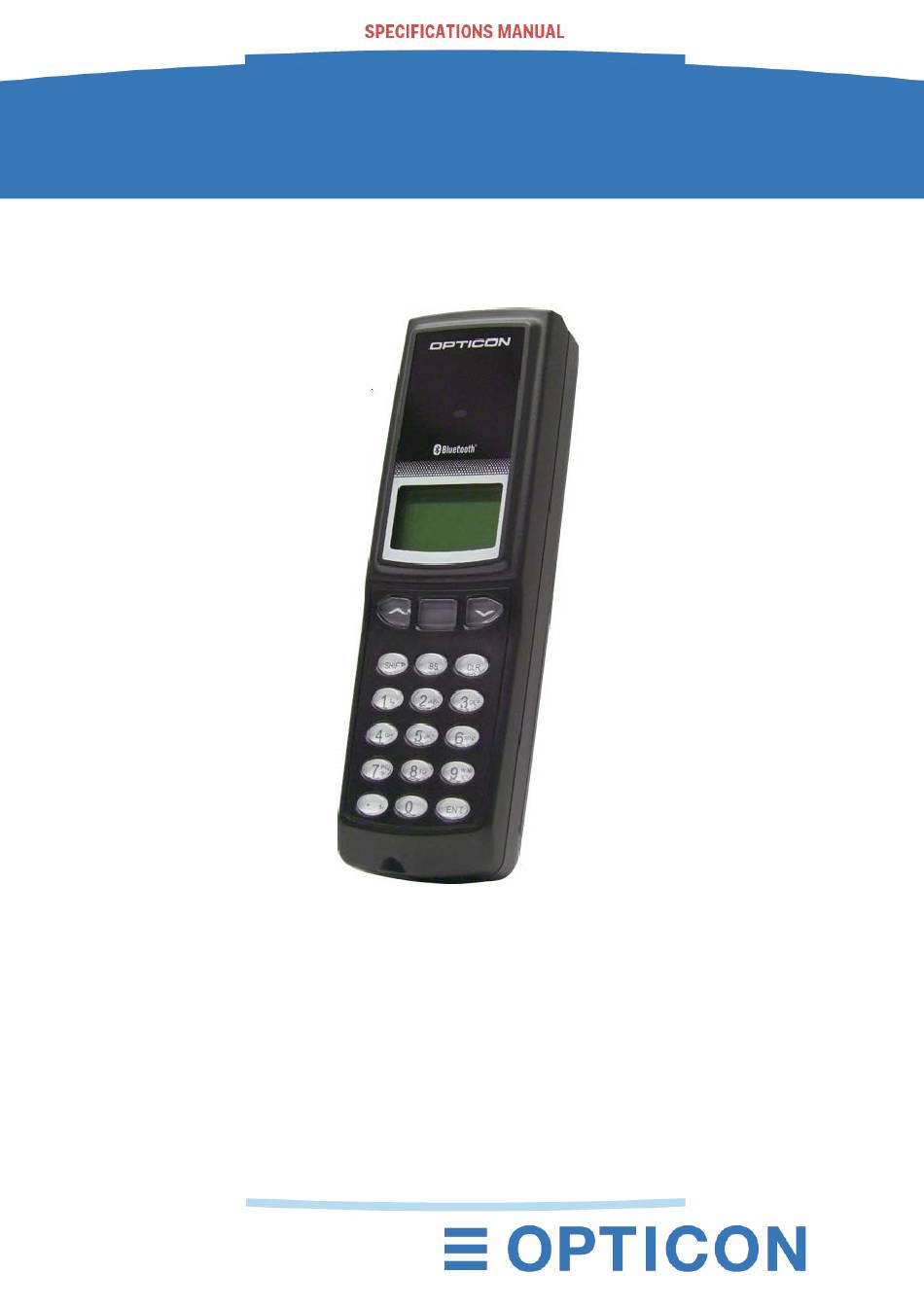

- Page 1 PX-36 V-1.0 PX-36 2D Data Collector with Bluetooth The PX-36 is a Data Collector with a 2D barcode scan engine, Bluetooth communication and time stamp functionality. V-1.0...
- Page 2 OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
- Page 3 PX-36 V-1.0 Revision History Product Name : PX-36 Edition Date Page Section Description of Changes First 2015/08/31 Initial release...
-
Page 4: Table Of Contents
PX-36 V-1.0 Contents Abstract ........................6 Overview ........................6 Basic Specifications ....................7 Ambient Light Immunity conditions ..................9 Electrical Specifications .................... 10 Main Battery ........................... 10 Battery Operating Time and Charging Time (TBD) ............... 10 Mechanical ........................11 Dimensions ..........................11 Weight ............................ - Page 5 Figure 8: Curvature ..........................19 Figure 9: Motion tolerance ........................20 Figure 10: Drop test ..........................22 Figure 11: PX-36 product labels ......................24 Figure 12: Serial number label ......................24 Figure 13: FCC warning label ........................ 25 Figure 14: White box label ........................25 Figure 15: Individual packing .........................
-
Page 6: Abstract
The PX-36 also has a clock function, allowing it to add a time stamp to scanned barcode data. Last but not least, the PX-36 is fully programmable allowing users to write a wide range of applications... -
Page 7: Basic Specifications
PX-36 V-1.0 3 Basic Specifications Item Specification Note 32 bit CISC / 96 MHz FROM (OS only) 512 Kbyte + 32 Kbyte SRAM (OS only) 96 Kbyte FROM (storage) 1 Mbyte For applications For applications & file SRAM (storage) 1 Mbyte... - Page 8 PX-36 V-1.0 Item Specification Note GS1 DataBar, GS1 DataBar Limited, GS1 GS1 DataBar: formerly DataBar Expanded, Composite GS1 DataBar, Symbologies called “RSS” Composite GS1-128, Composite EAN, Composite UPC GS1 DataBar 0.169 mm Minimum resolution Composite Code 0.169 mm PDF417, MicroPDF417, Codablock F, QR...
-
Page 9: Ambient Light Immunity Conditions
PX-36 V-1.0 Item Specification Note Peak Wavelength LED safety IEC 62471-1:2006 Exempt Group 624 nm EN60950-1:2005 Product safety IEC60950-1:2006 EN 55022:2010 EN 301 489-1 V1.9.2 For residential, EN 301 489-17 V2.1.1 commercial and light- industrial environments EN 300 328 V1.8.1... -
Page 10: Electrical Specifications
PX-36 V-1.0 4 Electrical Specifications 4.1 Main Battery The main battery is a lithium-ion secondary battery. Nominal capacity: 1880 mAh Battery charging time: Approximately 7 hours Battery type: NP120, without leads 4.2 Battery Operating Time and Charging Time (TBD) Parameter... -
Page 11: Mechanical
PX-36 V-1.0 5 Mechanical 5.1 Dimensions W 44.0 mm x D 25.0 mm x H 140.0 mm 5.2 Weight 115 g (max.), excluding the lithium-ion battery 5.3 Color Black Figure 2: Mechanical drawing... -
Page 12: Detailed View
Scanning window Window for the CMOS camera Product Label Place for serial label with regulatory logo’s Terminals used to charge the lithium-ion battery in the PX-36 Charging contacts when it is placed into a dedicated cradle Trigger key This key triggers the 2D barcode reader. -
Page 13: Interface Specifications
Encryption supported 6.2 IrDA 6.2.1 Specifications The PX-36 features an IrDA module that is compliant to the ver1.2 low power SIR specification. 6.2.2 Transmission Speed Default transmission speed is set at 115.2 kbps. However, you can easily change the transmission rate to 57.6 kbps, 38.4 kbps, 19.2 kbps, 9600 bps, 4800 bps, or 2400 bps. -
Page 14: Aiming Pattern
PX-36 V-1.0 7.2 Aiming Pattern The aiming pattern is used for the following purposes: 1. Light source to indicate the appropriate reading range. 2. Light source for auto trigger operation. The specifications for the aiming pattern are as follows: ・... -
Page 15: Barcode Reading/Decoding Specifications
10 readings. Bar code test sample Refer to section 7.4.2 for details. (1D and 2D) <Bar code labels used> 1D codes: Opticon test sheet 2D codes (incl. GS1 Databar, and stacked codes): Labels printed by a dedicated barcode printer... -
Page 16: Bar Code Test Sample
PX-36 V-1.0 7.4.2 Bar Code Test Sample 1D Bar Codes <Code 39> Resolution Symbology Size (mm) No. of Digits 9 × 10 0.127 mm 32 × 10 0.20 mm Code 39 100 × 10 0.254 mm 32.5 × 12 0.508 mm 36 ×... -
Page 17: Scan Area And Depth Of Field
PX-36 V-1.0 7.4.3 Scan Area and Depth of Field The depth of field is measured from the edge of the data collector. The scanning range is within the circular arc centered on the scan origin. Figure 5: Scan Area and Depth of Field... -
Page 18: Printed Contrast Signal (Pcs)
PX-36 V-1.0 7.4.4 Printed Contrast Signal (PCS) 0.2 or higher <Conditions> 12% and higher (70% or higher reflectivity of space and quiet zone) Distance 105 mm from the front edge of the scanner Bar code UPC (resolution 0.33 mm, PCS 0.2) specified in Section 8.1. -
Page 19: Pitch, Skew And Tilt
PX-36 V-1.0 7.4.7 Pitch, Skew and Tilt α = ±50° Pitch β = ±50° Skew γ = ±180° Tilt <Conditions> Bar code UPC (resolution 0.33 mm) specified in Chapter 7.4.2 Distance 105 mm from the front edge of the scanner R = ∞... -
Page 20: Motion Tolerance
PX-36 V-1.0 7.4.9 Motion Tolerance UPC bar codes moving at 2m/s can be read for 100%. <Conditions> Temperature / Humidity Room temperature / room humidity Ambient light 500 ~ 1000 lx Distance 105 mm from the front edge of the scanner 0.9 or higher... -
Page 21: Environmental Specifications
PX-36 V-1.0 8 Environmental Specifications 8.1 Temperature Scanning performance is guaranteed when the range of ambient temperature around the scanner is the following values: Operating temperature 0 ~ 50 °C Storage temperature -20 ~ 60 °C 8.2 Humidity Scanning performance is guaranteed when the range of ambient humidity around the scanner is the... -
Page 22: Drop Impact Strength (Without Packaging)
PX-36 V-1.0 Drop Impact Strength (without packaging) There shall be no sign of malfunction after the following drop test. Drop test: Drop the scanner 12 times in total (2 times at the 6 positions as indicated) from a height of 150 cm onto a concrete floor. -
Page 23: Regulatory Compliance
PX-36 V-1.0 Regulatory Compliance LED Safety IEC 62471:2006 Exempt Group 9.2 Product Safety EN60950-1:2006 IEC60950-1:2005 9.3 EMC R&TTE Directive ・EN 55022:2010 ・EN 301 489-1 V1.9.2 ・EN 301 489-17 V2.1.1 ・EN 300 328 V1.9.1 FCC Part 15 Subpart B Class B Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. -
Page 24: Labeling
PX-36 V-1.0 10 Labeling The PX-36 has two labels, a serial number label and an FCC warning label. Figure 11: PX-36 product labels 10.1 Serial Number label Detailed drawing: Figure 12: Serial number label Label dimension: 31.5mm x 24.5mm. Tolerance ± 0.3mm Label material: Consist of base + laminate protection against wear. -
Page 25: Fcc Warning Label
Article number: Standard code 39 + human readable text Bar code data: 13749 Serial number: Standard code 39 + human readable text Bar code data: The serial number. This should match that of the PX-36 Figure 14: White box label... -
Page 26: Packaging Specifications
11.1 Individual Packaging Specification (TBD) Put the PX-36 in a protective foam bag and place it in an individual packing box, then place the accessories into the box. Close the box and affix a label to the side of the box. Size of the... -
Page 27: Collective Packaging Specification
PX-36 V-1.0 11.3 Collective Packaging Specification Put 150 individually packaged data collectors in a collective packing box. The box can hold 162 boxes, so there will be some empty space in the shipping box. That should be filled by packing peanuts. -
Page 28: Safety Precautions
PX-36 V-1.0 12 Safety precautions Handle this product carefully. Do not deliberately subject it to any of the following. 12.1 Shock Do not throw or drop the data collector. Do not drop or put heavy items on this product. 12.2 Temperature Conditions Do not use the data collector at temperatures outside the specified range.
