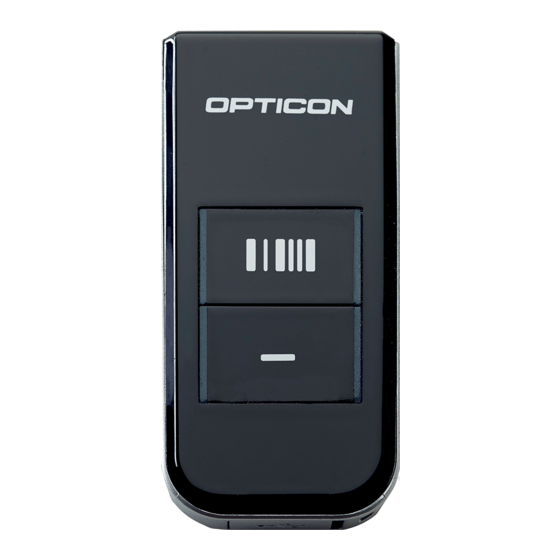

The PX-20 is a portable data collector with a 2D barcode
Specifications Manual
scanner. Scanned and stored data can be transmitted to the
host via the USB interface, or via Bluetooth.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Opticon PX-20

Summary of Contents for Opticon PX-20

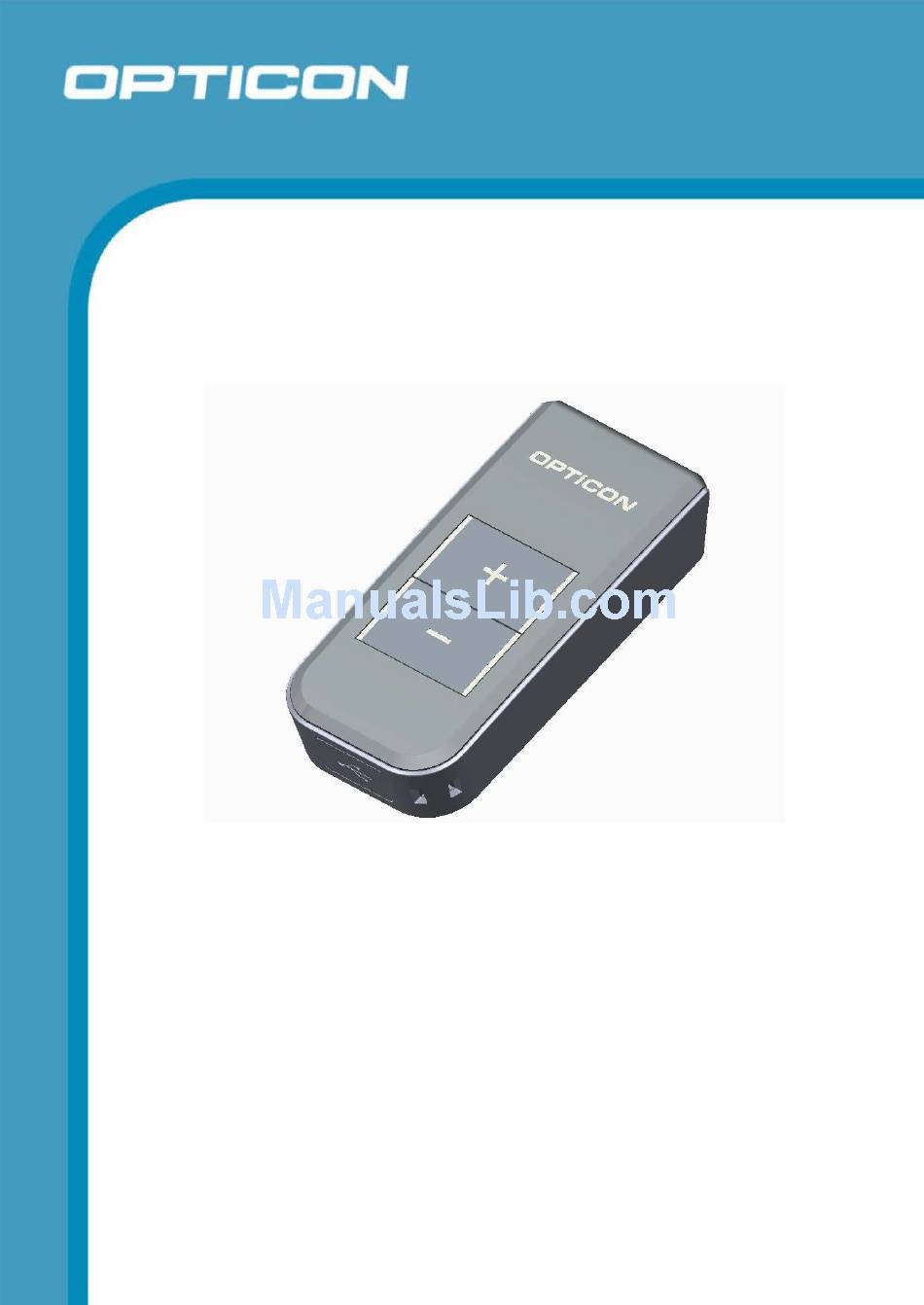

  • Page 1 Portable 2D Data Collector PX-20 The PX-20 is a portable data collector with a 2D barcode Specifications Manual scanner. Scanned and stored data can be transmitted to the host via the USB interface, or via Bluetooth.
  • Page 2 Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by modifications made by a customer.

  • Page 3: Table Of Contents

    Opticon PX-20 Specifications Manual Contents 1. Abstract ............................. 5 2. Overview ........................... 5 3. Physical Features ........................6 3.1. Dimensions ........................6 3.2. Weight ..........................7 3.3. Color ..........................7 4. Environmental Specifications....................7 4.1. Operating Temperature and Humidity................7 4.2.
  • Page 4 Opticon PX-20 Specifications Manual 12. Packaging Specifications....................... 21 12.1. Individual Packaging Specification................... 21 12.2. Collective Packaging Specification .................. 22 13. Durability ..........................23 13.1. Drop Test ........................23 13.2. Dust and water Proof ....................... 23 14. Regulatory Compliance......................24 14.1. Product Safety......................... 24 14.2.

  • Page 5: Abstract

    This manual provides specifications for the PX-20 portable 2D barcode data collector. 2. Overview The PX-20 is a very compact data collector with a built-in 2D barcode scanner. Due to its compact size and its Bluetooth capabilities, the PX-20 is the ideal companion scanner for mobile devices like the iPhone/iPad and Android telephones and tablets.

  • Page 6: Physical Features

    Opticon PX-20 Specifications Manual 3. Physical Features 3.1. Dimensions (W) 36 x (L) 74 x (D) 16 mm Figure 1: Dimensions...

  • Page 7: Weight

    Opticon PX-20 Specifications Manual 3.2. Weight 40 g (estimated) 3.3. Color Black 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -10 to 50° C (Charging temperature range 0 to 45° C) Humidity: 20% to 90% RH 4.2. Storage Temperature and Humidity Temperature: -20 to 60°...

  • Page 8: Component Specification

    5. Component Specification Item Specifications Notes 2D Engine MDI-3100 Opticon’s 2D imager with integrated high speed decoder Application Renesas RX62N 96 MHz Clock speed processor: Barcode storage + >50,000 barcodes + time stamp. Might be used for 1 MByte serial flash other purpose as well, depending on the users application.

  • Page 9: Electrical Characteristics

    Opticon PX-20 Specifications Manual 6.3. Electrical Characteristics Parameter Symbol Unit While Scanning While in Standby Operating While Charging CHG1 current μA When OFF Voltage 2.75 Rated capacity Battery Charging current specifications CHG2 Charging time hour Scans when fully charged *1...

  • Page 10: Optical Specifications

    Opticon PX-20 Specifications Manual 7. Optical Specifications Item Characteristics Scan method CMOS area sensor (black and white) Nr of effective pixels 752 (H) x 480 (V) Dots Image capture speed (*1) 60 fps Frames per second Focal distance 130 mm °...

  • Page 11: Barcode Reader Technical Specifications

    PX-20 Specifications Manual 8. Barcode reader Technical Specifications Scanning is done by pointing the PX-20’s aiming light to the center of a bar code for scanning. The conditions for technical specifications are as follows, unless otherwise specified in each section.

  • Page 12: Bar Code Test Sample

    Opticon PX-20 Specifications Manual 8.1. Bar Code Test Sample 1 D Bar Codes <Code 39> Resolution Symbology Size (mm) No. of Digits 0.127 mm (5mil) 32 × 10 0.20 mm (7.9mil) 100 × 10 Code 39 0.254 mm (10mil) 32.5 × 10 0.508 mm (20mil)

  • Page 13: Scan Area And Depth Of Field

    Opticon PX-20 Specifications Manual 8.2. Scan Area and Depth of Field The scan area is measured from the front edge of the camera module. 0.127(5mil) [ Unit ： mm ] 0.254(10mil) Code 39 0.508(20mil) 0.20(7.9mil) Code 128 0.33(13mil) UPC 100% 0.169(6.7mil)

  • Page 14: Print Contrast Signal

    Opticon PX-20 Specifications Manual Figure 3: Scan Area and Depth of Field 8.3. Print Contrast Signal PSC 0.3 or higher <Conditions> : 32% and higher (70% or higher reflectivity of space and quiet zone) Distance : 130 mm from the front edge of the camera module Bar Code Sample : UPC specified in Chapter 8.

  • Page 15: Motion Tolerance

    Opticon PX-20 Specifications Manual 8.6. Motion Tolerance UPC bar code 100% can be read when it is moving at 2m/s. <Conditions> Ambient Temperature and Humidity : Room temperature and Room humidity Ambient Light : 500 lux to 1000 lux (on the surface of a bar code)

  • Page 16: Pitch, Skew, And Tilt

    Opticon PX-20 Specifications Manual 8.7. Pitch, Skew, and Tilt : α = ±50° Pitch : β = ±50° Skew : γ = ±180° Tilt <Conditions> Bar Code Sample : 0.33 mm UPC specified in Chapter 8 Distance : 130 mm from the front edge of the camera module : R = ∞...

  • Page 17: External Interfaces

    Complies with USB Version 2.0. The supported profiles are USB-COM (also referred to as USB-VCP that stands for Virtual Communication Port). This port is used for charging and data communication. 9.2. Wireless Interface PX-20 has a BT connection with the following features: Feature Description Version 1)

  • Page 18: Cable And Connector

    Figure 2: USB Micro-B connector 10.3. External trigger It is possible to trigger the PX-20’s barcode reader externally via a pin in the USB connector. The trigger is active low, edge triggered, enabled by grounding pin 4 in the USB connector.

  • Page 19: Labeling

    Opticon PX-20 Specifications Manual 11. Labeling 11.1. Product label The product label shown below is affixed to the scanner. Figure 3: Product label The serial number consists out of 6 numeric digits. It starts with 000001 and is incremented with 1 for each scanner. The serial number is also stored in the scanners non-volatile memory and API functions are available to retrieve the serial number for use in user applications.

  • Page 20: Figure 4: White Box Label

    Opticon PX-20 Specifications Manual Figure 4: White box label...

  • Page 21: Packaging Specifications

    Opticon PX-20 Specifications Manual 12. Packaging Specifications 12.1. Individual Packaging Specification Put the scanner in a protective foam bag and place it in an individual packing box. Size of the package after assembly: 125 (W) x 112 (D) x 40 (H) mm...

  • Page 22: Collective Packaging Specification

    • • • • B.V. B.V. Made in China Opticon Sensors Europe Made in China Opticon Sensors Europe Figure Collective packaging Note: The "RO" mark labeled on the package tray or package guarantees that the applicable product has passed test of RoHS restrictions compliance (the restriction of the use of certain hazardous substances in electrical and electronic equipment, 2002/95 EC).

  • Page 23: Durability

    Opticon PX-20 Specifications Manual 13. Durability 13.1. Drop Test No malfunction occurred after the following drop test. Drop Test: Drop the data collector from a height of 180 cm onto a concrete floor (three times in each of 6 angles).

  • Page 24: Regulatory Compliance

    Opticon PX-20 Specifications Manual 14. Regulatory Compliance 14.1. Product Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Lamp classification: IEC62471:2006 Exempt Group 14.2. EMC EN55022 EN55024 FCC Part 15 Subpart B Class B and Part 15 Subpart C: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 25: R&Tte

    Opticon PX-20 Specifications Manual 14.5. R&TTE This scanner conforms to the following standards of the Radio and Telecommunications Terminal Equipment (R&TTE) directive from the EU. EN300 328 EN301 489...

  • Page 26: Handling

    Opticon PX-20 Specifications Manual 15. Handling Handle this product carefully. Do not deliberately subject it to any of the following. 15.1. Shock Do not throw or drop the scanner. Do not drop or put heavy items on this product or its cable.

  • Page 27: Revision History

    Opticon PX-20 Specifications Manual 16. Revision History Revision Date Issued By Comments Initial revision 20120928 NiLe Changed chapter 10 to have micro USB 20121010 NiLe Updates during review 20121012 NiLe Updates according to review notes 20121015 NiLe Updated pictures 20121030...
