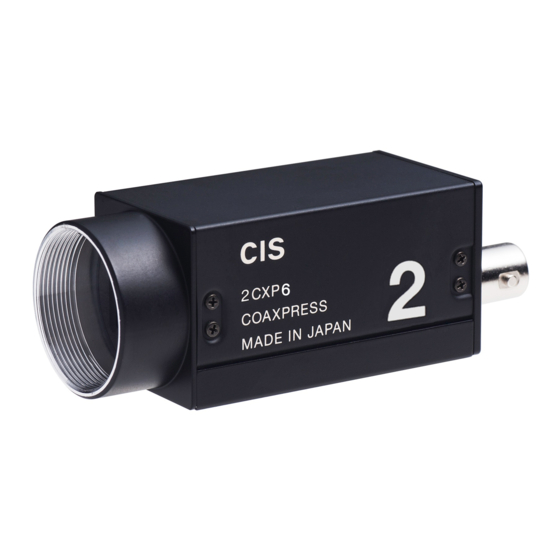

CIS VCC-2CXP6R Product Specification & Operational Manual

Coaxpress i/f2m cmos (raw) camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Rev.905-0187-02
CoaXPress I/F
2M CMOS (RAW) Camera
VCC-2CXP6R
Product Specifications
& Operational Manual
CIS Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCC-2CXP6R and is the answer not in the manual?

Questions and answers

Related Manuals for CIS VCC-2CXP6R

Summary of Contents for CIS VCC-2CXP6R

  • Page 1 Rev.905-0187-02 CoaXPress I/F 2M CMOS (RAW) Camera VCC-2CXP6R Product Specifications & Operational Manual CIS Corporation...

  • Page 2: Table Of Contents

    5.22. Test Pattern Indication ..........................25 5.23. Cursor Indication ............................ 25 5.24. LED Operational Mode ..........................25 5.25. Camera Timing Output ..........................25 5.26. User ID Save ............................26 5.27. Temperature Indication ..........................26 ©2019 CIS Corporation. All rights reserved.
  • Page 3 Dimensions ............................... 28 7.1. Camera Dimensions ..........................28 7.2. Optical Axis Accuracy ..........................29 Case for Indemnity ............................30 8.1. Product Warranty ............................ 30 8.2. CMOS Pixel Defect........................... 30 8.3. Product Support ............................30 ©2019 CIS Corporation. All rights reserved.

  • Page 4: Handling Precautions

    □ The camera must not be used under conditions or environments other than specified in this manual. 1.3. Disclaimers (Exception Clause) CIS shall be exempted from taking responsibility and held harmless for damages or losses incurred by the following cases.

  • Page 5: Product Outline

    VCC-2CXP6R Rev.905-0187-02 Product Outline VCC-2CXP6R is a CoaXPress interfaced and 2M resolution camera module. 1/1.7 type Color CMOS sensor is utilized. 2.1. Features □ Small footprint: 29mm(H) x 29mm(W) x 55mm(D) □ Global shutter type CMOS sensor □ CoaXPress CXP-3, CXP-6 are supported.

  • Page 6: Specifications

    Vertical 8 areas can be set. Power requirements PoCXP: 18.5~26V Power consumption 3.4W(CXP-3), 3.6W (CXP-6), [At free run] Mechanical Specifications Dimensions H:29mm W:29mm D:55mm (Without protruding portion) Weight Approx. 66g Lens mount C mount ©2019 CIS Corporation. All rights reserved.

  • Page 7: Camera Input And Output Signals Specifications

    (CAMERA_INTERNAL) SN74AHCT1G14 (Equlvalent) 3.2.2 6pins Circular Connector No.3 pin SIGNAL_OUT Circuit □ 5.0V CMOS logic level output □ Output voltage Low: 0.35Vdc (Max.), High: 4.5Vdc (Min.) +5.0V Camera internal circuit (CAMERA_INTERNAL) SIGNAL_OUT SN74LV1T32 (Equlvalent) ©2019 CIS Corporation. All rights reserved.

  • Page 8: External Connector Pin Assignment

    3.3.1 6pins Circular Connector HR10-10R-12PA(73) (HIROSE) or equivalent HR10A-7R-6PB (HIROSE) or equivalent Pin No. Signals Description SIGNAL_OUT Exposure/FVAL/LVAL/LinkTrigger TRIGGER_IN Trigger input Conduction with camera module ※NC=Non-Connection. Do not connect anything to the terminal. 3.3.2 75Ω BNC Connector (BCJ-BPLHA Canare) ©2019 CIS Corporation. All rights reserved.

  • Page 9: Led Indicator

    The LED blinks by 12.5Hz when TriggerMode is Off. When TriggerMode is On, LED blinks by the trigger cycle. (It may appear as lighted status, not blinked status at fast trigger.) 3.4. Spectral Response ※ The lens characteristics, IR cut filter characteristics, and the illuminant characteristics are excluded. ©2019 CIS Corporation. All rights reserved.

  • Page 10: Output Timing

    1H total pixel Time Link rate H blank Data number [us] Format CXP-3 BayerRG/Mono8 6.36 BayerRG/Mono10 204 7.81 BayerRG/Mono12 204 9.21 CXP-6 BayerRG/Mono8 3.18 BayerRG/Mono10 204 3.91 BayerRG/Mono12 204 4.61 Sensor Operation clk 74.25 MHz ©2019 CIS Corporation. All rights reserved.

  • Page 11: Vertical Sync. Timing

    1316 6.36 8.37 BayerRG/Mono10 1248 1316 7.81 10.28 BayerRG/Mono12 1248 1312 9.21 12.08 CXP-6 BayerRG/Mono8 1248 1316 3.18 4.18 BayerRG/Mono10 1248 1316 3.91 5.15 BayerRG/Mono12 1248 1312 4.61 6.05 Sensor Operation clk 74.25 MHz ©2019 CIS Corporation. All rights reserved.

  • Page 12: Camera Function

    UserSetSave >Excute 5.3. Link Speed and Link Count Transfer Control CXP3_X1 ConnectionConfig CXP6_X1  CXP-3: Link speed=3.125Gbps, Link count=1  CXP-6: Link speed=6.250Gbps, Link count=1 ※ Please do not change ConnectionConfig while grabbing (acquiring image). ©2019 CIS Corporation. All rights reserved.

  • Page 13: Pixel Format (Raw)

    □ Please set TriggerSelector to AcquisitionStart, and set TriggerSource one out of Software/LinkTrigger0/Line0 and turn ON TriggerMode. Acquisition Control TriggerMode On/Off LineSync TriggerSyncMode ClockSync AcquisitionStart TriggerSelector FrameStart RisingEdge FallingEdge TriggerActivation LevelHigh LevelLow Software TriggerSource LinkTrigger0 Line0 TriggerSoftware Execute ©2019 CIS Corporation. All rights reserved.
  • Page 14 A trigger is generated in the camera and capture images for 1 frame when this command is executed. Please make sure to set TriggerSource to Software. ※ Software Trigger is valid at Rising Edge. ©2019 CIS Corporation. All rights reserved.

  • Page 15: Trigger Sync. Mode And Delay Time To Start Exposure

    TRIG IN Exposure Out Effective Line (Video Out) Readout (FVAL Out) ・ When a trigger is input with the restricted timing explained the above, “IllegalTriggerFlag” becomes “1”. ©2019 CIS Corporation. All rights reserved.

  • Page 16: Fixed Trigger Shutter Mode (Linesync) H Sync. Trigger

    Trigger input while exposure period (Exposure Time) shall be ignored in the camera. ((A) in the drawing next page.) Please note that a trigger shorter than 1 frame cycle shall not be used. ©2019 CIS Corporation. All rights reserved.

  • Page 17: Fast Fixed Trigger Shutter Mode (Clocksync) Clk Sync. Trigger

    The next trigger while outputting video for the prior trigger cannot be accepted. Trigger input while exposure period (Exposure Time) and reading out period shall be ignored in the camera. ((A) and □ (B) in the drawing next page.) ©2019 CIS Corporation. All rights reserved.

  • Page 18: Pulse Width Trigger Shutter Mode (Linesync) H Sync. Trigger

    Functionally, there is no upper limitation, but noises such as dark noises shadings may be noticeable at long time exposure. There is an exposure time period for approx. 4.997µs at the edge right after exposure time. □ SP OUT (Exposure Out) Approx. 4.997us Actual exposure period ©2019 CIS Corporation. All rights reserved.

  • Page 19: Fast Pulse Width Trigger Shutter Mode (Clocksync) Clk Sync. Trigger

    There is an exposure time period for approx. 4.997μs at the edge right after exposure output. SP OUT (Exposure Out) Approx. 4.997us Actual exposure period Trigger input during readout time shall be ignored in the camera. ((A) in the drawing next page.) □ ©2019 CIS Corporation. All rights reserved.

  • Page 20: Exposure Time

    BayerRG/Mono8 3.18 BayerRG/Mono10 3.91 BayerRG/Mono12 4.61 ※ The min. set value shall be clipped with 1, and the max. value shall be clipped with 1248 or with the total line count at partial mode. ©2019 CIS Corporation. All rights reserved.

  • Page 21: Manual Shutter Settings With Clk Sync. Mode (Fast Trigger Mode)

    Width and Height of the effective partial area can be checked by selecting EffectiveRegion. ※ Please do select EffectiveRegion to start acquiring images. ※ Please do select EffectiveRegion when selecting 2×2 binning mode (Only for monochrome model). ©2019 CIS Corporation. All rights reserved.
  • Page 22 ※ Please make sure that the Height setting does not overlap with other Regions correspond to OffsetY setting. : This is to set the Offset settings for X direction of the Region. This model VCC-2CXP6R is fixed ・OffsetX to 0.

  • Page 23: White Balance

    ※ BalanceWhiteAuto cannot be executed when binning or more than two partial areas are set. The commands below are valid only when BalanceWhiteAuto is Off.  BalanceRatioSelector : This is to select the color component to change by BalanceRatio. ©2019 CIS Corporation. All rights reserved.

  • Page 24: Black Level Adjustment

    The detected data of white pixel defects and black pixel defects at Ex-Factory are saved. Basically, these data cannot be erased. ・ Data registered by users Data increased after shipment or the one registered by users. These data can be entirely erased anytime by DefectPixelDefault. ©2019 CIS Corporation. All rights reserved.
  • Page 25 In case the coordinate same as the defective data at ex-factory is specified, it shall be ignored.  Only the added pixels by “Defective pixels detection registered by user” or “Defective pixels added by user” can  be deleted. Data at ex-factory cannot be deleted by this command. ©2019 CIS Corporation. All rights reserved.
  • Page 26 When changing the threshold value of DefectDetectionThresholdValue and acquiring the defective pixels  correction data registered by user, please execute DefectPixelDefault and delete the defective pixels correction data registered by user to reacquire it. ©2019 CIS Corporation. All rights reserved.
  • Page 27  DefectPixelChannelCount : This is to indicate the number of defects of channel number specified at ChannelNumber. The specified number of the defect of the channel number is the sum total of the defects at ex-factory and the number of defects registered by user. ©2019 CIS Corporation. All rights reserved.

  • Page 28: Test Pattern Indication

    : This is to indicate effective period of frame by Hi Active. LineActive : This is to indicate effective period of line by Hi Active. TriggerPacketActive : This is to output uplink trigger packet signal from frame grabber by decoding. ©2019 CIS Corporation. All rights reserved.

  • Page 29: User Id Save

    5.27. Temperature Indication □ This is to indicate the temperature of the image sensor. (Indicate by ℃) DeviceControl DeviceTemperature ReadOnly [Note] This value is not calibrated. Please regard this value as an approximate value. ©2019 CIS Corporation. All rights reserved.

  • Page 30: Factory Settings

    This is to specify the color and the position of CursorOffsetY cursor Y. CursorColor White Cursor color White/Black BalanceRatioSelector RAW model BalanceWhiteAuto RAW model DeviceIndicatorMode Active Indicate LED indicator LineSource Circular 6P-3pin output settings DeviceUserID User letter string setting (16 letters) ©2019 CIS Corporation. All rights reserved.

  • Page 31: Dimensions

    VCC-2CXP6R Rev.905-0187-02 Dimensions 7.1. Camera Dimensions ©2019 CIS Corporation. All rights reserved.

  • Page 32: Optical Axis Accuracy

    VCC-2CXP6R Rev.905-0187-02 7.2. Optical Axis Accuracy ©2019 CIS Corporation. All rights reserved.

  • Page 33: Case For Indemnity

    If you use the product properly and discover a defect during the warranty period, and if that was caused by designing or manufacturing, CIS Corporation, at its option, repairs or replaces it at no charge to you. Products out of warranty period will be subject to charge.
