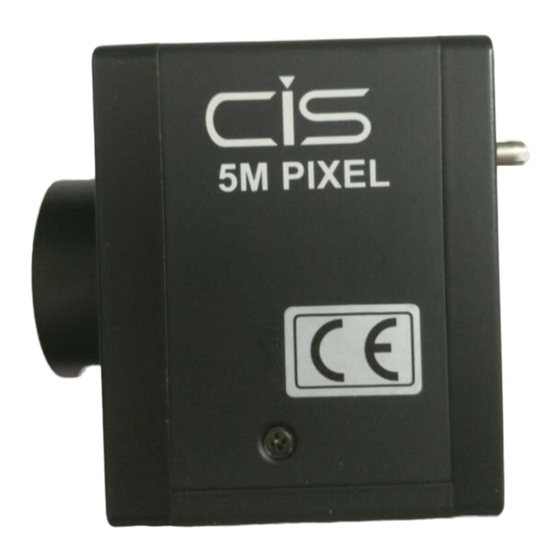

- Page 1 VCC-G60FV11CL Rev.900-684-34 English 5M Pixel B/W Camera Link Camera VCC-G60FV11CL Product Specification & Operational Manual CIS Corporation ©2014 CIS Corporation. All rights reserved.
-
Page 2: Table Of Contents
10. Initial Settings ..........................17 11. CCD Optical Axis Accuracy ......................18 12. Dimensions ............................ 19 13. Cases for Indemnity (Limited Warranty) ................... 20 14. CCD Pixel Defect ..........................20 15. Product Support ..........................20 ©2014 CIS Corporation. All rights reserved. -
Page 3: Scope Of Application
AC leaks from the connected devices may cause damages or destroy the camera. Do not apply excessive voltage. (Use only the specified voltage.) Unstable or improper power supply voltage may cause damages or malfunction of the camera. ©2014 CIS Corporation. All rights reserved. -
Page 4: Product Outline
Therefore, differences between right screen and left screen could be seen depending on the usage conditions (shooting conditions /temeperature conditions and so on). CIS trys its best to adjust this differences but please be noted it would not be perfect. -
Page 5: Specification
Refer to drawing for CCD Optical Axis Accuracy (Clause 11) 0～21dB (Analog Gain; 0dB～+15 dB, Digital Gain; 15 dB～+21dB) Gain variable range 1/16～1/100,000s Shutter speed variable range ・Standard Trigger Mode ・Pulse Width Trigger Mode Trigger shutter mode ©2014 CIS Corporation. All rights reserved. - Page 6 Operation environment ※All the camera functions operate normally under operation guaranteed temperature RH 20～80% with no condensation Humidity Temperature -25℃ ～ +60℃ Storage environment RH 20～80% with no condensation Humidity ©2014 CIS Corporation. All rights reserved.
-
Page 7: Camera Output Signal Specification
Video Output : Left half image data, Yth line, Xth pixel from the left. : Right half image data, Yth line, Xth pixel from the right. Data Sequence X: 1～1224 Y: 1～2058 ©2014 CIS Corporation. All rights reserved. - Page 8 B5: Right half image data:bit5 Port C6 B6: Right half image data:bit6 Port C7 B7: Right half image data:bit7 5 secounds shall be waited after turning on power to get proper camera operation. ※ ©2014 CIS Corporation. All rights reserved.
-
Page 9: Ccd Spectral Response (Representative Value)
VCC-G60FV11CL Rev.900-684-34 4.3. CCD Spectral Response (Representative Value) ※ Lens charcteristics and luminous source charcteristics are not considered. ©2014 CIS Corporation. All rights reserved. -
Page 10: Function Settings
Positive Input Trigger Polarity Negative Input Camera Link Connector 12226-1100-00-PL Trigger Input Select Circular Connector HR10-7R-6PA 8bit Output Data Output Data Select 10bit Output Data Full Frame Scan Mode Partial Scan Mode Partial Scan Mode ©2014 CIS Corporation. All rights reserved. - Page 11 Note: The data set with 2 Byte with Manual Analog/Digital Gain control, Manual Shutter Control, Partial Scan Start Position, and Partial Scan Effective Line shall be set with High Byte first, then set with Low Byte. The camera rewrites the internal resister when receiving Low Byte. ©2014 CIS Corporation. All rights reserved.
-
Page 12: External Connector Pin Assignment
Trigger IN 6.2. 26 pins Camera Link Connector 12226-1100-00 PL (SUMITOMO 3M) Pin No. Pin No. Xclk- Xclk+ SerTC+ SerTC- SerTFG- SerTFG+ CC1- (Trigger IN-) CC1+ (Trigger IN+) CC2+ CC2- CC3- CC3+ CC4+ CC4- ©2014 CIS Corporation. All rights reserved. -
Page 13: Timing Chart
Pixel CLK = 64MHz 2Tap Output 7.2. Full Frame Scan Mode Timing Video Output 2058H 2058H (CCD Read Out Signal) 2075 2076 2077 2078 2079 LVAL Output DVAL Output FVAL Output Total = 2079H ©2014 CIS Corporation. All rights reserved. -
Page 14: Standard Trigger Mode Timing
※Note to the startup in Standard Trigger Mode and Pulse Width Mode If you turn on your camera in Trigger Mode, enter the dummy trigger signal three or more times in order to stabilize the CCD operation ©2014 CIS Corporation. All rights reserved. -
Page 15: Partial Scan Mode Details
In that case, set the data of address“001” (Gain) to“006” (Manual Gain - Independent control of 2 taps). And set the data of address 006 to the right and the data of address 008 to the left, then adjust the brightness difference between the right and left . ©2014 CIS Corporation. All rights reserved. -
Page 16: Remote Interface Function
To save the data into EEPROM, please refer to Section 5. Function Settings. C is the code to send the data back from the camera. Note: Do not set code C when sending the data from PC side. ©2014 CIS Corporation. All rights reserved. -
Page 17: Initial Settings
(Trigger Mode Off) Trigger Polarity 0: Positive Input Output Data Select 0: 8 bit Output Data Partial Scan Mode 0: Full Frame Scan Mode Partial Scan Total Lines 021 & 022 2078: Read Only ©2014 CIS Corporation. All rights reserved. -
Page 18: Ccd Optical Axis Accuracy
Datum Plane Incliation of effective pixels theta to datum plane A Theta shall be under ±0.5° *)Dimensions from datum plane A to the center of the lens mount 910-004-00-00 (Unit: mm) ©2014 CIS Corporation. All rights reserved. -
Page 19: Dimensions
Product Name Label Position *) C Mount screws comply with ANSI/ASME B1.1, 1-32UN(2B). *) Screw length from C mount lens surface shall be under 6mm. And, protruding portion shall be less than 10mm. 999-501-00-00 (Unit: mm) ©2014 CIS Corporation. All rights reserved. -
Page 20: Cases For Indemnity (Limited Warranty)
On very rare occasions, however, CCD pixel defects might be noted with time of usage of the products. Cause of the CCD pixel defects is the characteristic phenomenon of CCD itself and CIS is exempted from taking any responsibilities for them.
