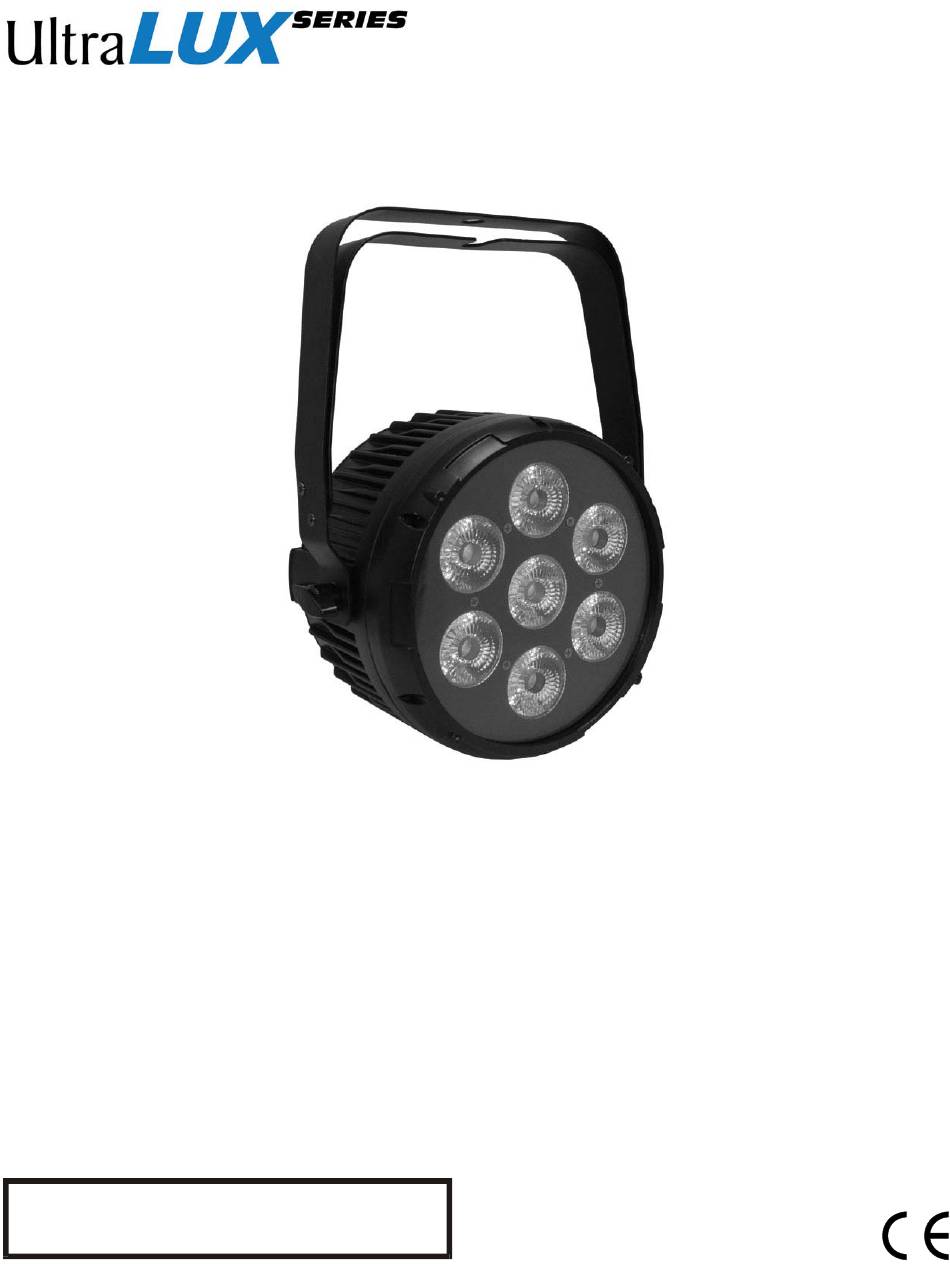

DL-ULTRALUX7C6 – Black with RGBWAUV LEDS
V1.1
This manual contains important information.
Please read before operating fixture.

Advertisement

Table of Contents
loading

Summary of Contents for Techni-Lux UltraLux DL-ULTRALUX7C6

  • Page 1 Information specifically for: DL-ULTRALUX7C6 – Black with RGBWAUV LEDS V1.1 This manual contains important information. Please read before operating fixture.
  • Page 2 It is the owner’s responsibility to provide invoices for proof of purchase, purchase date and dealer or distributor. If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment.
  • Page 3: Table Of Contents

    Table of Contents Specifications ..........................4   Unpacking ........................... 5   Purpose of Manual ........................5   Power ............................5   Mounting ............................. 6   Basic Reference .......................... 6   Basic Setup Wiring Diagrams ....................7   Operating Setting Buttons ......................7  ...
  • Page 4: Specifications

    Specifications Fixture Overview  RGBWAUV – Red, Green Blue, White, Amber, UV color mixing  Rugged Heavy Duty Aluminum Housing  Operating modes: DMX or Standalone  3 Pin DMX connectors  Segmented LED display menu for settings  Integrated power supply in base ...
  • Page 5: Unpacking

    Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection.
  • Page 6: Mounting

    directly from a switched circuit. This fixture cannot be run on a rheostat or dimmer circuit even if used solely for a 0% to 100% switching. Before applying power to a fixture, check that the fixture’s input voltage matches the power source voltage. Consult a qualified electrician if there are any concerns about proper connection to power.
  • Page 7: Basic Setup Wiring Diagrams

    Basic Setup Wiring Diagrams There are two basic ways to use the fixture. One is in standalone, which does not require the use of any data lines to be connected nor any controller, each fixture would operate independently based solely on the menu setting. The second method, is to use the units in DMX control.
  • Page 8: Fixture Menu (Led Display)

    Fixture Menu (LED Display) Use the 4 buttons and display panel located on the rear of the fixture to access its settings. Main Menu Value Functions 001-512 6 channels 001-512 10 channels 00-99 Color Fade in & out (slow→fast) 00-99 Color changing (slow→fast) 00-99 Color selective...
  • Page 9: Dmx-512 Control

    DMX-512 Control Fixtures require a "Start Address" from 1 to 512, setting the first DMX channel containing data for the fixture (see DMX Background). Before addressing fixtures, consult the manual of the system’s DMX controller to select a desirable addressing scheme. Valid Start Addresses range from 1 to 512.
  • Page 10: Dmx Start Address

    5 Pin XLR (Socket) Pin 1: GND(Sheild) XLR (Plug) Pin 2: Signal(-) Pin 1: GND(Sheild) Pin 3: Signal(+) Pin 2: Signal(-) Pin 4: N/C Pin 3: Signal(+) Pin 5: N/C 5 Pin XLR (Plug) XLR (S ocket Pin 1: GND(Sheild) Pin 1: GND(Sheild) Pin 2: Signal(-) Pin 2: Signal(-)
  • Page 11: Channel Mode

    6 Channel Mode Channel Function Value Red intensity 0-255 Green intensity 0-255 Blue intensity 0-255 White intensity 0-255 UV intensity 0-255 Amber intensity 0-255 10 Channel Mode Channel Function Value Dimmer Master Dimmer (overall off to on) 0-255 No function Strobe Strobe (slow to fast )...
  • Page 12: Maintenance

    Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance.
  • Page 13: Troubleshooting

    Troubleshooting Symptom Possible Cause / Solution No Power Check for power on mains Check main fuse and fuse holder Erratic / No response to DMX Check data cables: connection and proper wiring Check Display settings Check Start Address Incorrectly responds to DMX Check Start Address (Diagnostic technique for DMX issues: Set Check for overlapping addresses...
  • Page 14: Dmx-512 Background

    DMX-512 Background DMX-512 is a digital data transmission standard developed by the United States Institute for Theater Technology (USITT). It is designed to enable control of lighting equipment. DMX deals solely with the formatting of data for transmission and does not dictate how the data is created or used. Under DMX, signals are transmitted in much the same way a computer modem transmits data.
