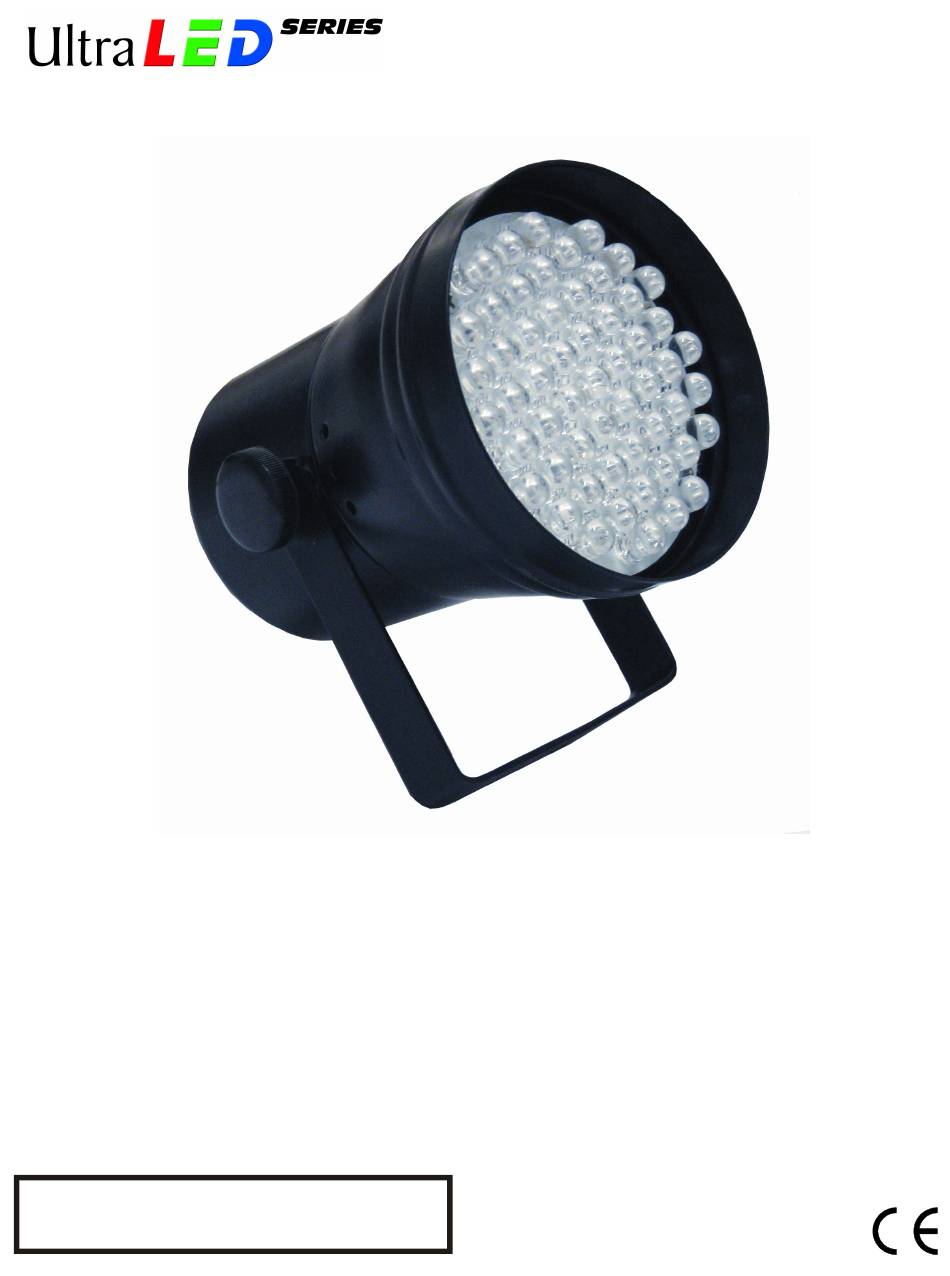

- Page 1 Information specifically for: DL-LEDSPOTC55/B - Black This manual contains important information. Please read before operating fixture.
- Page 2 If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,...
-
Page 3: Table Of Contents
Table of Contents Specifications..........................4 Unpacking........................... 5 Power ............................5 Mounting............................. 5 Setup and Operation Modes ..................... 6 DMX-512 Control ........................6 DMX Data Connection......................7 Data Terminator ........................7 Adapter 5-to-3 pin........................7 DMX Start Address........................8 DMX Channel Assignment ......................8 CH 1 : Master Dimmer...................... -
Page 4: Specifications
Specifications Fixture Overview • RGB color mixing with intensity and strobe effects • 55 total ultra bright 10mm LEDs: 18 red, 19 green, 18 blue • Narrow column of light, beam angle of 10 degrees • Operating modes: DMX, Sound Active, Master/Slave •... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Setup And Operation Modes
Setup and Operation Modes The following refers to the different modes that are available on this fixture via the Dip Switch Settings. Each mode is selectable by setting the dip switch combination from the table below. DMX, Master and Slave modes require data interconnect cables to be used. The stand-alone modes;... -
Page 7: Dmx Data Connection
DMX Data Connection This fixture uses 3 pin XLR type connectors and shielded twisted pair cable approved for EIA- 422/EIA485 use. Fixtures are connected in Daisy Chain topography: Connection is made from the controller to the DMX-IN of the first light, then from the DMX-OUT to the DMX-IN of the next light and so on. -
Page 8: Dmx Start Address
DMX Start Address To place the fixture in DMX mode, DIP Switch #10 is set ON. Next, set the DIP Switch Values Switch Value start address using the other DIP Switches located on the back of the fixture. Each switch has an associated value. Adding the value of each switch in the ON position gives the start address. -
Page 9: 1 : Master Dimmer
CH 1 : Master Dimmer The Master Dimmer controls the CH 1 – Master Dimmer actual output level while the DMX Value Function relative level of each color is set 0 – 4 Black Out by the R, G or B channels or the 5-255 Intensity - Dark to Full Brightness Color Macro/Scroll Channel. -
Page 10: 6 : Shutter
55-59 Yellow 60-64 Lime 65-69 Lt. Green 70-74 Green 75-79 Teal 80-84 Cyan 85-89 Color Scroll Snap Speed 1 (Fastest) 90-94 Color Scroll Snap Speed 2 95-99 Color Scroll Snap Speed 3 100-104 Color Scroll Snap Speed 4 105-109 Color Scroll Snap Speed 5 110-114 Color Scroll Snap Speed 6 115-119... -
Page 11: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 12: Troubleshooting
In either case, pin numbers are the same and Data Negative (S- or Cold) Data Positive (S+ or Hot) carry the same signals. n/c (not used) n/c (not used) 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. www.techni-lux.com...
