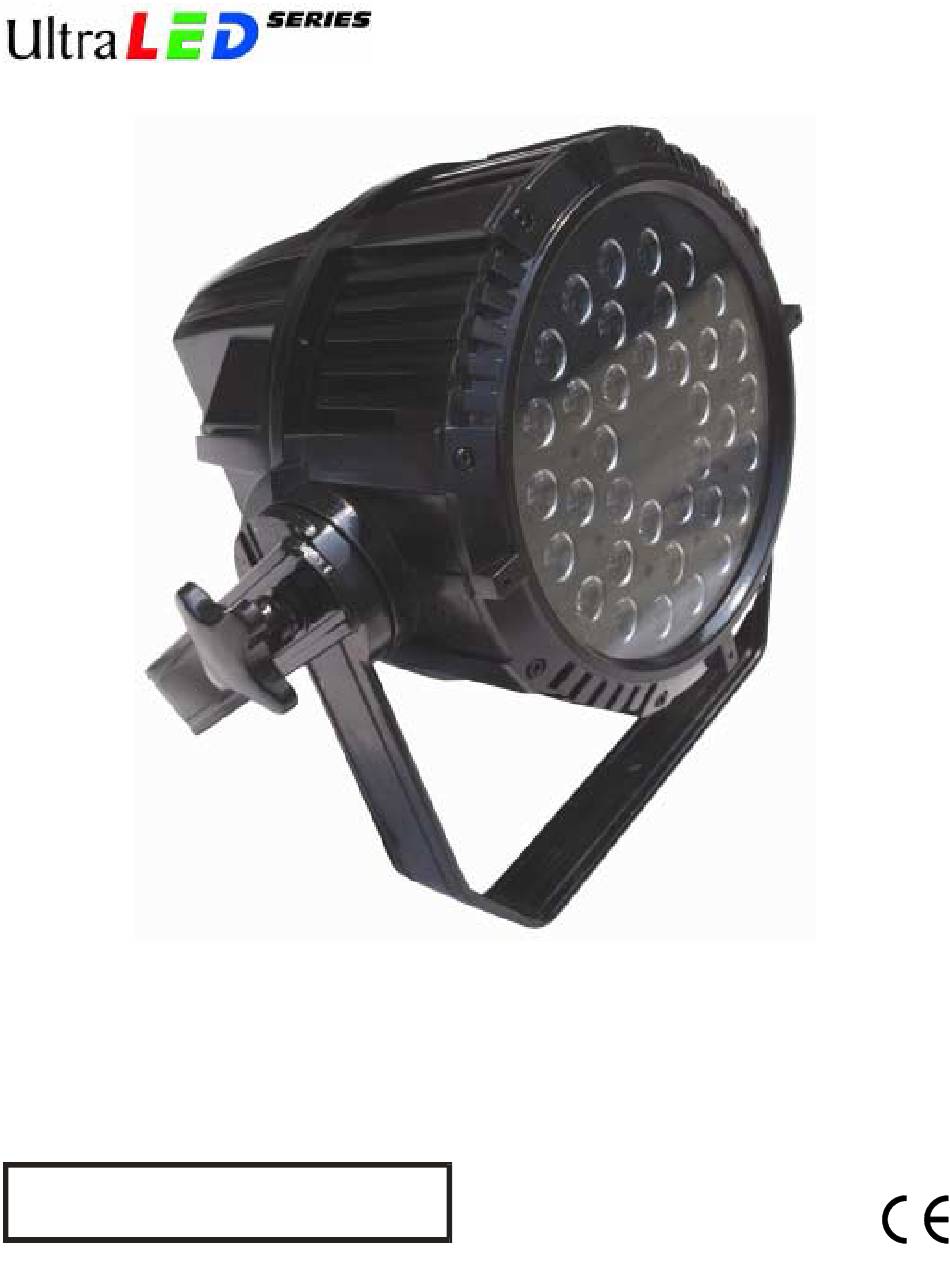

- Page 1 Information specifically for: DL-LEDPAR3TC36O/B - Black This manual contains important information. Please read before operating fixture.
- Page 2 If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,...
-
Page 3: Table Of Contents
Table of Contents Specifications ..........................4 Unpacking ...........................5 Power............................5 Mounting .............................5 Basic Reference..........................6 Setup and Operation Modes (LED Segment Display)..............6 Control Panel Menu ........................6 Control Panel Menu Table ......................7 DMX-512 Control.........................7 DMX Data Connection ......................8 Data Terminator ........................8 Adapter 5-to-3 pin ........................8 DMX Start Address ........................9 DMX Channel Assignments .......................9 3 Channel Mode........................9... -
Page 4: Specifications
Specifications Fixture Overview • Tricolor RGB color mixing with intensity and strobe effects • 36 total high power tricolor 3 watt LEDs • Beam Angle – 25° • Rugged Heavy Duty Aluminum Housing • Operating modes: DMX, Scene Memory, Chases, Sound Active, Master/Slave •... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Basic Reference
Basic Reference Safety Cable Attachment Point Male XLR 3-pin Female XLR 3-pin Data Input Cable Data Output Cable Power Input Cable Segment LED Display Power Output Cable Menu Setting Buttons Setup and Operation Modes (LED Segment Display) The following refers to the different modes that are available on this fixture via the LED Segment Control Panel display. -
Page 7: Control Panel Menu Table
Control Panel Menu Table The following table describes the control panel’s menu options and settings. What is displayed on the screen is marked in “quotations”. When this unit powers up, it will display “SYON” for System Power On. Menu Options Function Options MODE... -
Page 8: Dmx Data Connection
DMX Data Connection This fixture uses 3 pin XLR type connectors and shielded twisted pair cable approved for EIA-422/EIA485 use. Fixtures are connected in Daisy Chain topography: Connection is made from the controller to the DMX-IN of the first light, then from the DMX-OUT to the DMX-IN of the next light and so on. -
Page 9: Dmx Start Address
DMX Start Address To place the fixture in DMX mode, press the MENU key, then using the UP/DOWN keys get to the Address Menu Option. Press ENTER and using the UP/DOWN buttons, set the start address number for this particular unit in the DMX chain. Once selected, press ENTER again to save your selection. -
Page 10: Channel Mode
5 Channel Mode Channel Function Red (0-255) Green (0-255) Blue (0-255) Master Dimmer (0-255) Strobe (0-255) 6 Channel Mode Channel Function Master Dimmer (0-255) Red (0-255) Green (0-255) Blue (0-255) No Function 5-84 Color Macro 85-169 Color Snap 170-255 Color Fade Strobe (0-255) Channel Values and Functions –... -
Page 11: 4 : Blue
CH 4 : Blue Sets relative intensity of Blue. CH 4 – Blue Actual value is subject to Master DMX Value Function Dimmer channels. The Color No Output Macro/Scroll Channel will 5-255 Intensity - Off to Full On override this channel. CH 5 : Color Macro/Scroll The Color Macro/Scroll selects between 16 colors and two Color Scroll Modes. -
Page 12: 6 : Strobe
190-194 Color Scroll FADE Speed 5 195-199 Color Scroll FADE Speed 6 200-204 Color Scroll FADE Speed 7 205-209 Color Scroll FADE Speed 8 210-214 Color Scroll FADE Speed 9 215-219 Color Scroll FADE Speed 10 220-224 Color Scroll FADE Speed 11 225-229 Color Scroll FADE Speed 12 230-234... -
Page 13: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 14: Troubleshooting
Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same and Data Positive (S+ or Hot) carry the same signals. n/c (not used) n/c (not used) 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. www.techni-lux.com...
