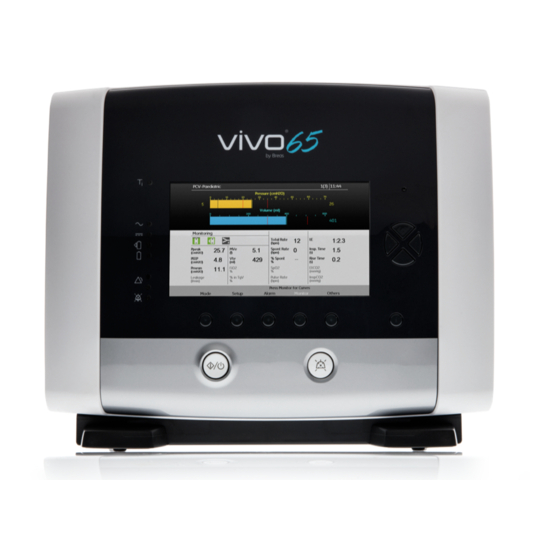

Vivo 65
Quick Reference Guide
Quick Usage Guide
This is not a complete guide for the
Vivo 65. See your manual for complete
instructions.
Turning the Vivo 65 On and Off
Turn On and Enter Operating Mode
1. Make sure the power
source is connected
and secured by the
restraining clip.
2. Turn on the Vivo 65
and enter Standby
mode by pressing the
Standby button on the
side panel.
3. To start treatment and
enter operating mode,
press and hold the
Start/Stop button on
the front panel.
Release the Start/
Stop button when the
progress bar is filled.
Human Design Medical
1-844-848-6872
Stopping Treatment and Turning Off
1. To stop treatment and
enter Standby mode,
first press and hold the
Start/Stop button on
the front panel.
2. Release the Start/
Stop button when the
progress bar is filled.
3. Press the Audio Pause
button within 10
seconds. Press the
button firmly.
4. When the Vivo 65 is
not in an active
treatment mode, press
the Standby button
on the side panel to
change the unit to a
low power standby
state.
Företagsvägen 1 · SE-435 33 Mölnlycke · Sweden
Phone +46 31 86 88 00
www.breas.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Breas Vivo 65
Summary of Contents for Breas Vivo 65
- Page 1 Quick Usage Guide Stopping Treatment and Turning Off This is not a complete guide for the 1. To stop treatment and Vivo 65. See your manual for complete enter Standby mode, instructions. first press and hold the Start/Stop button on the front panel.
- Page 2 2. Lock the insert by The choice of insert makes it possible to connect the turning the lock-ring Vivo 65 to either a dual limb pediatric circuit, a dual clockwise, so that the limb adult circuit or a single limb circuit. The Vivo 65 indicator points to the automatically detects which insert has been installed.
- Page 3 2. Connect the small tubing to the exhalation valve the click-on battery control pressure outlet of the Vivo 65. holders (marked with circles). 3. Connect the other end of the patient circuit to an HME or patient interface.
- Page 4 *Vivo by Breas, Breas and the Breas logo are trademarks of Breas Medical AB. © 2018 Breas Medical – All rights reserved.
