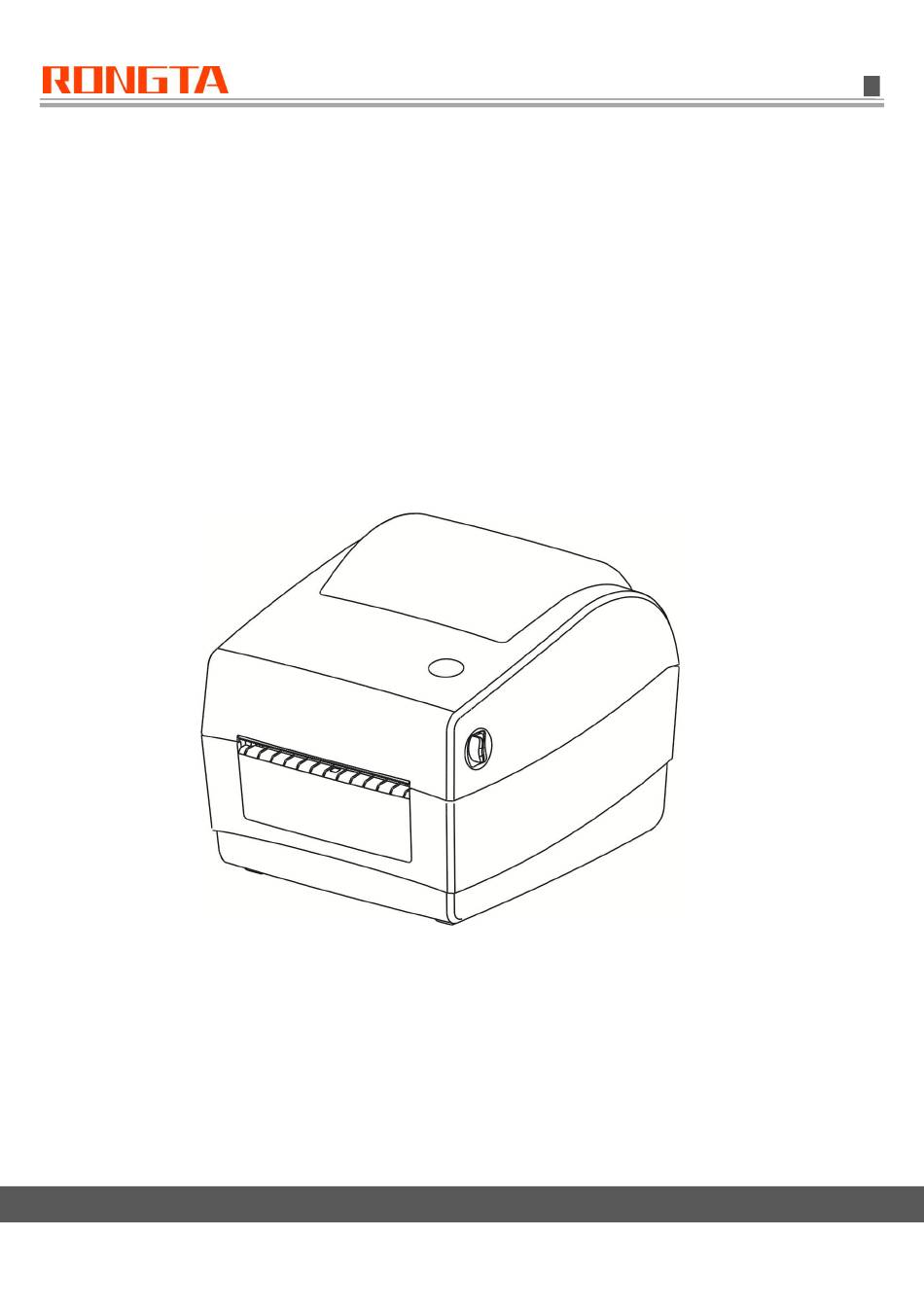

- Page 1 RP410\RP410Y\RP410C\RP411 Driver Installation and Use Tutorial Ro n g t a Te ch n o l o g y (X i a m e n ) Gr o u p Co . , Lt d. V1.0 www.rongtatech.com...
- Page 2 as shown in the figure below: Click NiceLabel Printer Drivers to install the bar code printer driver. Click "Next", and select Install/Uninstall.
- Page 3 Select “Install Printer” to view the License Agreement. Click "Next", as shown in the figure below:...
- Page 4 Select the printer driver of the corresponding model. RONGTA RP4XX share the same installation instructions. Take RONGTA RP4XX as an example. Select the communication port, and select different ports according to the different data connection lines.
- Page 5 Please select Lpt1 for parallel port connection, and select the port according to whether the machine is expanded. Please select com1 for serial port connection Please select USB for USB cable connection. Please note that the USB interface is a virtual printing port of the system. In the actual operation, you need to ensure that the printer USB cable is connected and the printer is powered on.
- Page 6 To use the network port, please choose to add a TCP / IP port, as follows: Then click “Next”, as shown in the figure below.
- Page 7 Enter the “IP address” of the printer, as shown in the figure below. Then click “Next”, as shown in the figure below. Then click “Next”, as shown in the figure below.
- Page 8 Finally click “Finish” to add the Ethernet communication port successfully which can be selected, as shown in the figure below: If you select the serial port (COM port), you need to select the port tab in the...
- Page 9 installed driver properties page, and then select the “Configuration Port”. Select serial communication parameters “bits per second”, “data bits”, “parity check”, “stop bit”, “data flow control”, etc. The factory default parameters are shown in the figure below. You can view the serial communication parameters information, such as “Serial 9600, N,8,1”, on the printer power-on self-test page.
- Page 10 If there are multiple USB virtual ports within the driver port when using USB connection, as shown in the figure below:...
- Page 12 Follow the following steps to try to connect the printer: First, click “Print Test Page” in the “General” tab of the Printer Properties. Then, check the status of the print task. If normal, the test page will disappear in a short time and the printer will print. If the port is incorrect, the status will show “Error-Printing”, as shown in the figure below:...
- Page 13 .Return to the “Port” tab of the Printer Properties, check another USB virtual port, click “Apply” in the lower right corner, wait for a while, and the test page task will restart. If the port corresponds, the task will disappear and the printer will print.
- Page 14 Open the “Properties” window of the printer, as shown in the figure below. Click “Preferences”. Adjust “Print speed” and “Print density” according to the actual paper and consumables used; especially when using the thermal transfer printing method, the conjunction of print speed and density has an impact on the printing effect. In the “Size”...
- Page 15 Click the “Advanced Settings” tab. Select according to the type of paper actually used. For label paper with spacing, select “Spacing”; for paper with black mark on the back, select “Black Mark”; and for continuous paper, select “Continuous”. For the media setting field, it is recommended to keep the default settings because the printer will automatically detect which media is used after the printer is turned on, and subsequent printing will continue based on the current media.
- Page 16 Click “Others” Adjust the “Length” parameter in the “Spacing/Black Mark” field according to the height of the gap between labels on the label paper used by the user. After completing the above settings, click “OK” to close the “Preferences” settings. In the “General” tab of the driver properties, click "Print Test Page" to observe the print quality after the above settings, and determine whether it conforms to the paper material and size.
- Page 17 2.If the label content has left/right offset in addition to the upward/downward offset, you can select the printer “Properties” - “Printing Preferences” - “Advanced Settings”- “Others”, and set the reference coordinates offset. For the label direction, if only the vertical is selected, the coordinate origin is in the upper left corner of the paper exit direction, and if the label rotates 180 degrees vertically, the origin is in the lower right corner of the paper exit direction.
- Page 18 Adjustment of graphic effect: Select the printer “Properties” - “Printing Preferences”- “Dithering”. When different types are selected, the printed graphics have different print quality. Adjust according to the actual effect. Settings of Bar Code Font and Command Font: This setting is mainly a way to convert text to a bar code or direct command in the printer when the corresponding font is specified in the application.
- Page 19 You can create, change or delete the defined bar code font. The parameters include the bar code type, direction, size, identification code, aspect ratio, etc. Command font also has similar adjustments, as shown in the figure below:...
- Page 21 Settings of Customized Command: Select the printer “Properties” - “Printing Preferences”- “Customized Command”. This setting page is used to insert a customized commands or command file at different locations of driver print tasks. You can add the required command before and after the document or page according to your needs.
- Page 22 Warning: The contents of this Manual shall not be changed at will without consent. Rongta Technology (Xiamen) Group Co., Ltd reserves the right to change the product in terms of technologies, parts, software and hardware. Please contact the dealer for further information of the product. No part of this Manual shall be reproduced or spread in any form or by any means without permission.
