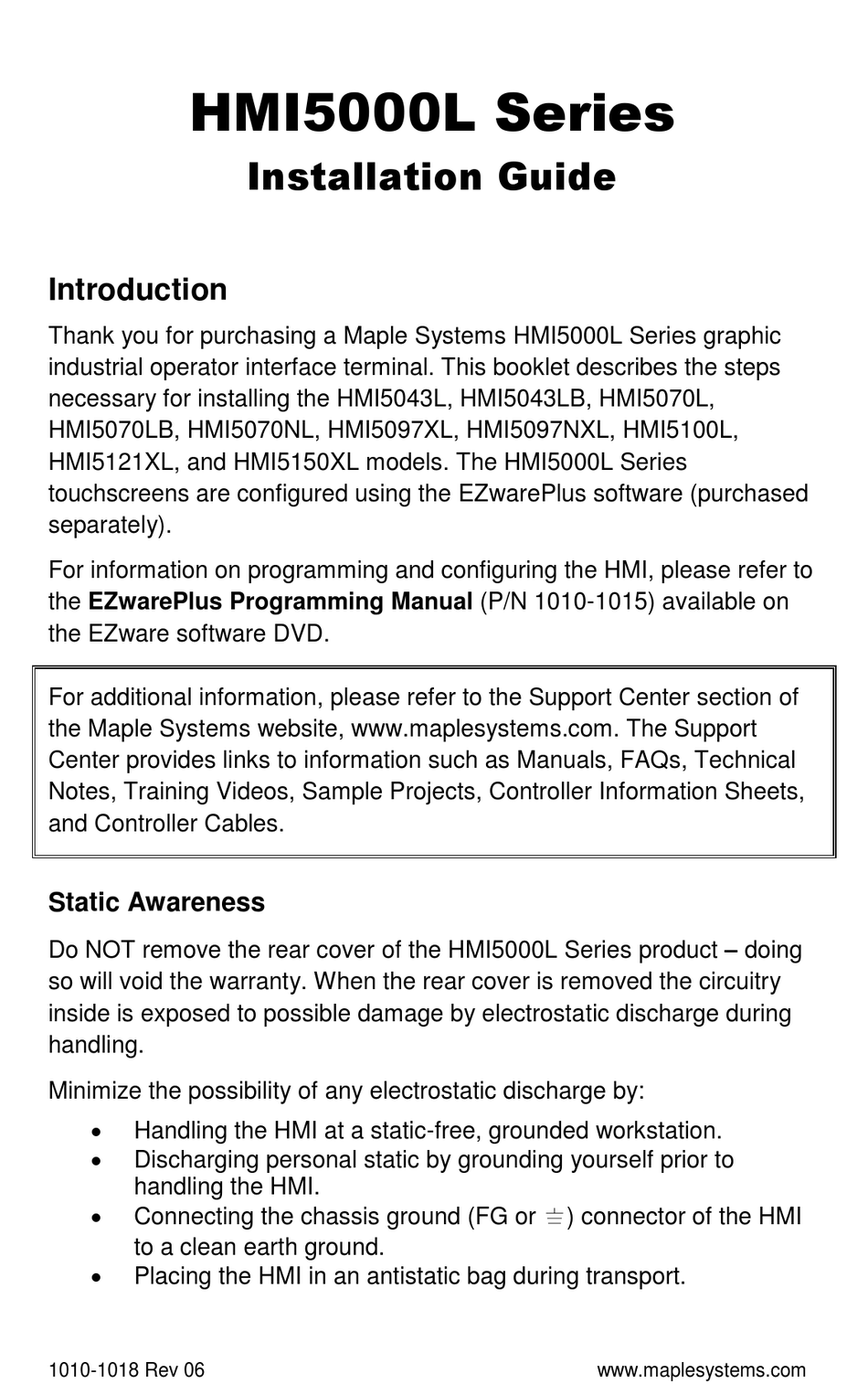

HMI5000L Series
Introduction
Thank you for purchasing a Maple Systems HMI5000L Series graphic
industrial operator interface terminal. This booklet describes the steps
necessary for installing the HMI5043L, HMI5043LB, HMI5070L,
HMI5070LB, HMI5070NL, HMI5097XL, HMI5097NXL, HMI5100L,
HMI5121XL, and HMI5150XL models. The HMI5000L Series
touchscreens are configured using the EZwarePlus software (purchased
separately).
For information on programming and configuring the HMI, please refer to
the EZwarePlus Programming Manual (P/N 1010-1015) available on
the EZware software DVD.
For additional information, please refer to the Support Center section of
the Maple Systems website, www.maplesystems.com. The Support
Center provides links to information such as Manuals, FAQs, Technical
Notes, Training Videos, Sample Projects, Controller Information Sheets,
and Controller Cables.
Static Awareness
Do NOT remove the rear cover of the HMI5000L Series product – doing
so will void the warranty. When the rear cover is removed the circuitry
inside is exposed to possible damage by electrostatic discharge during
handling.
Minimize the possibility of any electrostatic discharge by:
Handling the HMI at a static-free, grounded workstation.
Discharging personal static by grounding yourself prior to
handling the HMI.
Connecting the chassis ground (FG or ⏚) connector of the HMI
to a clean earth ground.
Placing the HMI in an antistatic bag during transport.
1010-1018 Rev 06
Installation Guide
www.maplesystems.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maple Systems HMI5097XL
Summary of Contents for Maple Systems HMI5097XL
- Page 1 HMI5000L Series Installation Guide Introduction Thank you for purchasing a Maple Systems HMI5000L Series graphic industrial operator interface terminal. This booklet describes the steps necessary for installing the HMI5043L, HMI5043LB, HMI5070L, HMI5070LB, HMI5070NL, HMI5097XL, HMI5097NXL, HMI5100L, HMI5121XL, and HMI5150XL models. The HMI5000L Series touchscreens are configured using the EZwarePlus software (purchased separately).
-
Page 2: Unpacking The Unit
If Maple Systems is unable to repair or replace a nonconforming product, a refund may be offered in the amount paid to Maple Systems for such product in full satisfaction of its warranty obligation. Maximum liability of Maple Systems is the cost of the product. -
Page 3: Nema Rating
HMI5000L Installation Guide Information furnished by Maple Systems is believed to be accurate and reliable. However, no responsibility is assumed by Maple Systems for the use of this information, or for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication, or otherwise, under any patent or patent rights of Maple Systems. -
Page 4: Environmental Considerations
HMI5000L Installation Guide Environmental Considerations The HMI5000L is designed to operate in temperatures from 0° to 50°C (32° to 122°F). It is intended for indoor installations and may not be suitable for use in certain outdoor applications. Avoid installing the HMI5000L touchscreens in environments with severe mechanical vibration or shocks. -
Page 5: Control Panel Design Guidelines
HMI5000L Installation Guide Control Panel Design Guidelines Pay careful attention to the placement of system components and associated cable routing. This can significantly enhance the performance and integrity of the control application. Cable Routing and Noise Immunity Follow these guidelines when routing cables to the HMI: ... - Page 6 HMI5000L Installation Guide Figure 1: Typical Panel Layout 1010-1018 Rev 06 www.maplesystems.com...
-
Page 7: Control Panel Grounding
For a more in-depth overview of ground wiring techniques, refer to Technical Note #1027, “OIT Ground Wiring and Electrical Noise Reduction” in the Technical Notes section of the Maple Systems website. Installation It is necessary to follow all installation procedures described in this chapter for electrical noise immunity and CE compliance. - Page 8 HMI. The power cable for the HMI should be 18AWG, 2-conductor wire with a shield drain wire and protective shield (foil/braid). Cable (P/N 6030-0009) may be purchased by the foot from Maple Systems for constructing power cables. Always run the DC ground wire directly back to the signal return of the power supply.
-
Page 9: Panel Preparation
Cutout dimensions for each particular HMI model are available for print and download from the Support Center-Dimensional Drawings section of the Maple Systems website. The area of the panel or mounting surface where the gasket comes into contact must be flat and free of scratches, pits, and other features that prevent the gasket from sealing properly. -
Page 10: Configuration Wiring
USB cable can complete a ground loop that may damage the HMI and PC. We recommend using the Maple Systems USB Configuration Cable (P/N 7431-0115) to connect the HMI to the PC. The shield is not connected between the two ends of the cable, which will prevent a potentially damaging ground loop from occurring between the devices. -
Page 11: Maintenance
This mode is used when replacing or reinstalling the operating system. All units have an Upgrade OS button in the system menus. Contact Maple Systems for more information. Fusing Requirements If the display does not come on within two seconds of power up, remove power. - Page 12 HMI5000L Installation Guide USB Stick Clamp (not on all models) The USB Stick Clamp prevents a USB stick from disconnecting from the HMI due to vibration. Steps: 1. Insert the USB stick connector into the clamp and secure with the included zip tie.
-
Page 13: Serial Port Connections
HMI5000L Installation Guide Serial Port Connections The following diagrams indicate the proper pin connections for the serial ports of the HMI5000L Series. Serial Port Pinouts DE9P COM1 COM1 COM1 COM3 Pin# [RS-232] [RS-485 4 wire] [RS-485 2 wire] [RS-485 2 wire] TX/RX- TX/RX+ TX/RX-... - Page 14 HMI5000L Installation Guide Serial Port Pinouts (cont.) DE9P DE9S COM2 COM2 COM3 CAN Bus COM1 Pin# Pin# [RS-485 2 wire] [RS-485 4 wire] [RS-485 2 wire] (HMI5097XL only) [RS-232] TX/RX- TX/RX+ TX/RX- CAN_L CAN_H TX/RX+ HMI5070NL HMI5097XL, HMI5097NXL 1010-1018 Rev 06 www.maplesystems.com...
- Page 15 HMI5000L Installation Guide 1010-1018 Rev 06 www.maplesystems.com...
- Page 16 Maple Systems Inc. 808 134 Street SW, Suite 120 Everett, WA 98204-7333 Phone: (425) 745-3229 Email: maple@maplesystems.com Web: www.maplesystems.com © 2015 Maple Systems Inc. All rights reserved.
