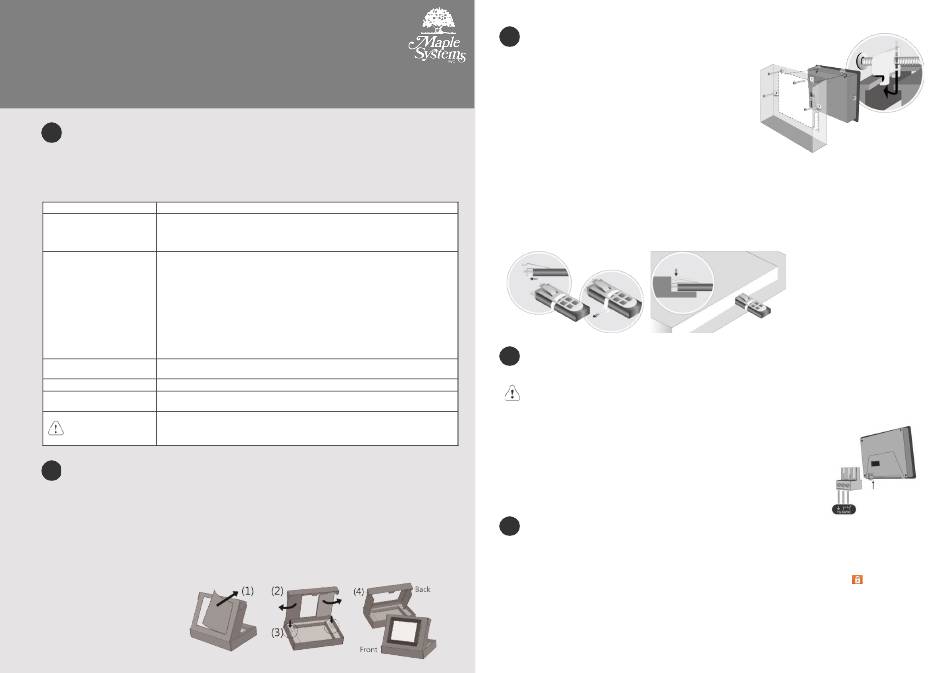

Maple Systems cMT3092Xv2 Series Installation Instruction

cMT3092Xv2 series
1 Installation and Startup Guide
This document covers the installation of cMT3092Xv2 Series HMI, for the detailed specifications
and operation, please refer to Datasheet, Brochure and EasyBuilder Pro User Manual. Please
read all warnings, precautions, and instructions on the device carefully before use.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated (indoor use only).
The HMI product has been tested to conform to European CE
Electrical Environment requirements. This means that the circuitry is designed to resist the effects
of electrical noise. This does not guarantee noise immunity in severe
cases. Proper wire routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the
operating limits are followed. Avoid installing units in
environments where severe mechanical vibration or shocks are
present.
(2) Do not operate the unit in areas subject to explosion hazards
Environmental
due to flammable gases, vapors or dusts.
Considerations
(3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on
the flat surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Operating Altitude
Below 3,000 m (9842.52 ft.), atmospheric pressure is 70.1 kPa.
(Atmospheric Air Pressure)
IP rating IP 66
Cleaning Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations cleaning.
Protection impairment if used in a manner not specified by the
manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1 (2) Human Machine Interface *1 (3) Power Connector *1
(4) Brackets & Screws *1 pack (5) USB Stick Clamp & Tying Strap *1
The packing box can be transformed into an HMI stand. Please follow the steps to make the stand.
1. Remove the center of the box cover along the perforated line.
2. Pull the two inner flaps.
3. Press down along the
perforated line inside the box.
4. Complete the stand as shown.
Installation Instruction
Installation Instructions
3
Use a control box that provides enough stiffness. Cutout
Dimension: 250 mm x 192 mm. Secure the operator panel in
position, using all the fastening holes and the provided
brackets and screws. Screw Torque: 2.6 ~ 3.9 lbf.in. (For
reaching waterproof effect and preventing the panel from being
deformed.)
Plan for adequate space around the unit and inside the
enclosure, for ventilation and cables. Consider the heat from
other devices inside the enclosure. The ambient temperature
around the unit must be 0 ~ 50°C
Minimum required clearances (along the overlay): Top / Bottom / Sides 15 mm
Maximum panel thickness: 4.5 mm
USB Stick Clamp Usage
Combining the USB Stick with the clamp and the tying strap can prevent USB stick from disconnecting
with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.
Power Connections
4
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
NOTE:
1. Connect positive DC line to the '+' terminal and the DC ground to the
'-' terminal.
2. When downloading project using a USB cable, do not connect HMI
with PLC and PC simultaneously, for electric potential difference may
result in damage to HMI or PC.
System Settings
5
When the HMI powers up and displays an image, tap the round Start Button in the upper-left corner to open
the Setting page. To configure the network, go to the Network tab. If the OS version is 20231201 or later,
tap "configure", and a login window will appear. The settings can be modified by entering the system
password (default: 111111). If the OS version is earlier than 20231201, tap the lock icon
and log in to make changes. In the Setting page, you can see device information, configure general settings,
set HMI Time/Date/Name, and more.
Spécifications du connecteur d'alimentation:
AWG de fil: 24 ~ 12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
