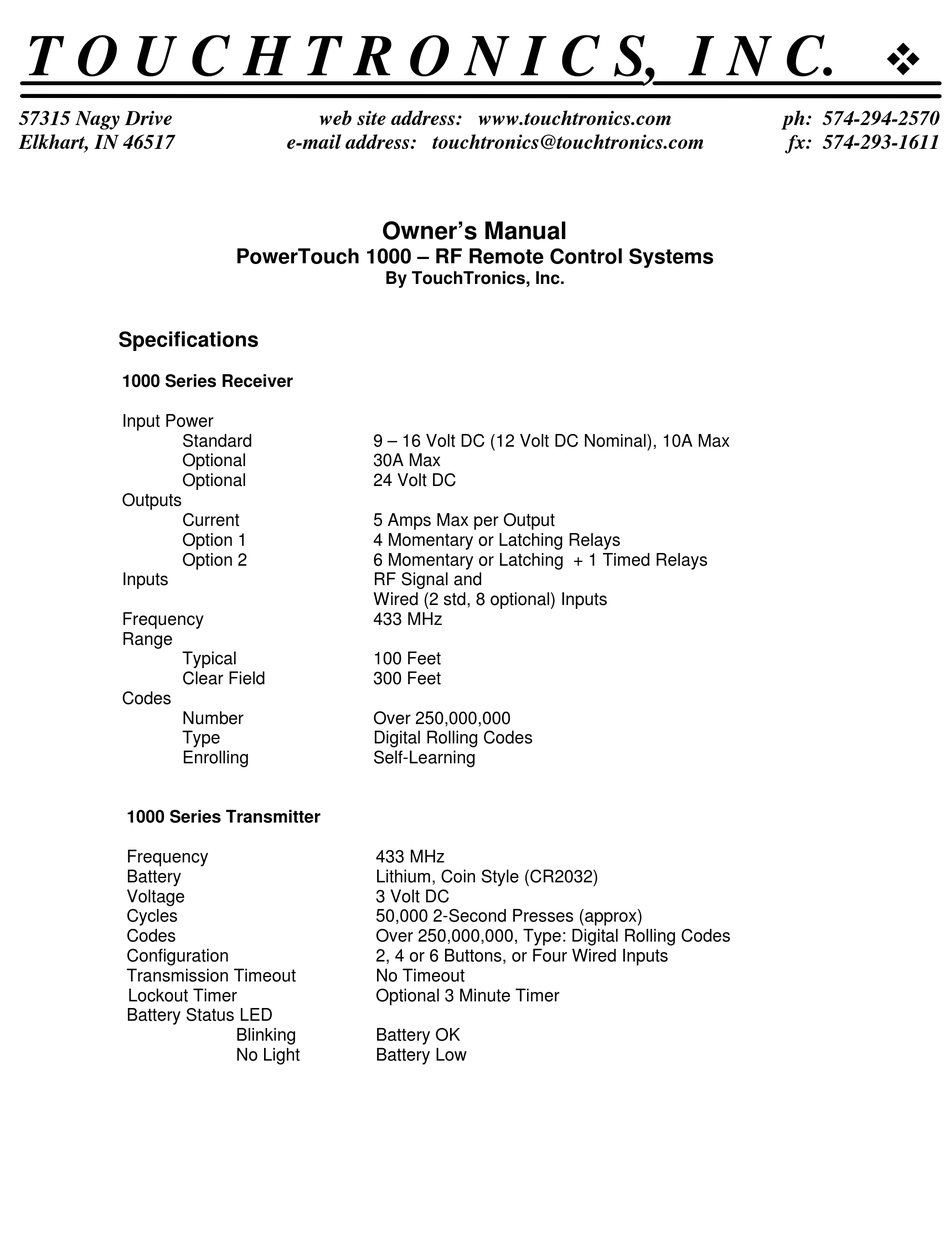

TouchTronics PowerTouch 1000 Owner's Manual

T O U C H T R O N I C S, I N C.
57315 Nagy Drive
Elkhart, IN 46517
Specifications
1000 Series Receiver
Input Power
Standard
Optional
Optional
Outputs
Current
Option 1
Option 2
Inputs
Frequency
Range
Typical
Clear Field
Codes
Number
Type
Enrolling
1000 Series Transmitter
Frequency
Battery
Voltage
Cycles
Codes
Configuration
Transmission Timeout
Lockout Timer
Battery Status LED
web site address: www.touchtronics.com
e-mail address: touchtronics@touchtronics.com
Owner's Manual
PowerTouch 1000 – RF Remote Control Systems
By TouchTronics, Inc.
9 – 16 Volt DC (12 Volt DC Nominal), 10A Max
30A Max
24 Volt DC
5 Amps Max per Output
4 Momentary or Latching Relays
6 Momentary or Latching + 1 Timed Relays
RF Signal and
Wired (2 std, 8 optional) Inputs
433 MHz
100 Feet
300 Feet
Over 250,000,000
Digital Rolling Codes
Self-Learning
433 MHz
Lithium, Coin Style (CR2032)
3 Volt DC
50,000 2-Second Presses (approx)
Over 250,000,000, Type: Digital Rolling Codes
2, 4 or 6 Buttons, or Four Wired Inputs
No Timeout
Optional 3 Minute Timer
Blinking Battery OK
No Light Battery Low
v
ph: 574-294-2570
fx: 574-293-1611
