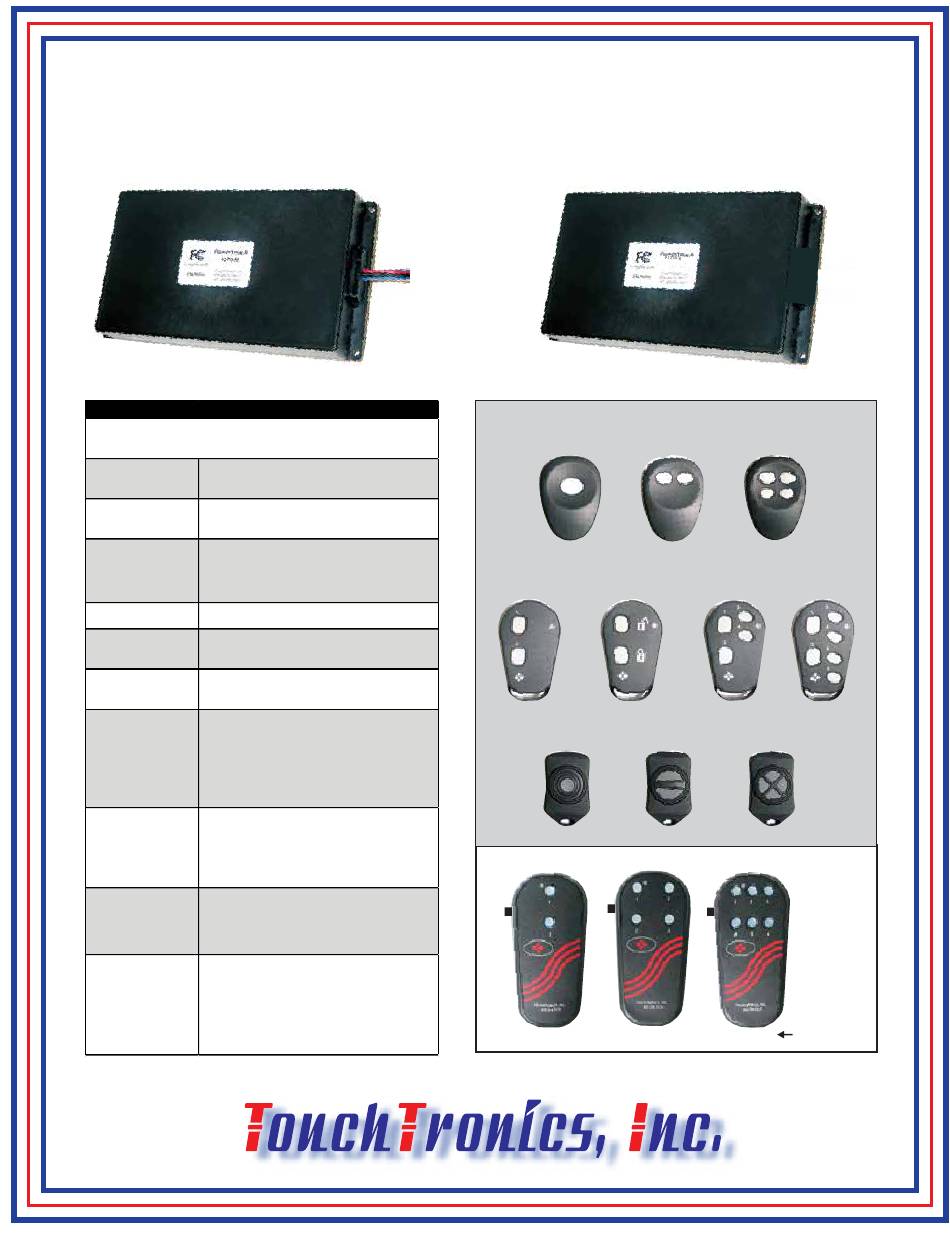

POWERTouch
Radio Frequency (RF) Remote Control System
Sealed
P1210-R6
SYSTEM SPECIFICATIONS
Model # P1210-R6 & # P1230-R
(see page 2 for model number chart)
300 feet typical
RANGE
Up to 600 feet
6 Relays - P1210-R6
OUTPUT
7 Relays - P1230-R
RANGE
INPUT
2 (+12v) A1 & A2
OUTPUT
OPTIONAL
6 (+12v or Ground) B1-B6
INPUT
FREQUENCY
433 MHz
Rolling Codes
CODES
Secure Encryption
CODES
12 VDC
VOLTAGE
24 VDC (Special Order)
VOLTAGE
OUTPUT
• 5 Amps Max per Output
CURRENT
INPUT
• 10 Amp - Standard
• 30 Amp - Optional
Fixed - Standard
ANTENNA
TNC Whip
OPTIONAL
Flex Whip / Roof Mount
ANTENNA
Flex Whip / Glass Mount
9" Standard, 14 Pin Connector Standard
HARNESS
2 Pin Connector Optional
HARNESS
6 Pin Connector Optional
All transmitter styles (except TX style)*
• Coin Style, Lithium, CR2032
BATTERY
BATTERY
• 100,000 1-second pulses
• 10 year shelf life
*TX Style - 9V
57315 Nagy Dr
Elkhart, IN 46517
TM
SERVICE MANUAL
Harness w/
Sealing Gasket
Receiver can be paired to any transmitter below
P1000-TF2
www.touchtronics.com
NST13308-P1200_A
2020-06-10
P1200 Series
Sealed
P1230-R
TK Sealed Transmitters
P1000-TK1
P1000-TK2
TF Sealed Transmitters
P1000-TF2-LK
TM Transmitters
P1000-TM1
P1000-TM2
TX Transmitters
P1000-TX4S
P1000-TX2S
Page 1
P1000-TK4
P1000-TF4
P1000-TF6
P1000-TM4
P1000-TX6S
With ON/OFF Switch
800-294-2570
574-294-2570

Advertisement

loading
Need help?

Need help?

Do you have a question about the POWERTouch P1200 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TouchTronics POWERTouch P1200 Series

  • Page 1 All transmitter styles (except TX style)* • Coin Style, Lithium, CR2032 BATTERY BATTERY • 100,000 1-second pulses • 10 year shelf life P1000-TX4S P1000-TX6S P1000-TX2S With ON/OFF Switch *TX Style - 9V 57315 Nagy Dr 800-294-2570 Elkhart, IN 46517 574-294-2570 www.touchtronics.com NST13308-P1200_A 2020-06-10 Page 1...
  • Page 2 SYSTEM OPERATION • Each time a button is pressed on the ransmitter, the corresponding output will turn ON. For example, if button #1 is pressed, Output #1 will turn ON as long as the button is pressed. • If an input signal is sent to inputs A1 or A2 or any inputs B1-B6, the corresponding output will turn ON as long as the signal is present (A1 or B1 = Output #1 is ON;...
  • Page 3 ON = Latching (Optional) #10 x 3/4” Screw CHASSIS GROUND #10 3/16” Star Washer #10 3/16” Ring Terminal Scrape paint and clean area before installing ground screw Vehicle Frame Call Factory for Custom Applications TouchTronics, Inc. 1-800-294-2570 Page 3 NST13308-P1200_A 2020-06-10...
  • Page 4 A return material authorization number (RMA) must be issued by seller before any product is returned for evaluation or repair. Warranty repairs must be completed at authorized repair facilities. © 2005 TouchTronics, Inc. All Rights Reserved. TouchTronics, the TouchTronics logo, and other TouchTronics marks are owned by TouchTronics and may be registered. TouchTronics assumes no responsibility for any errors that may appear in this manual.
