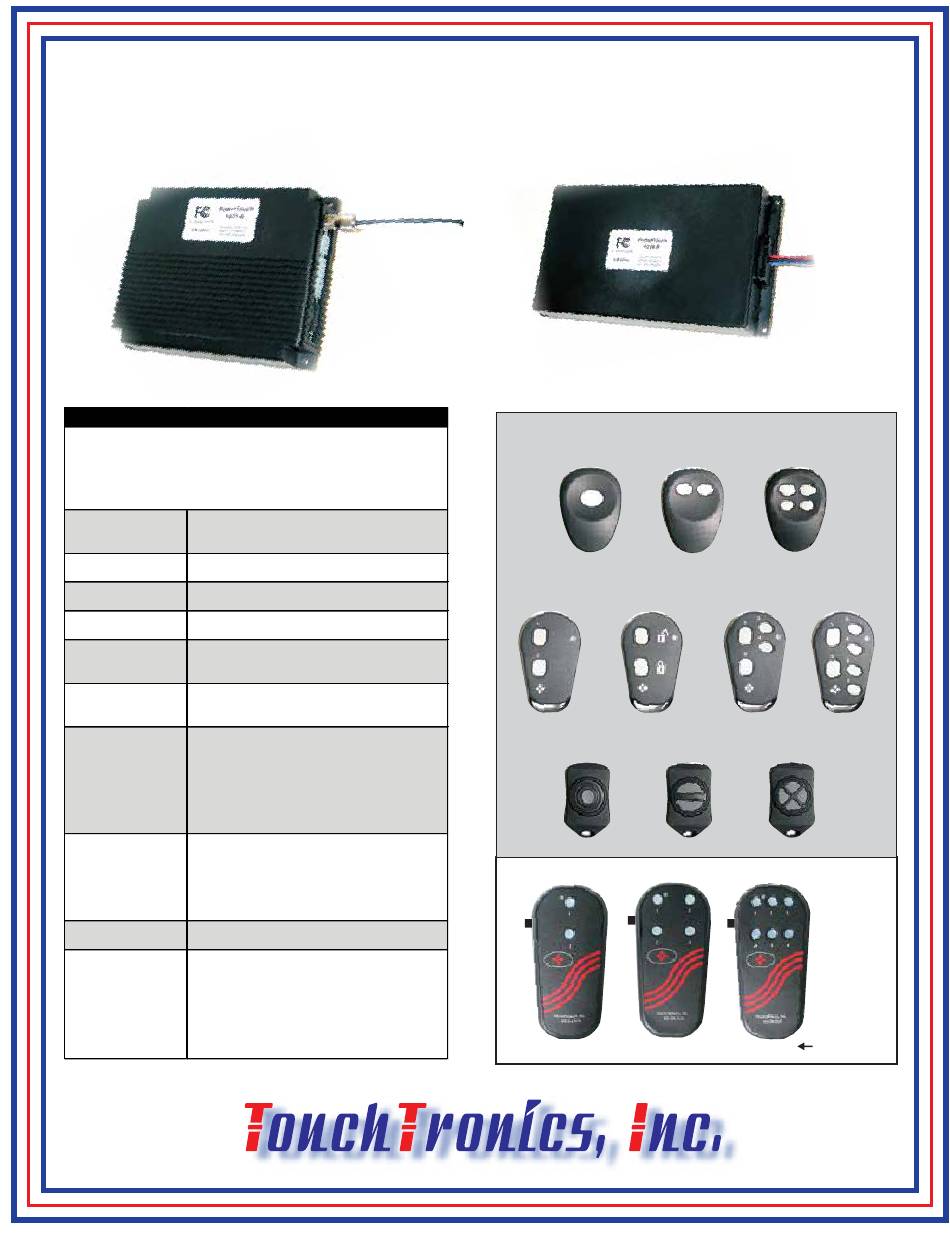

POWERTouch P1050 / 1250 Series
Radio Frequency (RF) Remote Control System
Not Sealed
P1050-R
SYSTEM SPECIFICATIONS
Reversal Rest @ Ground Outputs
Model # P1050-R (not sealed)
Model # P1250-R (sealed)
(see page 2 for model number chart)
300 feet typical
RANGE
Up to 600 feet
OUTPUT
4 Relays
INPUT
2 (+12v) A1 & A2
FREQUENCY
433 MHz
Rolling Codes
CODES
Secure Encryption
12 VDC
VOLTAGE
24 VDC (Special Order)
OUTPUT
• 5 Amps Max per Output
CURRENT
INPUT
• 10 Amp - Standard
• 30 Amp - Optional
Fixed - Standard
ANTENNA
TNC Whip (shown on P1050-R)
OPTIONAL
Flex Whip / Roof Mount
Flex Whip / Glass Mount
HARNESS
9" Standard, 14 Pin Connector Standard
All transmitter styles (except TX style)*
• Coin Style, Lithium, CR2032
BATTERY
• 100,000 1-second pulses
• 10 year shelf life
*TX Style - 9V
57315 Nagy Dr
Elkhart, IN 46517
TM
SERVICE MANUAL
www.touchtronics.com
NST13308-P1050-1250_A
2020-06-10
Sealed
P1250-R
Receiver can be paired to any transmitter below
TK Sealed Transmitters
P1000-TK1
P1000-TK2
TF Sealed Transmitters
P1000-TF2
P1000-TF2-LK
TM Transmitters
P1000-TM1
P1000-TM2
TX Transmitters
P1000-TX4S
P1000-TX2S
Page 1
P1000-TK4
P1000-TF4
P1000-TF6
P1000-TM4
P1000-TX6S
With ON/OFF Switch
800-294-2570
574-294-2570
