POWERTouch
Radio Frequency (RF) Remote Control System

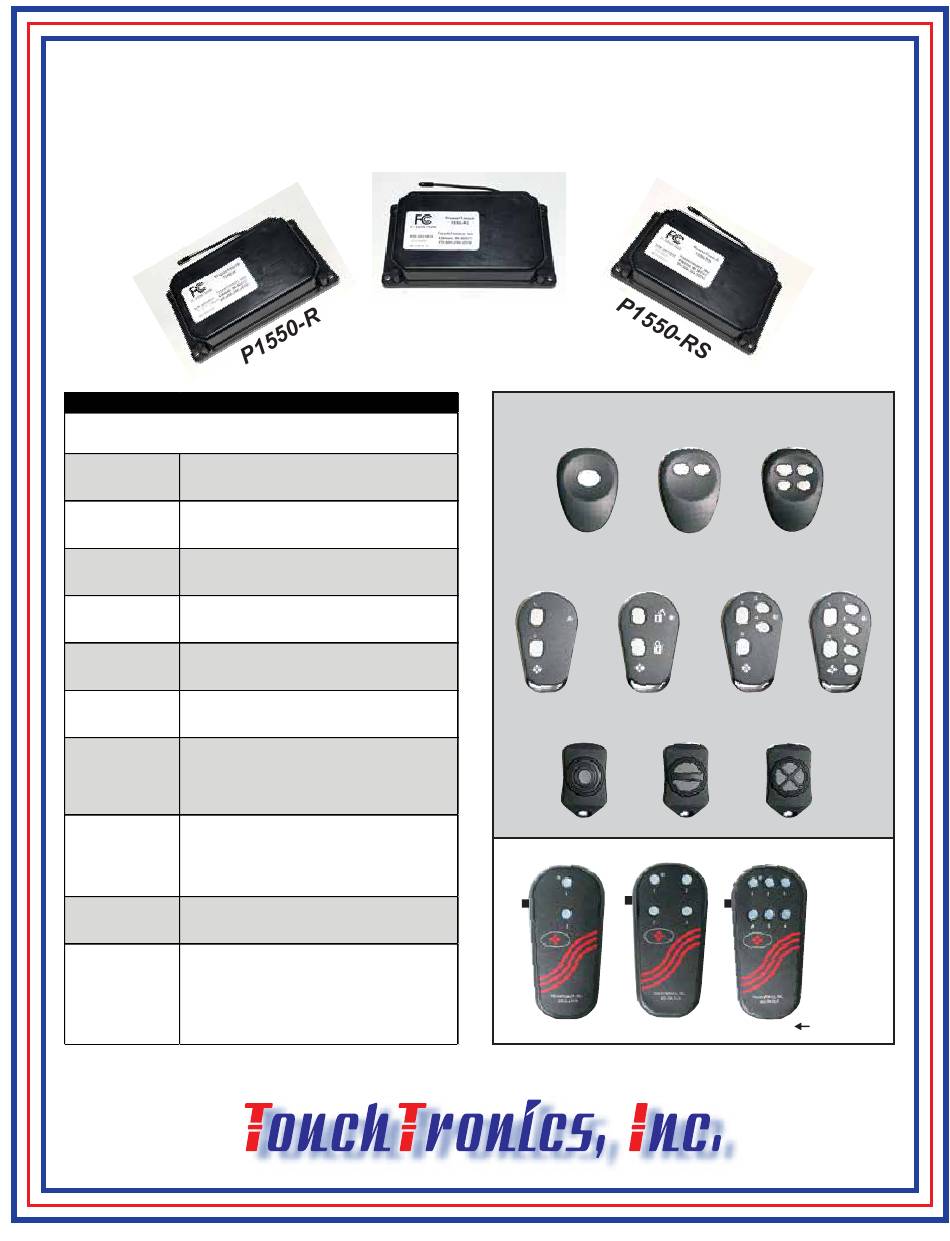

SYSTEM SPECIFICATIONS
Model # P1500 Series
(see page 2 for model number chart)
300 Feet Typical
RANGE
Up to 600 Feet
OUTPUT
4 Relays, Positive, 5A
INPUT SIGNAL
2 (+12v) A1 & A2
FREQUENCY
433 MHz
Rolling Codes
CODES
Secure Encryption
VOLTAGE
+12VDC
OUPUT
• 5 Amps Max per Output, (Relay)
CURRENT
INPUT
• 10 Amps (Max)
Fixed - Standard (shown)
ANTENNA
TNC Whip
OPTIONAL
Flex Whip / Roof Mount
Flex Whip / Glass Mount
HARNESS
9" Standard, 10 pin connector, 18AWG
All transmitter styles (except TX style)*
• Coin Style, Lithium, CR2032
BATTERY
• 100,000 1-second pulses
• 10 year shelf life
*TX Style - 9V
57315 Nagy Dr
Elkhart, IN 46517
TM
SERVICE MANUAL
P1550-R2
P1000-TX2S
www.touchtronics.com
NST13308-P1550_A
2020-06-10
P1550 Series
Receiver can be paired to any transmitter below
TK Sealed Transmitters
P1000-TK1
P1000-TK2
TF Sealed Transmitters
P1000-TF2
P1000-TF2
P1000-TF2-LK
TM Transmitters
P1000-TM1
P1000-TM2
TX Transmitters
P1000-TX2
P1000-TX4S
P1000-TX2S
Page 1
Product is
3" x 5" x 1"
P1000-TK4
P1000-TF4
P1000-TF6
P1000-TM4
P1000-TX6S
With ON/OFF Switch
800-294-2570
574-294-2570
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TouchTronics POWERTouch P1550 Series
Summary of Contents for TouchTronics POWERTouch P1550 Series
- Page 1 • Coin Style, Lithium, CR2032 BATTERY • 100,000 1-second pulses • 10 year shelf life P1000-TX2 *TX Style - 9V P1000-TX4S P1000-TX6S P1000-TX2S With ON/OFF Switch P1000-TX2S 57315 Nagy Dr 800-294-2570 Elkhart, IN 46517 574-294-2570 www.touchtronics.com NST13308-P1550_A 2020-06-10 Page 1...
- Page 2 SYSTEM OPERATION P1550-R (Standard) • Each time a button is pressed on the transmitter, the corresponding output will turn ON. For example, if button #1 is pressed, Output #1 will turn ON as long as the button is held. • If an input signal is sent to inputs A1 or A2, the corresponding output will turn ON as long as the signal is present. (A1 = Output #1 is ON.
- Page 3 Output 3 5 Amp J1-8 *USER SELECTABLE Output 4 J1-9 NOT USED P1550 RELAY USER SELECTED OUTPUTS Call Factory for Custom Applications Touchtronics, Inc. 1-800-294-2570 POWER FUSED AT 10AMPS Output 1 J1-6 +12V / A1 Output 2 J1-7 +12V / A2...
