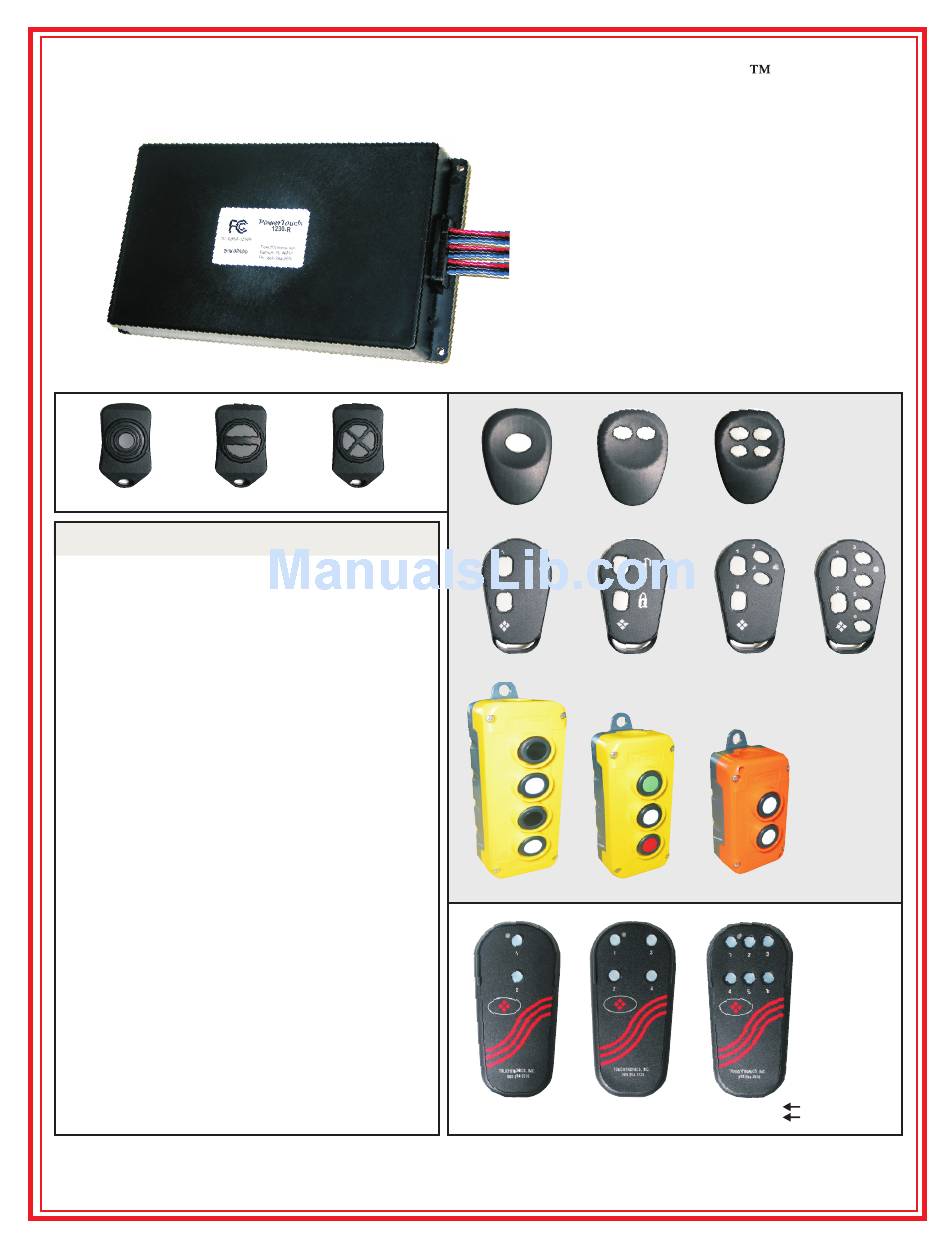

TouchTronics 1210-R Service Manual

P1000-TM1 P1000-TM2

System Specifications

Model # P12xx-R Sealed
(see pg 2 for model number chart)
Range - 300 Feet Typical
- Up to 600 Feet
Output - 4 Relays
Optional - 7 Relays
Input - 2 (+12v) A1 & A2
Optional - 6 (+12v or Ground) B1 - B6
.
Frequency - 433MHz
Codes - Rolling Codes
- Secure Encryption
Voltage - 12VDC
- 24VDC
Current - 5 Amps Max per Output
- 10 Amp Input - Standard
- 30 Amp Input - Optional
Antenna - Fixed - Standard (shown)
Optional - TNC Whip
- Flex Whip / Roof Mount
- Flex Whip / Glass Mount
Harness - 9" Standard, 14 pin
Battery - All transmitter styles
- Coin Style, Lithium, CR2032
- 100,000 1-second pulses
- 10 year shelf life
- TR Style - 2 x "AA" Batteries
T ouch ronics, nc. T
POWERTouch 1200
Harness w/
Sealing Gasket
P1000-TM4
(except TR style)
I
57315 Nagy Drive
Elkhart, IN 46517
Radio Frequency (RF)
Remote Control System
Sealed Receiver:
Moisture & Dust
P1000-TK1 P1000-TK2
P1000-TF2 P1000-TF2-LK
P1000-TR4 P1000-TR3
P1000-TX2 P1000-TX4
P1000-TX2S P1000-TX4S
www.touchtronics.com
touchtronics@touchtronics.com
Service Manual
TK, TF & TR Series
Sealed
Transmitters
P1000-TK4
P1000-TF4 P1000-TF6
P1000-TR2
P1000-TX6 No ON/OFF Switch
P1000-TX6S With ON/OFF Switch
Ph: 800-294-2570
Fx: 574-293-1611
Manual NST11424-2
2010-04-05 Rev F
