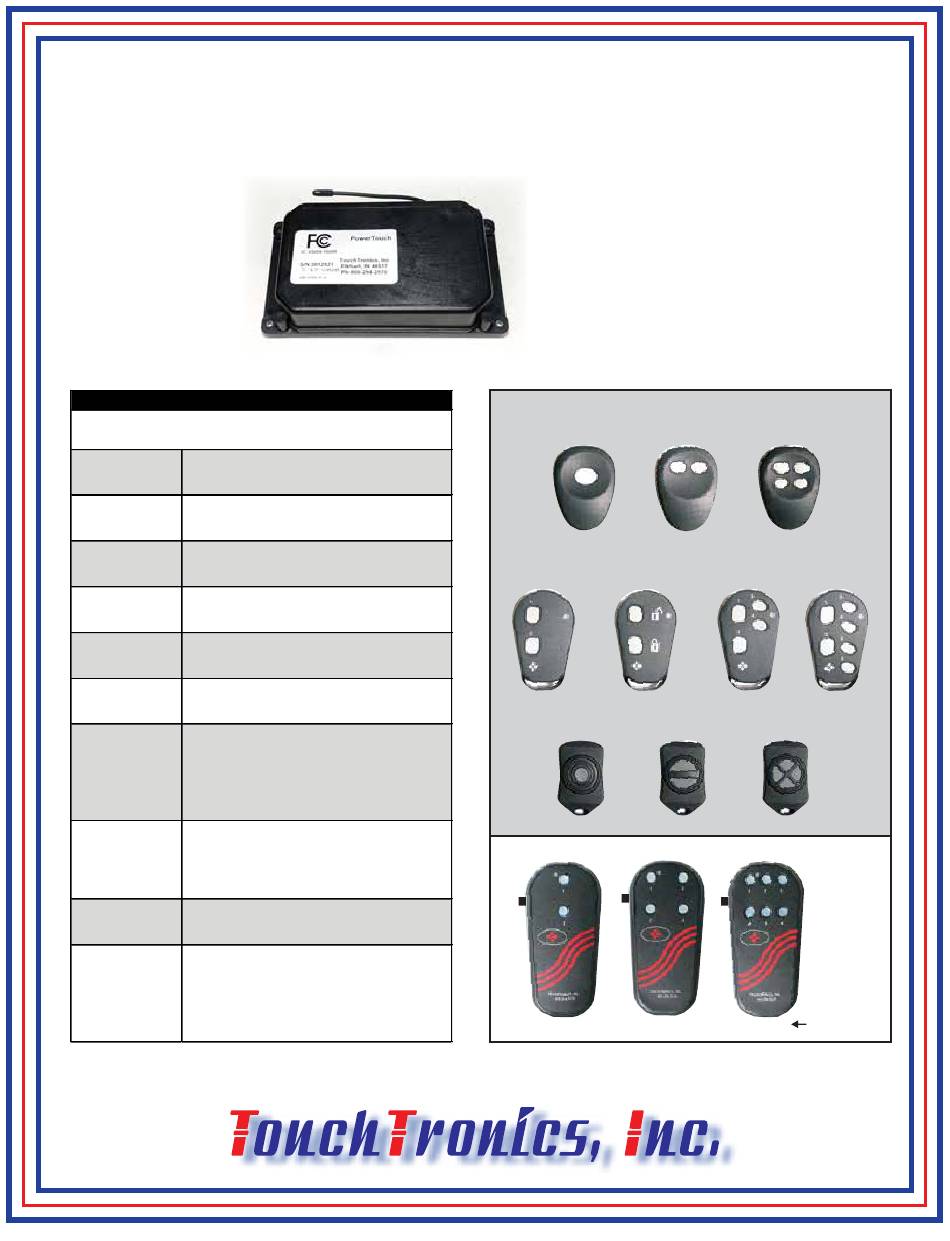

POWERTouch
Radio Frequency (RF) Remote Control System
SYSTEM SPECIFICATIONS
Model # P1555 Series
(see page 2 for model number chart)
300 Feet Typical
RANGE
Up to 600 Feet
OUTPUT
4 Relays, Positive, 5A
OPTIONAL
2 (+12v) A1 & A2
FREQUENCY
433 MHz
Rolling Codes
CODES
Secure Encryption
VOLTAGE
+12VDC or +24VDC
OUTPUT
• 30 Amps, K1 & K2
CURRENT
• 15 Amps, K3 & K4
INPUT
• 10mAmps
Fixed - Standard (shown)
ANTENNA
TNC Whip
OPTIONAL
Flex Whip / Roof Mount
Flex Whip / Glass Mount
HARNESS
9" Standard, 10 pin connector, 18AWG
All transmitter styles (except TX style)*
• Coin Style, Lithium, CR2032
BATTERY
• 100,000 1-second pulses
• 10 year shelf life
*TX Style - 9V
57315 Nagy Dr
Elkhart, IN 46517
TM
SERVICE MANUAL
P1555
Sealed
P1000-TX2S
www.touchtronics.com
www.touchtronics.com
NST13308-P1555_A
2020-06-10
P1555 Series
Product is
3" x 5" x 1"
Receiver can be paired to any transmitter below
TK Sealed Transmitters
P1000-TK1
P1000-TK2
TF Sealed Transmitters
P1000-TF2
P1000-TF2
P1000-TF2-LK
TM Transmitters
P1000-TM1
P1000-TM2
TX Transmitters
P1000-TX2
P1000-TX4S
P1000-TX2S
Page 1
P1000-TK4
P1000-TF4
P1000-TF6
P1000-TM4
P1000-TX6S
With ON/OFF Switch
800-294-2570
574-294-2570
