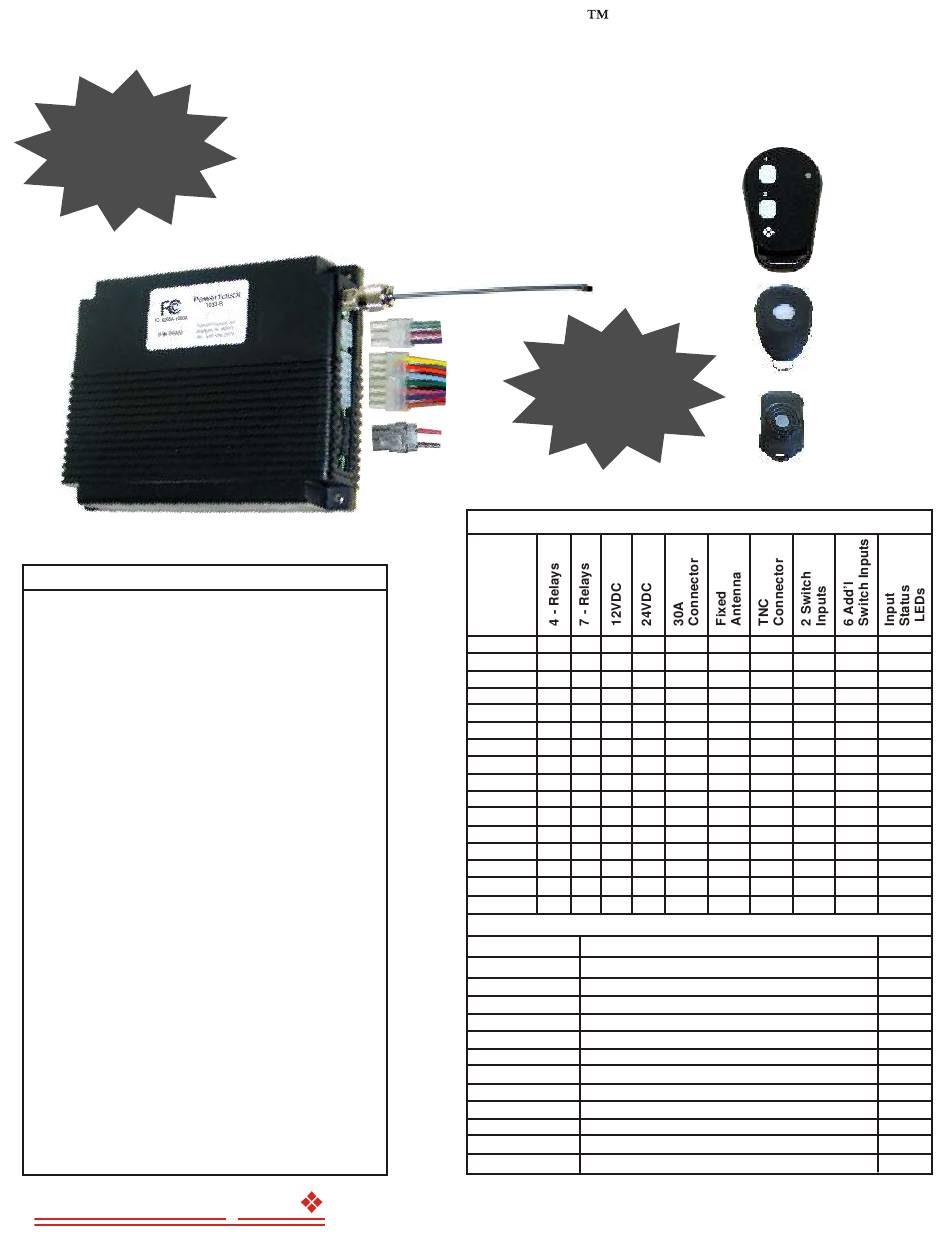

TouchTronics POWERTouch 1010-R Owner's Manual

POWERTouch 1000 POWERTouch 1000
Easy
Installation...
Reduces Costs
System Specifications
1000 Series Receiver Specifications
Voltage 9 - 16 Volt DC (12 Volt DC Nominal)
24 Volt DC Optional
Current 5A / Output - 10A System Max
Switch Inputs 2 (6 Additional Optional)
Outputs 4 or 7
Frequency 433 MHz
Antenna
Standard Fixed
Optional Removable 6" Whip / TNC
Exterior / 14' Cable
1000 Series System Specifications
Range-Pulsed 100 Feet Typical
300 Feet Clear Field
Range-Continuous 50 Feet Typical
Codes
Number Over 16,000,000
Type Digital Rolling Codes
Enrolling Self-Learning
1000 Series Transmitter Specifications
Frequency 433 MHz
Battery Lithium, Coin style (*CR2032)
Voltage 3 Volt DC
Battery Life 50,000 2-Second Presses
*All transmitter styles
1000 Series Physical Dimensions
Receiver Enclosures
Standard (unsealed) 6.50" x 5.50" x 1.00" (LxWxH)
Optional (sealed) 9.25" x 5.25" x 1.25" (LxWxH)
Transmitter Enclosures
Large Key Fob (sealed) 3.25" x 2.00" (LxW)
Oval (water resistant) 4.50" x 2.00" (LxW)
Small Key Fob (sealed) 2.60" x 2.00" (LxW)
Mini Key Fob 2.10" x 1.40" (LxW)
(water resistant)
TouchTronics, Inc.
RF Remote Control System
Owner's Manual
By TouchTronics, Inc.
57315 Nagy Drive, Elkhart, IN 46517, 1-800-294-2570
All Channels
are User
Programmable
Receiver Selection Chart
Receiver
Model
1010-R x x
1011-R x x
1012-R x x
1013-R x x
1020-R x x
1021-R x x
1022-R x x
1023-R x x
1030-R x x
1031-R x x
1032-R x x
1033-R x x
1040-R x x
1041-R x x
1042-R x x
1043-R x x
Transmitter Selection Chart
Model Description
1000-TF2 Large key fob, 2 button
1000-TF4 Large key fob, 4 button
1000-TF6 Large key fob, 6 button
1000-TX2(S) Oval hand-held, 2 button, (S) = power switch
1000-TX4(S) Oval hand-held, 4 button, (S) = power switch
1000-TX6(S) Oval hand-held, 6 button, (S) = power switch
1000-TK1 Small key fob, 1 button
1000-TK2 Small key fob, 2 button
1000-TK4 Small key fob, 4 button
1000-TM1 Mini key fob, 1 button
1000-TM2 Mini key fob, 2 button
1000-TM4 Mini key fob, 4 button
Oval Hand-Held Transmitter Not Shown
x x
x x
x x x
x x x
x x
x x
x x x
x x x
x x x
x x x
x x x x
x x x x
x x x
x x x
x x x x
x x x x
Manual NST11424-1
x
x
x
x
x
x
x
x
Sealed
x
x
x
x
x
x
Rev 2008-02-18
