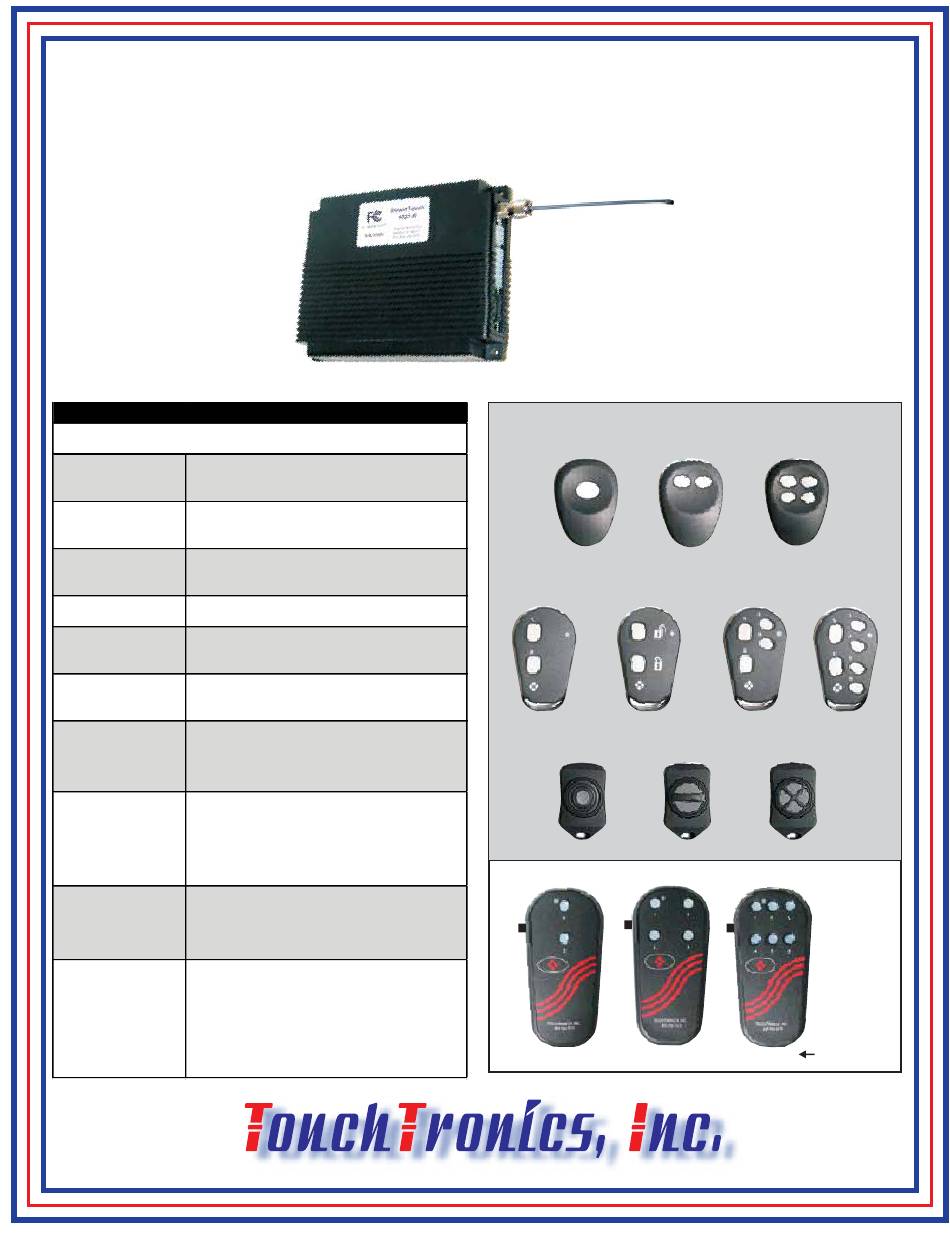

POWERTouch P1000 Series
Radio Frequency (RF) Remote Control System
SYSTEM SPECIFICATIONS
Model # P1010-R6, P1030-R
300 feet typical
RANGE
Up to 600 feet
OUTPUT
6 Relays
OPTIONAL
7 Relays
2 (+12v) A1 & A2
INPUT
6 (+12v or Ground) B1-B6
FREQUENCY
433 MHz
Rolling Codes
CODES
Secure Encryption
12 VDC
VOLTAGE
24 VDC (Special Order)
5 Amps Max per Output
CURRENT
10 Amp Input - Standard
30 Amp Input - Optional
Fixed - Standard
ANTENNA
TNC Whip (shown)
OPTIONAL
Flex Whip / Roof Mount
Flex Whip / Glass Mount
9" Standard, 14 Pin Connector Standard
HARNESS
6 Pin Connector Optional
2 Pin Connector Optional
All transmitter styles (except TX style)*
• Coin Style, Lithium, CR2032
BATTERY
• 100,000 1-second pulses
• 10 year shelf life
*TX Style - 9V
57315 Nagy Dr
Elkhart, IN 46517
TM
SERVICE MANUAL
Not Sealed
www.touchtronics.com
NST13308-P1000_A
2020-06-10
TNC Antenna
(Option)
Receiver can be paired to any transmitter below
TK Sealed Transmitters
P1000-TK1
P1000-TK2
TF Sealed Transmitters
P1000-TF2
P1000-TF2-LK
TM Transmitters
P1000-TM1
P1000-TM2
TX Transmitters
P1000-TX4S
P1000-TX2S
Page 1
P1000-TK4
P1000-TF4
P1000-TF6
P1000-TM4
P1000-TX6S
With ON/OFF Switch
800-294-2570
574-294-2570
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TouchTronics POWERTouch P1000 Series
Summary of Contents for TouchTronics POWERTouch P1000 Series
- Page 1 POWERTouch P1000 Series Radio Frequency (RF) Remote Control System SERVICE MANUAL TNC Antenna (Option) Not Sealed SYSTEM SPECIFICATIONS Receiver can be paired to any transmitter below Model # P1010-R6, P1030-R TK Sealed Transmitters 300 feet typical RANGE Up to 600 feet...
- Page 2 System Operation Each time a button is pressed on the transmitter, the corresponding output will turn On. For example, if button #1 is pressed, output #1 will turn On as long as the button is held. If an input signal is sent to inputs A1 or A2, or any inputs B1 - B6, the corresponding output will turn On as long as the signal is present.
- Page 3 ON = Latching (Optional) #10 x 3/4” Screw CHASSIS GROUND #10 3/16” Star Washer #10 3/16” Ring Terminal Scrape paint and clean area before installing ground screw Vehicle Frame Call Factory for Custom Applications TouchTronics, Inc. 1-800-294-2570 NST13308-P1000_A 2020-06-10 Page 3...
- Page 4 A return material authorization number (RMA) must be issued by seller before any product is returned for evaluation or repair. Warranty repairs must be completed at authorized repair facilities. © 2005 TouchTronics, Inc. All Rights Reserved. TouchTronics, the TouchTronics logo, and other TouchTronics marks are owned by TouchTronics and may be registered. TouchTronics assumes no responsibility for any errors that may appear in this manual.
