3001361 GSV009-016 Grease fan 20210824 - international
GSV 009-016 grease fan
READ AND SAVE THESE INSTRUCTIONS!
Product information
Mechanical installation
Electrical installation
Start up and configuration
Maintenance and troubleshooting
Job name: _________________________________
Installer: __________________________________
Installation date: ___________________________
Manufacturer contact information:
exodraft a/s • Tel: +45 7010 2234
info@exodraft.dk • www.exodraft.com
Installation and operation manual
Chapters 1 + 2
Chapter 3
Chapter 4
Chapter 5
Chapter 6
Advertisement
Table of Contents
Related Manuals for Exodraft GSV 009
Summary of Contents for Exodraft GSV 009
- Page 1 Mechanical installation Chapter 3 Electrical installation Chapter 4 Start up and configuration Chapter 5 Maintenance and troubleshooting Chapter 6 Job name: _________________________________ Installer: __________________________________ Installation date: ___________________________ Manufacturer contact information: exodraft a/s • Tel: +45 7010 2234 info@exodraft.dk • www.exodraft.com...
-
Page 2: Table Of Contents
3001361 GSV009-016 Grease fan 20210824 - international Contents 1. Product information 1.1 Function ............... . 4 1.2 Components . - Page 3 3001361 GSV009-016 Grease fan 20210824 - international TO REDUCE THE RISK OF FIRE, TO REDUCE THE RISK OF INJURY TO ELECTRICAL SHOCK OR INJURY TO PERSONS IN THE EVENT OF A CHIMNEY PERSONS, OBSERVE THE FOLLOWING: FIRE, OBSERVE THE FOLLOWING: 1.
-
Page 4: Function

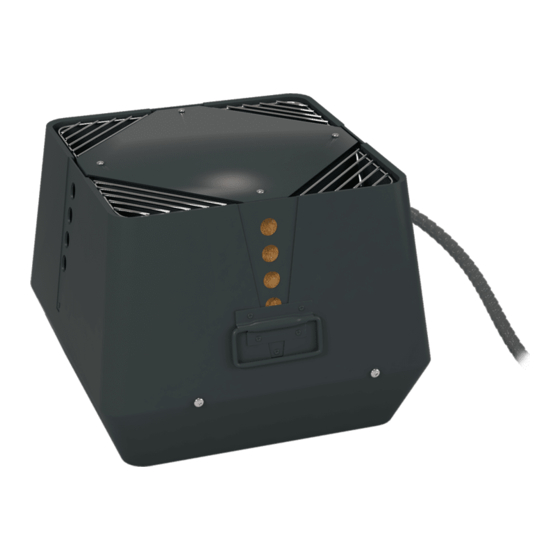

1. Product information 1.1 Function The exodraft model GSV grease fan is designed to provide a large exhaust volume at a high discharge velocity. It is intended for use as a part of a restaurant exhaust system for solid fuel cooking appliances and grease applications according to NFPA96. -
Page 5: Shipping
(not including dismantling and installation, freight, etc.) during the first 10-years following the date of invoice. Complete warranty conditions are available at www.exodraft.com or request a copy at: info@exodraft.dk or at tel: +45 7010 2234... -
Page 6: Dimensions And Capacities
3001361 GSV009-016 Grease fan 20210824 - international 2. Specifications 2.1 Dimensions and capacities Model GSV 009 GSV 012 GSV 014 GSV 016 Discharge Vertical Fan type Axial Vane Max. discharge velocity 2,351 2,592 2,593 2,169 Actual discharge velocity 5.9 x CFM 2.9 x CFM... -
Page 7: Positioning
Fig. 2). If necessary, the adapter can be secured by means of long self-tapping stainless steel screws into the side of collar through the chimney wall. Do not obstruct the flow. Turn the exodraft fan upside-down and lay a bead of hi-temp silicon on the base close to the outer edge (not shown). -
Page 8: Installation On Roof Curb
3001361 GSV009-016 Grease fan 20210824 - international 3.3 Installation on roof curb If the fan is installed on a roof curb, the curb will do the same as the adapter. Follow the instructions under 3.2 3.4 Installation on side wall Make sure the vent terminates flush with the wall. -
Page 9: Electrical Requirements
Otherwise, insulation may melt or degrade, exposing bare wire. 4.2 Wiring diagram The connection diagram below shows how the exodraft fan is connected to the fan speed control and the power source (see Fig. 4). Use a 2-conductor wire of min. 14 AWG with ground. -
Page 10: System Testing
Determine if the axial vane is running free and has not been subject to misalignment in shipping or installation. Turn the exodraft grease fan ON and make sure that it is operating. Adjust the fan speed control to make sure it is operating properly. -
Page 11: Adjusting Fan Speed
3001361 GSV009-016 Grease fan 20210824 - international 5.3 Adjusting fan speed Start all heating appliances connected to the chimney fan installed. Set the fan speed control to the speed where no spill- age is experienced anywhere in the system. 5.4 Operation of pizza ovens Prior to starting a fire, set the fan at high/full speed and start the fire following the oven manufacturer’s instructions or, in the absence of such instructions, follow normal instructions on burning a fire in a fireplace or stove. -
Page 12: Care And Cleaning
6.1 Care and cleaning The exodraft grease fan is designed for prolonged use. The fan should be inspected at least once a year when the chim- ney is inspected. Deposits should be removed from the fan blades or the impeller and the bottom of the motor housing. -
Page 13: Chimney Fires And What To Do About Them
3001361 GSV009-016 Grease fan 20210824 - international Do not start a chimney fire as a means to clean the chimney! With only slight deposits, try a hot fire to see if the black deposits fall down the chimney. You can hear the sound of falling deposits when the temperature conditions are right. -
Page 14: Spare Parts Ordering
3001361 GSV009-016 Grease fan 20210824 - international 6.6 Spare parts ordering When ordering spare parts please have the model number and part position number available. Motor Screw – SS (4) Motor mounting plate Motor housing insulation Screw – SS (2) Screw –... -
Page 15: Troubleshooting
If necessary, replace bearing. The fan suddenly stops. The motor is overheating. Check the flue gas temperature below the fan. The temperature should not exceed 400°F during continuous operation. Call exodraft tel. +45 7010 2234... - Page 16 Notes www.exodraft.com...
