5.7.3 Ethernet Port ETH0 and ETH1

The panel socket of RJ45 is used for this interface. The insulation strength of Ethernet
ports from each other and from the rest of the router (grounding) is 1500 V.
Pin Signal mark
1 TXD+
2 TXD-
3 RXD+
4 —
5 —
6 RXD-
7 —
8 —
The Ethernet cable plugs into the RJ45 connectors labeled as ETH0 and ETH1 (see the
figure below).
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de
Description
Transmit Data – positive pole
Transmit Data – negative pole
Receive Data – positive pole
—
—
Receive Data – negative pole
—
—
Table 7: Connection of Ethernet connector

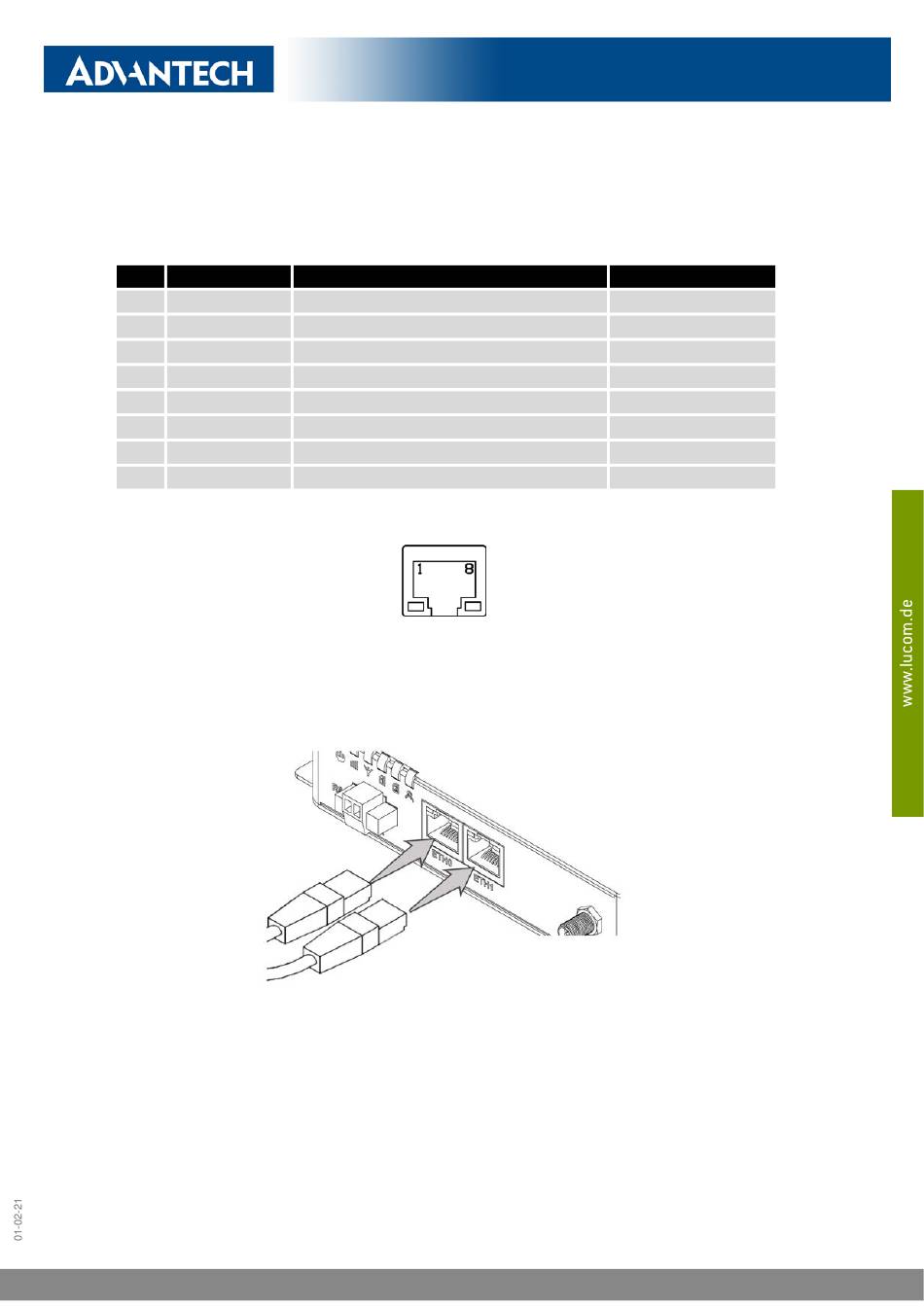

Figure 15: Ethernet connector
Figure 16: Connection of Ethernet cables
17
ICR-3232
Data flow direction
Input/Output
Input/Output
Input/Output
Input/Output
