MAJORITY 1000002681 Manual

MAJORITY 1000002681 Manual

Soundbar with wireless subwoofer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Soundbar with wireless Subwoofer
1000002681
For every thrilling moment Experience cinematic sound from your sofa.
This Dolby Atmos soundbar with wireless sub-woofer draws you deeper into the shows and
movies you love. You'll hear the drama flow around you, and even overhead more channels
reproduce height as well as depth, creating a virtual three-dimensional surround sound.
Whether it's spaceships flying overhead or the crowd in an arena, you'll feel the drama flow
above and around you.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1000002681 and is the answer not in the manual?

Questions and answers

Related Manuals for MAJORITY 1000002681

Summary of Contents for MAJORITY 1000002681

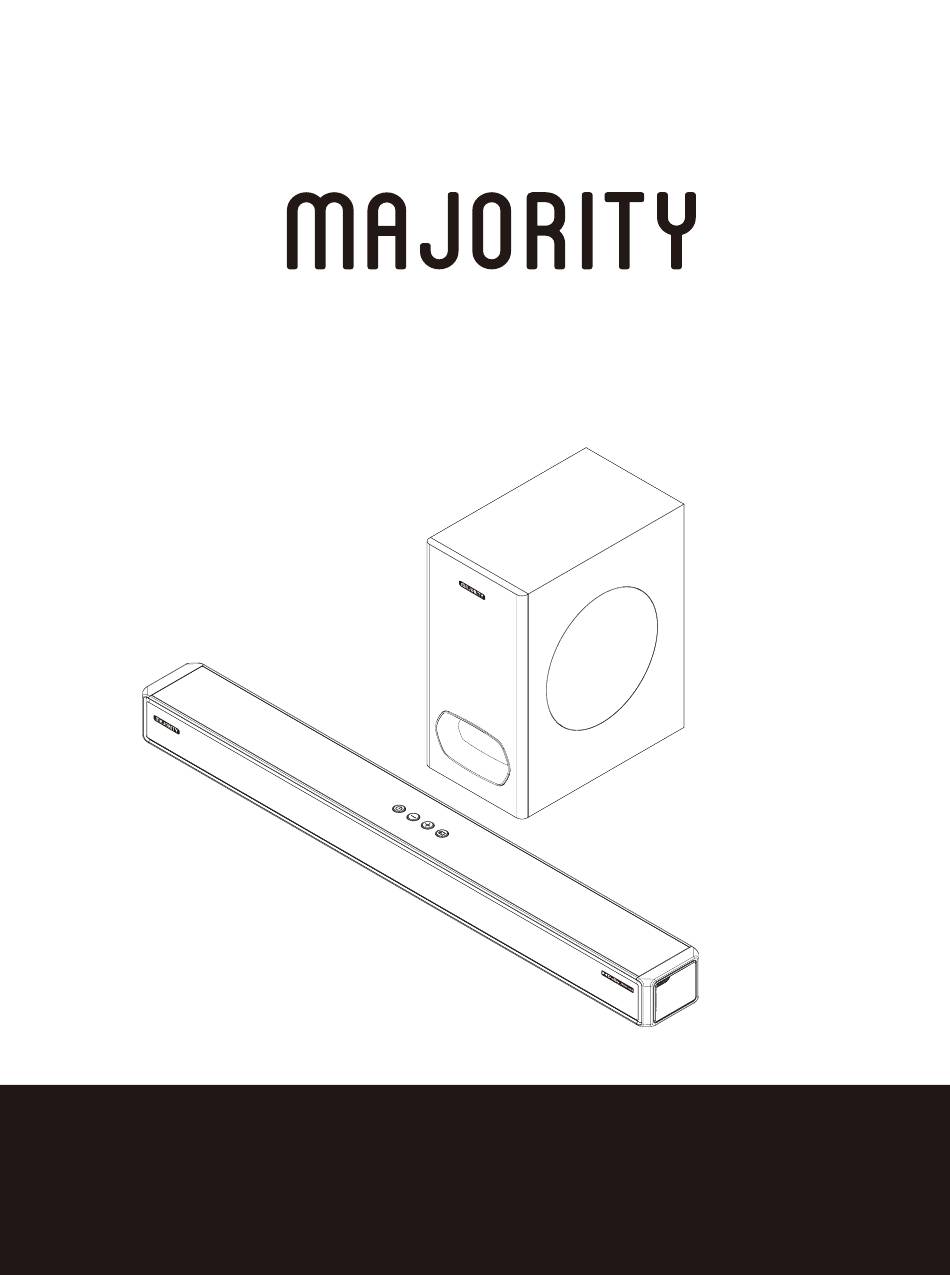

  • Page 1 Soundbar with wireless Subwoofer 1000002681 For every thrilling moment Experience cinematic sound from your sofa. This Dolby Atmos soundbar with wireless sub-woofer draws you deeper into the shows and movies you love. You’ll hear the drama flow around you, and even overhead more channels reproduce height as well as depth, creating a virtual three-dimensional surround sound.

  • Page 2: Important Safety Instruction

    Important Safety Instruction 1000002681 Thank you for purchasing the Soundbar. Please read this user manual carefully and keep for future reference. rning Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture.
  • Page 3 6. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit. 7.

  • Page 4: Important Safety Instructions

    Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

  • Page 5: Preparation For Use

    Preparation for Use Unpacking and Set Up •Remove the Sound bar from the carton and remove all packing material from the Sound bar. Save the packing material, if possible, in case the Sound bar ever needs to be serviced or transported. The original carton and packing material is the only safe way to pack your Sound bar to protect it from damage in transit.

  • Page 6: Product Diagram

    Product Diagram DISPLAY PANEL. Standby-on: Switch the Soundbar On or to standby. Volume: Decrease the volume. Volume: Increase the volume. INPUT: Select an input source for the Soundbar. AC IN: Connect to power supply. HDMI IN 2 : Connect to HDMI OUT of TV/Satellite/ Netework/Set-top box/BD/Blue Ray DVD/DVD player.
  • Page 7 ••The maximum Bluetooth connection distance in an open space between the soundbar and subwoofer should not exceed 8m. ••To avoid sound quality interference caused by wireless signal interference, when you are playing 1000002681 soundbar, please ensure it is kept at an appropriate distance from other WIFI devices to avoid wireless signal interference.
  • Page 8 REMOTE CONTROL 1. Power button: Press to switch the sound bar on/ o or standby mode. 2. Pair button: long-press pair button more than 2 seconds to conect and disconect last device. short-press pair button, the display will be shown “ ”, it is indicated that the surround e ectiveness is switched on.

  • Page 9: Operating Range Of The Remote Control

    CAUTION Risk of explosion if the battery is replaced by an incorrect type Handling the battery • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property. • Only use the battery type indicated in this manual. •...

  • Page 10: Positioning The Sound Bar

    Positioning the Sound Bar Table Placement • Place the sound bar horizontally on a solid surface such as a TV unit or shelves and align it centrally with the TV screen. • For best sound output and good airflow around the soundbar, place your soundbar and subwoofer as shown on the right.
  • Page 11 Soundbar Pad Soundbar Pad 150*55*40MM 75*35*5MM Mount the unit on a wall When mounting the soundbar on a wall, all installation musted be performed in right way. The customer must never attempt to install it without authorization. Improper or inadequate installation may cause the sound bar to fall so as to result in personal injury.

  • Page 12: Basic Operation

    Using the Soundbar Before connecting the AC power cord, ensure you have completed all other connections. • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the • back or the underside of the unit. Connect the mains cable to the AC IN of the unit and then into a mains socket.

  • Page 13: Auto Standby

    Bluetooth pairing mode. 2. On the Bluetooth device, switch on Bluetooth, search for and select Majority Sierra Plus on your Bluetooth list to start connection (see the user manual of the Bluetooth device on how to enable Bluetooth) if prompted for a password, please use “0000”.
  • Page 14 N otes: • Having connection problems? Remove Majority Sierra Plus from your device's Bluetooth history and ensure it’s less than 8 meters away. Then try pairing again. To get the best sound quality, make sure there is a clear line of sight between the connected device and your sound bar.

  • Page 15: Optical Mode

    Playing Audio via USB Port The sound bar automatically switches to USB input mode with the LED display when a USB flash drive is inserted (this mode isn't selectable on the sound bar or remote control unless a USB flash drive is connected). 1.
  • Page 16 • Start playing on the TV • Press the source input button on the sound bar or remote control to activate the corresponding mode (the OPTICAL mode) to open optical digital input of your sound bar. After successfully connected, the LED display will show .
  • Page 17 Option 2: Standard HDMI If your TV is not HDMI ARC-compliant, connect your soundbar to the TV through a standard HDMI connection. • Use an HDMI cable (included) to connect the soundbar’s HDMI OUT socket to the TV’s HDMI IN socket. •...

  • Page 18: Troubleshooting

    Troubleshooting Remote control Problem Cause Remedy The unit is out of the operating range. Use the remote control within the operating range. The unit cannot be operated using the remote control. The batteries are weak. Replace with new batteries. The remote control sensor of the unit is exposed Adjust the lighting angle, or reposition the unit.
  • Page 19 Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Dolby Vision, Dolby Atmos and the double -D symbol are trademarks of Dolby Laboratories. What is DOLBY ATMOS®? Dolby Atmos® transports you from the ordinary into the extraordinary with breathtaking, moving audio that fills your room and flows above and around you.
  • Page 20 Music mode Enhances the treble and adds greater depth to the music. Movie mode Intensifies the bass and enhances the clarity of dialogue. News mode Enhances the clarity of voices. Suitable for watching TV shows and news. 3D mode Enhances background music and full range to be sports effect Adjust the Volume Volume value: the volume value is 00-32, and the factory set value is "10".
