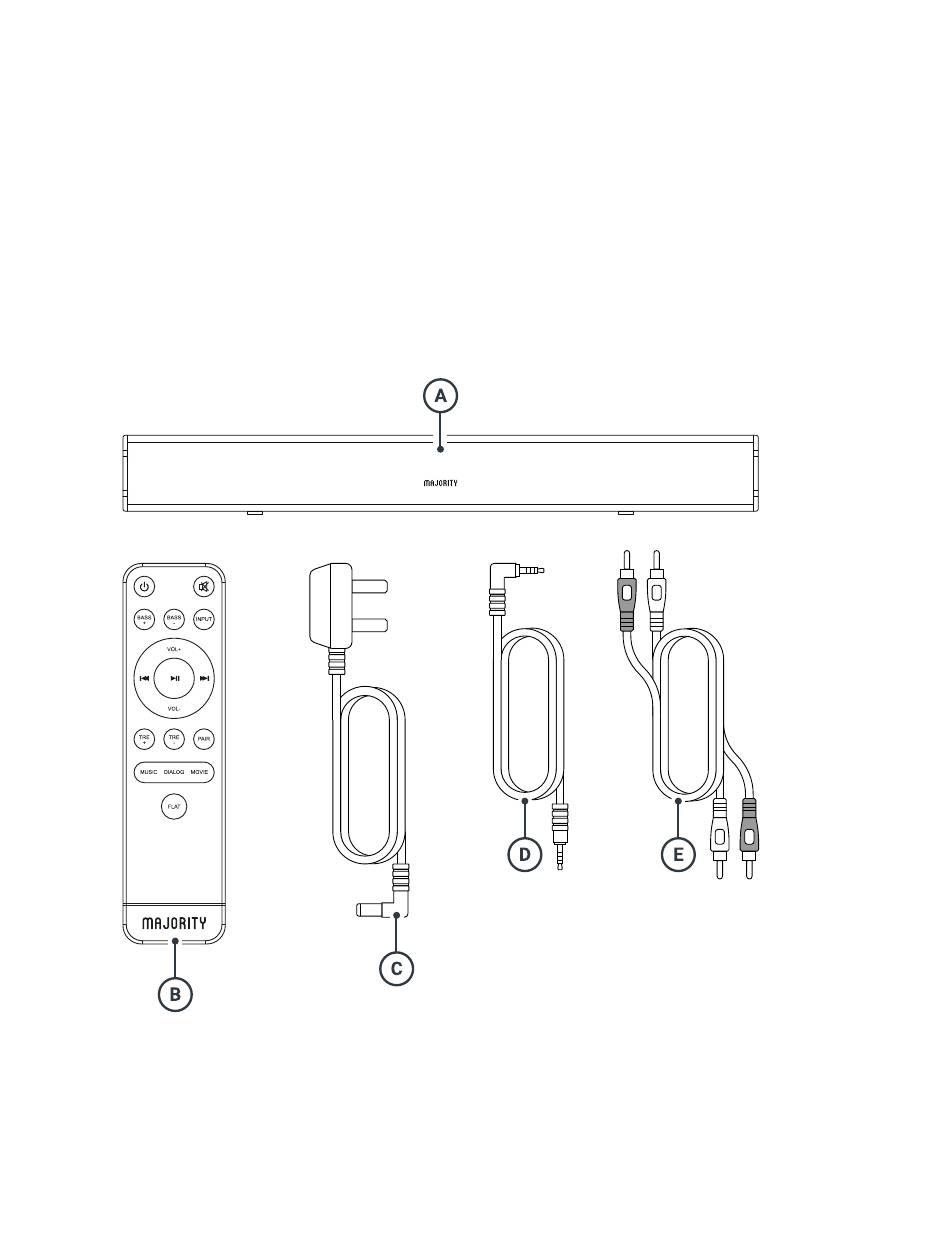

- Page 1 Box Contents A. Majority Snowdon Soundbar B. Remote Control C. Power Adapter (UK or EU Plug) D. 3.5mm to 3.5mm Audio Cable E. RCA Stereo Audio Cable (https://www.majority.co.uk/wp-content/uploads/2021/05/Snowdon-Diagrams-03-1.svg) Controls and Functions...
-
Page 2: Front View
Front View 1. Speaker Drivers 2. Remote Control Sensor 3. LED Indicator Light Side View 4. Power On/Off... -
Page 3: Back View
5. Source/Change Mode (BT, OPTICAL, AUX, RCA, USB, ARC). �. Volume Up 7. Volume Down �. Bluetooth Pair 9. Line In Port Back View 10. RCA/AUX Ports 11. Optical In Port 12. DC Power Port Remote Control... -
Page 4: Instructions Guide
13. Power On/Off 14. Bass Increase/Decrease 15. Volume Up 1�. Back 17. Volume Down 1�. Treble Increase/Decrease 19. Media Modes: Select Music, Dialogue or Movie EQ mode 20. Flat: Press to reset EQ settings to default 21. Mute 22. Input: Press to switch between modes 23. - Page 5 Mode Indicator Lights & Audio Settings Mode Indicator Lights State LED Indicator Light Power Off AUX Mode White Line In Mode Green Optical Mode Yellow Bluetooth Ready Flashing Blue Bluetooth Connected Blue Audio Settings Mode LED Indicator Light MUSIC Manually change BASS and TREBLE settings (between 0Db and +8Db).
-
Page 6: Rca Input
The mains plug/appliance coupler is used as the disconnect device. The disconnect device must remain readily operable. Connect the adapter into the soundbar DC power port (Ref.12). Ensure all audio connections of the unit are connected before connecting to the mains power socket. Unplug the power cord from the outlet when the unit is used for an extended period of time. -
Page 7: Automatic Power Off
If your device should become unpaired or you �nd it is unable to connect, repeat the above steps. Automatic Power Off The Majority Snowdon Soundbar will automatically go into sleep mode after 180 minutes if the TV is off. -
Page 8: Warranty
Wall Mounting The Majority Snowdon can be mounted to a wall using the appropriate �ttings for your wall type by using the wall mounting brackets positioned at the rear of the unit. As these differ between wall types the �ttings are Warranty not included. -
Page 9: Recycling Electrical Products
WARNING Risk of electric shock. Do not open. 1. Read these instructions: 2. Heed all warnings. 3. Follow all instructions in the user manual. 4. Do no clean the apparatus near or with water. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. �. - Page 10 CONTACT SUPPORT (HT TPS://WWW.M AJORIT Y.CO.UK/SUPPORT/)
