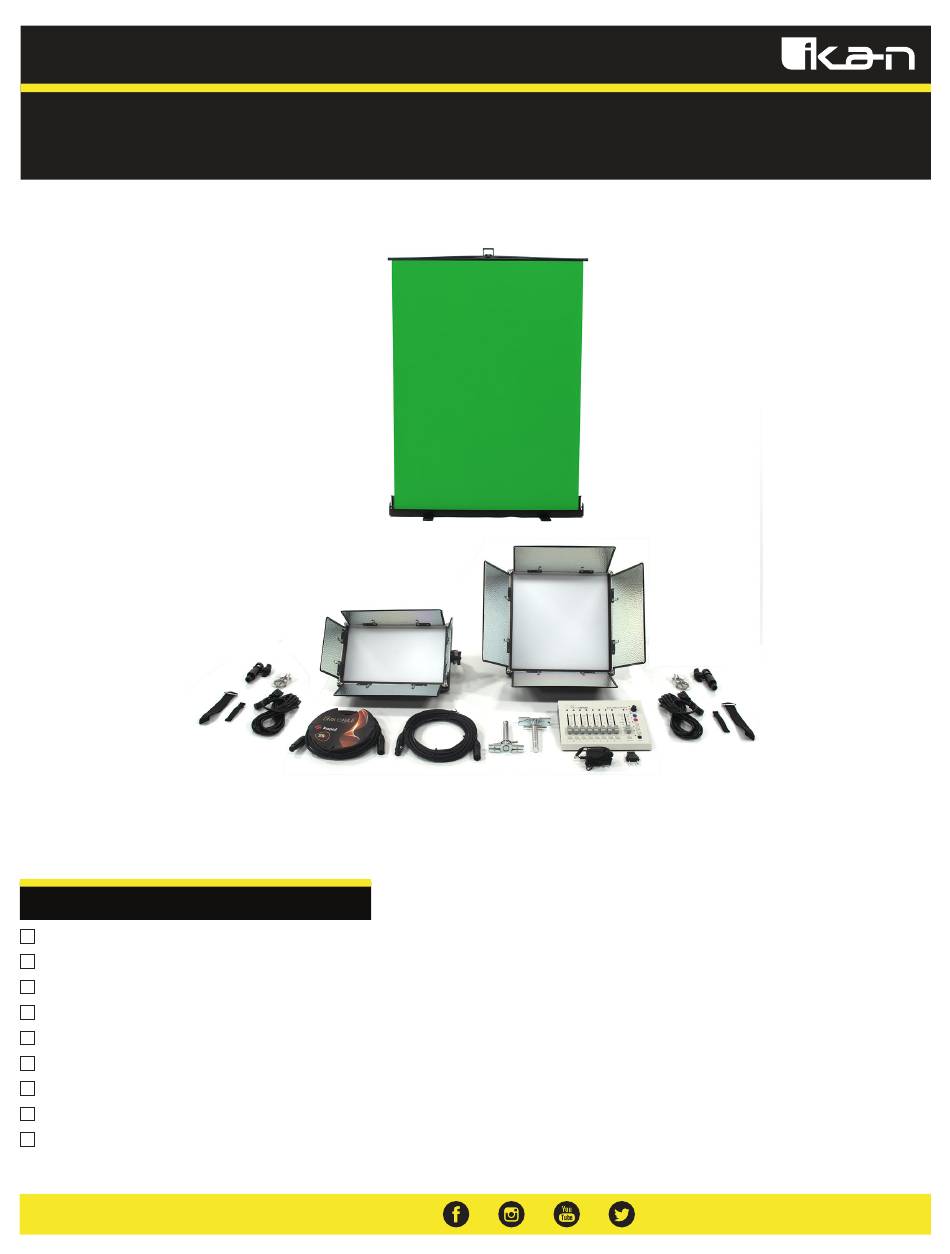

CHROMA-1F1H
Ceiling Mount Studio Chromakey Light Kit with 1x1 Softlight Panel,
Half x 1 Softlight Panel, and DMX Controller
What's Included
1 x LBX10
1 x LBX5
1 x 8 Channel Controller
1 x Portable Chromakey Green Screen
2 x 5-pin 25' DMX Cables
2 x Drop Ceiling Scissor Mount
2 x Safety Cable (one included with each light)
2 x Light Power Supply w/ Cable
1 x DMX Controller Power Adapter
www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com
Quick Start Guide
because we're filmmakers too
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ikan CHROMA-1F1H
Summary of Contents for Ikan CHROMA-1F1H
- Page 1 Quick Start Guide CHROMA-1F1H Ceiling Mount Studio Chromakey Light Kit with 1x1 Softlight Panel, Half x 1 Softlight Panel, and DMX Controller What’s Included 1 x LBX10 1 x LBX5 1 x 8 Channel Controller 1 x Portable Chromakey Green Screen 2 x 5-pin 25’...
- Page 2 Lyra Bi-Color LED Half x 1 Soft Light with DMX LBX10 Lyra Bi-Color LED 1 x 1 Soft Light with DMX What’s Included 1 x 15V Power supply 1 x Yoke Mount CHECKED BY www.ikancorp.com 713.272.8822 support@ikancorp.com © 2017 ikan Corporation. All rights Reserved...
- Page 3 General Information Thank you for buying the ikan Lyra Bi-Color DMX512 LED Lights. This fixture has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit.
- Page 4 Fixture Overview (Front) LBX10 LBX5 Fixture Overview (Back) LBX10 LBX5...
-
Page 5: Fixture Menu
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ikan service technician. Should you need any spare parts, please order genuine parts from your local ikan dealer. -
Page 6: Specifications
Power Consumption 51W; 14-18VDC Power Consumption 90W; 14-18VDC Optional Accessories Some other products that work well with the Lyra DMX Lights available from Ikan include: CV600 Digital LED Light Meter with Exposure & Spectrometer CP-STND-V3 Compact Light Stand Version 3... - Page 7 ISO 9001 CERTIFIED CX-804 8 Channel DMX Console 【 User manual】 Lite-Puter Enterprise Co., Ltd. website：www.liteputer.com.tw E-mail: sales@liteputer.com.tw...
-
Page 8: Specification
ISO 9001 CERTIFIED Chapter 1. CX-804 Instruction 1-1 Feature Standard DMX 512 signal control 8 dimming control channel 8 control scene setting Chaser function: 1.) Channel chase 2.) Scene chase 3.) Speeding control 4.) Chase Function Flash Audio input 1-2 Specification Power supply DC 12V/ 1A Control signal... - Page 9 ISO 9001 CERTIFIED 1-3 CX-804 Function Master dimming control MASTER-VR Master Flash control MASTER Audio / speed chase control SPEED/ AUDIO Pause BLANK Scene / Channel control SC/CH Chase 1-4 CHASE 1 Chase 5-8 CHASE 2 Scene/ Chase direction control PROG Signal display Setting 1…8 dimming channel...
- Page 10 ISO 9001 CERTIFIED 1-4 CX-804 Rear panel Power supply: DC 12V / 1A Power switch Audio input: 100mV DMX connector: XLR 5-PIN DMX connector: XLR 3-PIN DMX connector: PHONE JACK (RJ11) Audio sensitivity control Lite-Puter CX-804 [EUM-A]...
-
Page 11: Scene Setting
ISO 9001 CERTIFIED Chapter 2. CX-804 operation SCENE setting Select【CH】mode, and move the fader to set the dimming value press【PROG】+【1~8】 to save control scene. STEP-1 press【SC / CH】to select the control channel LED : off in CH mode LED : on in SC mode STEP-2 move【MASTER-VR】to the top STEP-3 move【VR-1 …... -
Page 12: Internal Chase Setting ( Speed Chase )
ISO 9001 CERTIFIED CHASE (1) Internal chase setting (SPEED CHASE) (2) Audio input control (AUDIO) 2-3-1 Internal chase setting ( SPEED CHASE ) 2 mode of chase setting: (1) in【CH】mode : Chase by CH mode (2) in【SC】mode : Chase by SC mode 【CH】mode STEP-1 press【SC/CH】, to select the channel. -
Page 13: Audio Chase
ISO 9001 CERTIFIED 【SC】mode STEP-1 press【SC/CH】, to select the SC mode STEP-2 to select press【CHASE 1】 ：to execute the SC-1…SC-4 chase. press【CHASE 2】 ：to execute the SC-5…SC-8 chase. STEP-3 move【VR-1…VR-8】 Select【CHASE 1】: move【VR-1…VR-4】, ”SC-1…SC-4” to execute ”Chase” mode move【VR-5…VR-8】, ”SC-5…SC-8” to execute ”Dimming” mode Select【CHASE 2】: move【VR-1…VR-4】, ”SC-1…SC-4”... - Page 14 HomeStream™ 76” Tall Portable Pull-Up Chroma Key Green Screen Features Overview • Portable Pro-Level Chroma Key Screen The Ikan HomeStream™ 76” Portable Pull Up Green Screen is a highly durable • Aluminum Enclosure and ultra-convenient pull-up green screen for use with photography, live- streaming, SFX compositing, interviews, etc.
-
Page 15: Learn More
Support Contact email: support@ikancorp.com Ikan: and all affiliated companies hereby disclaim any and all liabilities for property, equip- ment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.
