LS-2500E

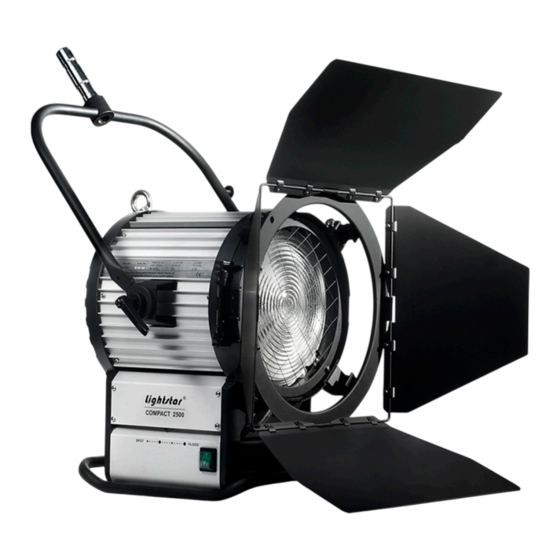

2500 Watt HMI Fresnel Kit (Lightstar)

What's Included

1 x 2500W HMI Fresnel Light

1 x 2500/4000 Watt Ballast

1 x 7-Meter Heavy Duty Head to Ballast Cable

1 x Gel Holder

1 x Barn Doors

1 x Yoke

www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com

Quick Start Guide

CHECKED BY

because we're filmmakers too

Need help?

Do you have a question about the Lightstar LS-2500E and is the answer not in the manual?

Page 1 Quick Start Guide LS-2500E 2500 Watt HMI Fresnel Kit (Lightstar) What’s Included 1 x 2500W HMI Fresnel Light 1 x 2500/4000 Watt Ballast 1 x 7-Meter Heavy Duty Head to Ballast Cable 1 x Gel Holder 1 x Barn Doors 1 x Yoke CHECKED BY because we’re filmmakers too...
Page 2 Ikan is the exclusive distributor of Lightstar products in the United States. Safety Precautions • The LS-2500E fixture has been designed for professional use and must be operated by qualified personnel only. • Electrical Connections: Do not attach the ballast directly to any electrical mains.
Page 3 Ballast Installation Instructions Connecting a fixture to the ballast and energizing the ballast with power. Make sure the ballast and the lamp head fixture is compatible. Check that the ballast is appropriate for the AC Power that will energize the ballast and fixture. (Voltage & Frequency) The ballast needs to be properly grounded and the main power switch is in the OFF position.
Page 4 Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2017 ikan Corporation. All rights reserved because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
