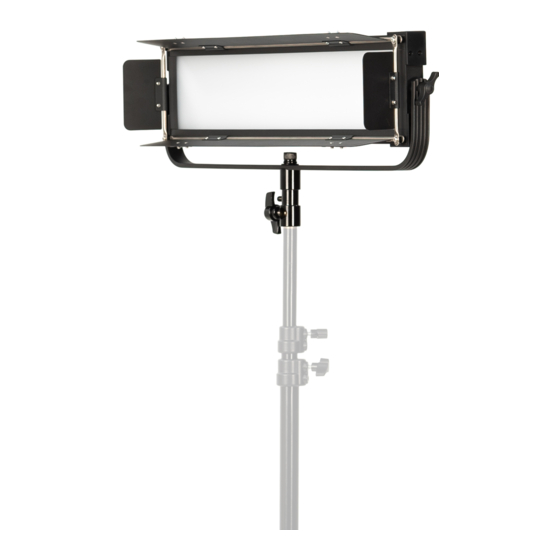

- Page 1 Quick Start Guide LBX8 / LWX8 Lyra Low Profile Soft Panel Light w/ DMX What’s Included 1 x Lyra Light Fixture 1 x Power supply 1 x Yoke Mount 1 x Power Cord www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
-
Page 2: General Information
General Information Thank you for buying the Ikan Lyra DMX LED Lights. This fixture has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. These instructions contain important information regarding safety during use and maintenance. -
Page 3: Fixture Overview
Fixture Overview Front Back www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com... -
Page 4: Fixture Menu
DMX channel control can be selected on the rear of the fixture. Depending on the model, the DMX channel selected will require different channels for use on the DMX board. LBX8 will require two channels, one for brightness and one for color temperature. LWX8 will require one channel for brightness. -
Page 5: General Guidelines
Cleaning & Maintenance continued... Please refer to the following points during routine inspections: - Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall. - Check for any deformations on the housing, rigging hardware and rigging points (ceiling, suspension, trussing). - Page 6 LBX8 Specifications 110 Degree Beam Angle Head Type Bi-Color 3200K-5600K Lens ½ Stop Soft DIffusion Cooling System Passive Cooling Control/Dimming Knob Control or DMX Build Material Heavy Duty Resin Plastic, Aluminum Yoke Baby 5/8" -- Junior 1 1/8" Combo Pin Fixture Size 24 x 6.8 x 1.75 in.
-
Page 7: Optional Accessories
721.1 10ft. / 3m 215.3 15ft. / 4.5m 107.6 Optional Accessories Some other products that work well with the Lyra Lights available from Ikan include: KCP-703 Stage Clamp with 16mm Stud ROLLR-STND10 2-Stage Roller Stand 10 ft 6 in SW-04... -
Page 8: Learn More
Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2022 Ikan International. All rights reserved. www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
