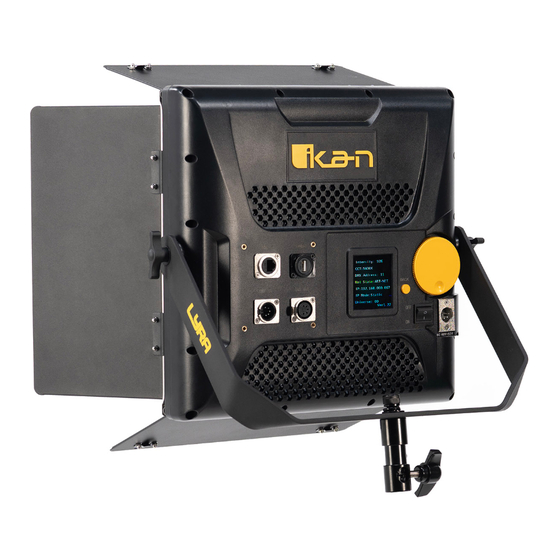

- Page 1 Manual LBX8-POE & LBX10-POE Ikan Lyra POE Light Series LBX8-POE LBX10-POE www.ikancorp.com sales@ikancorp.com - 1 -...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction 1.1 Overview 1.2 Key Features 1.3 Package Contents (What’s Included) 2. Safety Information 2.1 General Safety Guidelines 2.2 Electrical Safety 2.3 Maintenance and Cleaning 2.4 Environmental Considerations 2.5 Compatible Cables 3. Specifications 3.1 LBX8-POE Specifications 3.2 LBX10-POE Specifications 4. -
Page 3: Introduction
1. Introduction 1.1 Overview The Ikan LYRA POE are lighting solutions designed to be effortlessly installed in studios with limited ceiling clearance. PoE++ lights are easy to install as they can be quickly and easily connected using an Ethernet cable. Equipped with high CRI LED chips and a soft panel, it emits a gentle, wraparound light that offers a clean and sharp shadow. -
Page 4: Maintenance And Cleaning
2.3 Maintenance and Cleaning • Disconnect the light from the power source before cleaning. • Use a soft, dry cloth for cleaning; do not use solvents or abrasive materials. 2.4 Environmental Considerations • Dispose of the light and packaging in accordance with local regulations. •... -
Page 5: Powering On And Off
4.3 Powering On and Off • Connect the Cat6 (24AWG or better) cable to the light and a compatible PoE++ power source. • Flip the switch to the on position. • The light will take up to 5 seconds to boot up. The readout screen flashing white is a normal indication that the light is turning on. -
Page 6: Operation
6. Operation - 6 -... -
Page 7: Intensity Control
6.1 Intensity • Adjust the brightness to achieve the desired illumination level. The light can be set from 0-100%, increasing and decreasing by increments of 1%. 6.2 CCT (Color Temperature) • Adjust the color temperature between 3200K and 5600K. 6.3 DMX Address •... -
Page 8: Net State (Art-Net, Sacn, Ip Address)
6.4 Net State: • Turns on the usage of DMX over IP protocols Art-Net or sACN. Once one of these are selected, select the following: IP: IP address of the light. The light can be set as the following: 192.168.xxx.xxx 172.xxx.xxx.xxx 10.xxx.xxx.xxx IP Mode: Set either DHCP or Static... -
Page 9: Maintenence
7. Maintenance 7.1 Cleaning and Care • Clean the light with a soft, dry cloth. Avoid using solvents or abrasive materials. 7.2 Storage Guidelines • Store the light in a dry, cool environment. Disconnect from power during extended periods of use. 8. -
Page 10: Warranty And Support
• The lights require 802.3bt Type 4 switch with minimal 90W per port. Netgear’s 90W AV PoE++ Switches have been fully tested and certified ato be compatible with all Ikan PoE++ lights. They include the IKM4250-10G2XF-PoE++ 8 port switch and the IKM4250-26G4F- PoE++ 24 port switch. - Page 11 IKM4250-26G4F-PoE++ • 16 x LBX10-POE (85W x 16 = 1360W) • 24 x LBX8-POE • If doing a combination of Lyra POE lights, calculate the total wattage of all lights to make sure the switch can support it. • For example, if using 10 x LBX10-POE and 10 x LBX8-POE •...
- Page 12 • Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2024 Ikan International. All rights reserved. - 12 -...
