Rayden
Rayden LED Lights
What's Included
1 x Light Fixture
1 x Yoke Mount
1 x Neutral Density Filter
1 x Power Supply with Cable
1 x Power Supply for Dual Charger
1 x DV Dual Battery Charger
www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com
Quick Start Guide
because we're filmmakers too
CHECKED BY
Advertisement
Table of Contents
Related Manuals for Ikan Rayden RB5
Summary of Contents for Ikan Rayden RB5

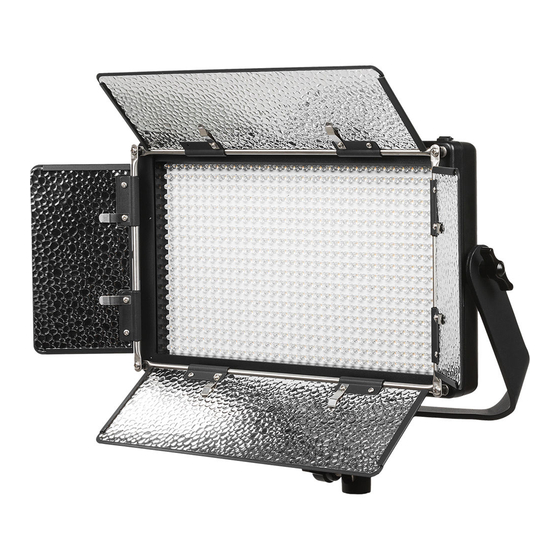

- Page 1 Quick Start Guide Rayden Rayden LED Lights RB10 RW10 What’s Included 1 x Light Fixture 1 x Yoke Mount 1 x Neutral Density Filter 1 x Power Supply with Cable 1 x Power Supply for Dual Charger 1 x DV Dual Battery Charger CHECKED BY because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 2 Getting to know your Rayden Lights PRECAUTIONS • Keep the fixture away from water and all flammable gases or liquids. • Use ONLY the recommended batteries. • Handle the unit with care. • DO NOT attempt to disassemble or repair the unit without first contacting the service department at www.ikancorp.com •...
-
Page 3: Optional Accessories
• Press and Hold “B” for 5 seconds to Enable/Disable sound • Hold down “C” to increase light intensity 0%-100% • Hold down “D” to decrease light intensity 100%-0% Optional Accessories Some other products that work well with the Rayden lights from Ikan include: HD-STND Heavy Duty Light Stand ROLLR-STND10... -
Page 4: Specifications
Rayden Bi-Color Half x 1 Studio & Field LED Light Specifications Fixture Specifications Electrical Specifications Light Source 608 0.06 watt LEDs Power Supply Input: 110-220VAC Output: 15VDC @ 4.0A Head Type Bi-Color 5600K-3200K Fixture Power Consumption 36.4W; 14-18VDC Lens 45 Degree Remote Control Battery 23A 12VDC Beam Angle... - Page 5 RB10 Rayden Bi-Color 1 x 1 Studio & Field LED Light Specifications Fixture Specifications Electrical Specifications Light Source 1184 0.06 watt LEDs Power Supply Input: 110-220VAC Output: 15VDC @ 6.0A Head Type Bi-Color 5600K-3200K Fixture Power Consumption 71W; 14-18VDC Lens 45 Degree Remote Control Battery Beam Angle...
- Page 6 Rayden Daylight Half x 1 Studio & Field LED Light Specifications Fixture Specifications Electrical Specifications Light Source 608 0.06 watt LEDs Power Supply Input: 110-220VAC Output: 15VDC @ 4.0A Head Type Daylight 5600K Fixture Power Consumption 36.4W; 14-18VDC Lens 45 Degree Remote Control Battery 23A 12VDC Beam Angle...
- Page 7 RW10 Rayden Daylight LED 1 x 1 Light Specifications Fixture Specifications Electrical Specifications Light Source 1184 0.06 watt LEDs Power Supply Input: 110-220VAC Output: 15VDC @ 6.0A Head Type Daylight 5600K Fixture Power Consumption 71W; 14-18VDC Lens 45 Degree Remote Control Battery Beam Angle 50 Degree 23A 12VDC...
- Page 8 Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2018 ikan Corporation. All rights reserved because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
