CC8

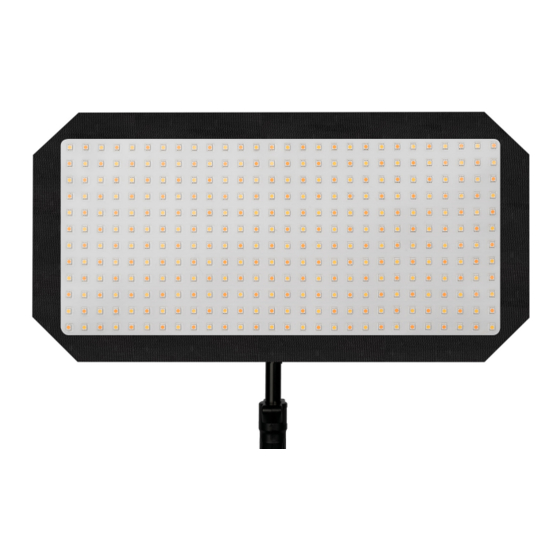

Canvas Full Color Bendable LED Panel
What's Included
1 x CC8 Bi-color LED Panel Light
1 x 5/8" Baby Pin with 90 degree Mount Holes
1 x Controller box
1 x Egg Crate
1 x Hanging Strap
1 x Power Cord
1 x Power Supply
1 x Soft Box
1 x X-Holder with Ball Mount
www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com
Quick Start Guide
because we're filmmakers too
Advertisement
Table of Contents
Related Manuals for Ikan CC8
Summary of Contents for Ikan CC8
- Page 1 Quick Start Guide Canvas Full Color Bendable LED Panel What’s Included 1 x CC8 Bi-color LED Panel Light 1 x 5/8” Baby Pin with 90 degree Mount Holes 1 x Controller box 1 x Egg Crate 1 x Hanging Strap...
- Page 2 Overview The care and cleaning of the Canvas Bendable LED light. The CC8 should be rolled up and placed back into the carrying bag when not in use. The LEDs should be facing out when placed into the carrying bag. The two ends of the Canvas light should meet.
- Page 3 When placing the light mount on the 5/8” baby pin, this allows you to adjust the light in any desirable position. Ikan developed the CC8 bendable light to handle multiple situations whether you need traditional 5600K (daylight) and 3200K (tungsten) or the full color wheel spectrum.
- Page 4 Appearance & Structure - Light CC8 is illustrated as follows 5/8 Receiver: attaches to a stand or a 5/8” baby pin w/90 degree holes Mount: Adjustable lighting direction Hook & Loop around the edge of the light Appearance & Structure - Control Box LCD Display Screen Toggles Between CCT Mode(2750K –...
- Page 5 Screen Display Function CCT Form 1. CCT 2. CCT Hue Shift Color Temperature Battery Brightness Battery Color : 4600K BRIGHT: 15% Bright: 88% HUE SHF%: 100% Brightness Green/Magenta Control RGB Form 1. HSI 2. RGB Mode Hue, Saturation, Intensity Red, Green, Blue 0 - 255 HSI: 001 STA: 100 R255 G255 B255...
- Page 6 1. Ensure power is off before setting up light. 2. Place the light on the Ikan customized stands, release the tension knob on the 5/8” receiver, adjust the light in the desired direction, and then tighten the tension knob on the 5/8” receiver.
- Page 7 Baby 5/8” receiver Fixture Size 20 x 10 x .5 in. Fixture Weight Optional Accessories Some other products that work well with the CC8 available from Ikan include: IBG-STND Stand Bag IBG-SB15 Saddle Sandbag & Weight Bag - 15 lb...
- Page 8 Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2020 Ikan International. All rights reserved. because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
