StarTech.com 8STMSTCDP123DP Quick Start Manual

Quick-start guide
MST Hub - DisplayPort over USB-C to 3x DisplayPort
MSTCDP123DP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Introduction
This MST hub enables a Windows® device that's equipped with
DisplayPort over USB-C™ (DP alt mode) to connect three DisplayPort
monitors.

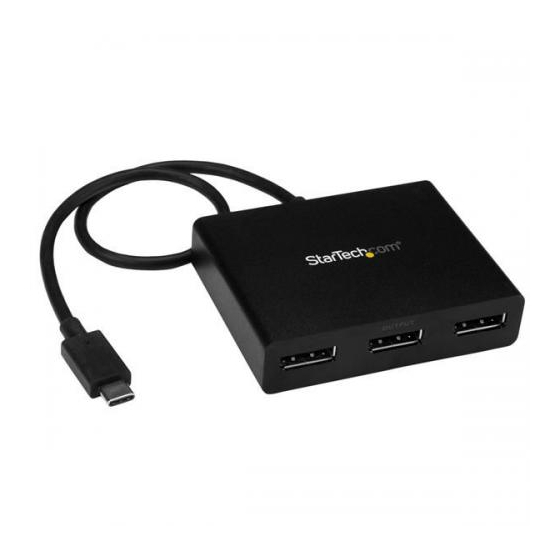

Product overview
Integrated USB-C
input cable
Package contents
• 1 x MST hub
• 1 x quick-start guide
System requirements
• 1 x computer with:
• DisplayPort over USB-C video support (DP Alt Mode)
• One of the following operating systems:
• Windows® 10 (32-bit or 64-bit)
• Windows 8 / 8.1 (32-bit or 64-bit)
• Windows 7 (32-bit or 64-bit)
• 3 x DisplayPort monitors with cabling
Operating systems are subject to change. For the latest
requirements, please visit www.StarTech.com/MSTCDP123DP.
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/MSTCDP123DP.
*actual product may vary from photos
DisplayPort
output ports
Installation
This device is natively supported in compatible operating systems
and supports plug-and-play installation.
Important operation notes
• The USB-C port on your computer must support DisplayPort over
USB-C (DP Alt mode) in order to work with this MST hub.
• MST is certified for operation with Microsoft® Windows 10, 8/8.1
and 7 devices.
• MST is currently not supported by other operating systems
such as Mac OS X and Chrome OS™.
• Other operating systems might adopt MST in the
future. Verify MST support with your operating system
manufacturer.
• Operating system support is subject to change. For the
latest requirements, please visit
MSTCDP123DP.
• After the MST hub has been connected to your computer it may
be necessary to initiate the operation of additional displays from
within your Windows Display Settings.
• The MST adapter works with DisplayPort cables up to 15 ft. in
length.
• Certain graphics adapters have limited MST support and will only
output to three displays in total. If more than three monitors are
attached, the fourth will be disabled, including built-in laptop
monitors or touchscreen displays.
• MST shares 21.6Gbps of bandwidth across all attached displays.
Higher resolutions can restrict the bandwidth available for the
remaining ports. Please see our guidelines below for determining
the ideal resolution for your setup.
www.StarTech.com/
Manual Revision: 04/10/2019
