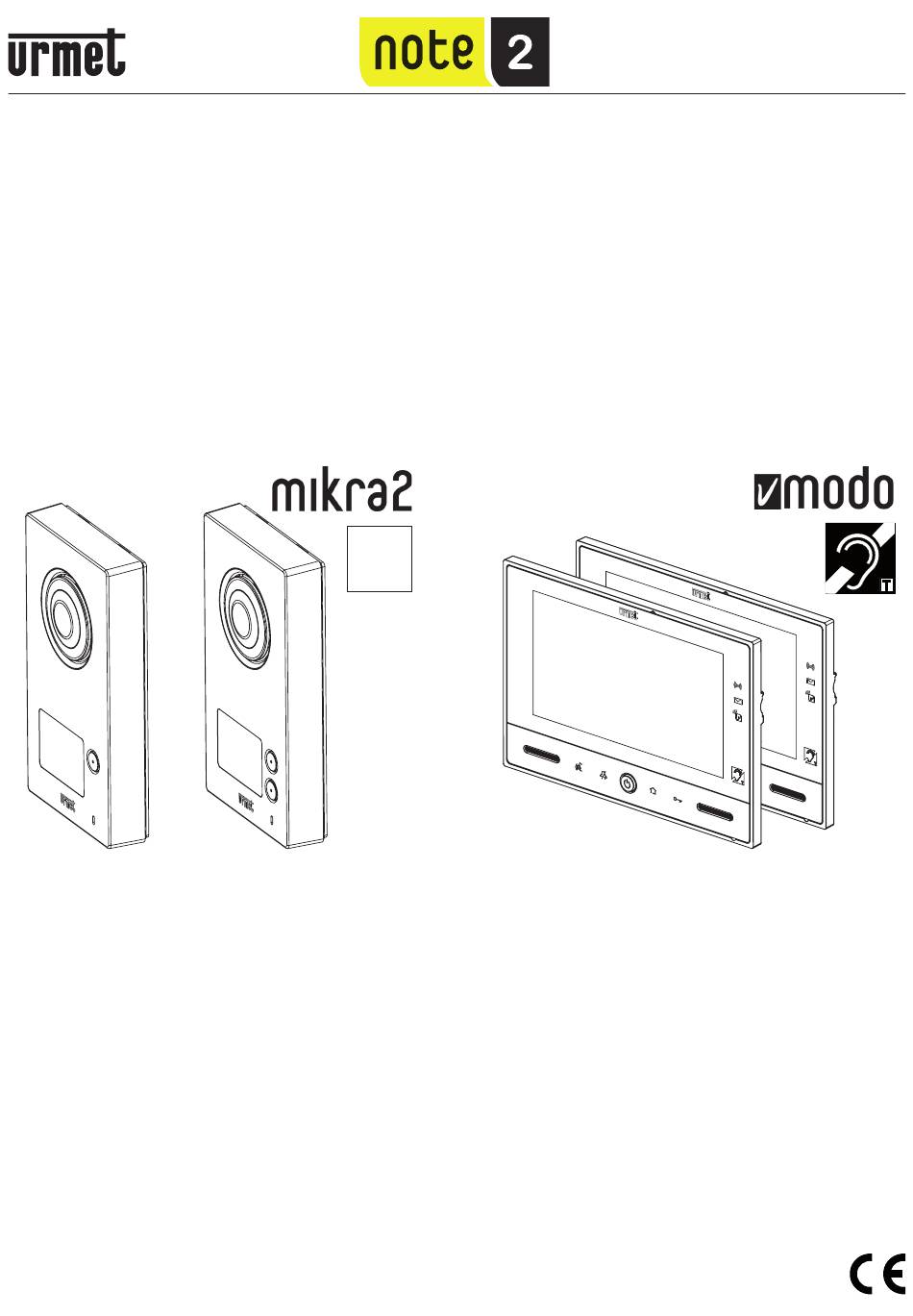

ONE- AND TWO-HOUSEHOLD KIT WITH PANEL AND COLOUR
7" HANDS-FREE MONITOR
Ref. 1723/71 - 1723/72 (*)
IP45
IP45
IK07
IK07
(*)
(*)
USAGE BOOKLET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1723 and is the answer not in the manual?

Questions and answers

Summary of Contents for urmet domus 1723

  • Page 1 Mod. 1723 DS 1723-029 LBT 20474 ONE- AND TWO-HOUSEHOLD KIT WITH PANEL AND COLOUR 7” HANDS-FREE MONITOR Ref. 1723/71 - 1723/72 (*) IP45 IP45 IK07 IK07 USAGE BOOKLET...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCTION ............. 3 RECEIVING A VIDEO DOOR PHONE CALL FROM OUTSIDE ................3 INTERCOM CALL ..............................5 CONTROLLING THE CAMERA ..........................7 VIDEO DOOR PHONE ANSWERING SERVICE ....................... 8 VIDEO DOOR PHONE ANSWERING DEVICE ACTIVATION ................
  • Page 3: How To Turn On The Screen And Access The Various Function

    HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCTION — Touch anywhere on the screen or — Press the button at the bottom centre of the video door phone. To turn off the screen, press the button of the video door phone or wait for the 60 second timeout. RECEIVING A VIDEO DOOR PHONE CALL FROM OUTSIDE Forward a video door phone call by pressing the call button: icon lights up to indicate that the call has been forwarded.
  • Page 4 — The green button. — button. Following a call (before starting a conversation or during the conversation), it is also possible: • To modify the image from 4:3 to 16:9 or vice-versa. • To do so, touch the icon; the 16:9 format is selected and the camera frames the upper part of the scene. It is possible to shift the frame by scrolling the image with your fi...
  • Page 5: Intercom Call

    • Regulate the sound intensity of the speaker by touching the icon . (If the user wishes to enable or disable the feedback ‘click’ of the touchscreen). Finally, during the conversation, it is possible to enable or disable the microphone to prevent the visitor from listening by touching the button.
  • Page 6 Select the video door phone to call by touching the corresponding line. The following page will appear on the video door phone making the call: The video door phone called rings and presents the following page for a maximum of 60 seconds; then the system returns to stand-by.
  • Page 7: Controlling The Camera

    After answering, the page on both video door phones changes as follows: Both users can: — exclude or reactivate the microphone of his/her own video door phone to prevent the other from hearing what is said. — end the conversation. CONTROLLING THE CAMERA Turn on the video door phone and touch the control camera button: The video door phone will present the image taken by the panel camera, also offering the possibility to open the...
  • Page 8: Video Door Phone Answering Service

    The user can enable or disable the cycle display at any time by touching the icon. By touching the icon it is possible to start the recording of a videoclip. If the cyclic transition between cameras is enabled, the recording of the videoclip is considered a priority. Therefore the passage to the next camera will take place only at the end of the recording of the videoclip, therefore guaranteeing the user the possibility to make a full recording of what he/she desires.
  • Page 9: Activating The Message

    Touch ‘New Message’, the button changes into . Touch it and record the message. The maximum length of a message is 20 seconds. The recording may be interrupted sooner by touching the icon. It is also possible to have the message followed by a ‘beep’ (to invite the visitor to leave a message). ACTIVATING THE MESSAGE Turn on the video door phone and activate the function by touching the relative button A check-mark will appear next to the button...
  • Page 10: Videoclip Consultation

    VIDEOCLIP CONSULTATION All the videoclips recorded (automatically in case of alarms or the phone answering device, or manually in case of recording during a call) are listed in the videoclip section, which can be accessed by pressing the button. The number next to the icon indicates the videoclips that have not yet been seen The recordings to still be seen are highlighted in green, while those already seen are in black.
  • Page 11 Turn the video door phone on again and touch the icon to access the videoclip menu. On the right a new icon will now appear to indicate the presence of the microSD card: Touch this icon to select which videoclip you wish to save: Then touch the icon with the symbol of the microSD card to the top right: saving will be started.
  • Page 12: Deleting Videoclips

    DELETING VIDEOCLIPS Turn the video door phone on again and touch the icon to access the videoclip menu. When the icon next to each videoclip is touched, a square will appear. For each videoclip to be deleted, touch the relative square and a check mark will appear. Select the button to eliminate all the videoclips marked with a check mark.
  • Page 13: Activating Home Automation Commands

    ACTIVATING HOME AUTOMATION COMMANDS From the Home Page press the button to access Yokis Home Automation: From here select the command or commands desired. To schedule a command in one or more weekly events, go to the home automation page of the video door phone, press , and then The following page will appear:...
  • Page 14 This will return to the previous page. From here it is possible to enable or disable a previously confi gured schedule. To change a schedule, it is suffi cient to select it and proceed in the same manner as when it was created. To cancel a schedule, touch the picture, add a check mark next to the scheduled programme to be deleted by touching the square and, fi...
  • Page 15: Audio Post-It

    AUDIO POST-IT This function makes it possible to record brief audio messages on the video door phone that can later be listened to by people returning home or to the offi ce. RECORDING MESSAGES Turn on the video door phone, then access the audio POST-IT page using the button.
  • Page 16: Listening To Messages

    LISTENING TO MESSAGES icon indicates the number of the audio POST-ITs not yet listened to. When touched, the list of messages appears: • new messages in green • messages already listened to in black. Just touch one of the messages in the list and then the play icon to listen to it.
  • Page 17: Automatic Door Opener

    For each message to be deleted, touch the relative square; this will make a check mark appear, indicating that the message has been selected. Select the button to eliminate all the messages marked with a check mark. AUTOMATIC DOOR OPENER The function of the automatic door opener makes it possible automatically open the door when a call is forwarded from outside to the apartment.
  • Page 18: Alarm

    ALARM When a sensor that is normally closed changes status, the master video door phone indicates the following: — If an entrance time was set, for all this time the alarm LED to the top right fl ashes green. — Once the entrance time has expired, the alarm LED to the top right becomes a steady red.
  • Page 19: Signalling The Alarm Having Been Activated (Alarm Memory)

    SIGNALLING THE ALARM HAVING BEEN ACTIVATED (ALARM MEMORY) The memory of the alarm having been activated (one or more) is indicated to the user (upon his return home) by the fl ashing red alarm LED (and also by the video memory LED fl...
  • Page 20: Saving The Alarm Log Menu

    SAVING THE ALARM LOG MENU It is possible to save the log of all the alarms on a microSD card. Turn off the master video door phone display using the central button and insert a microSD card Turn on the video door phone again and touch the icon fi...
  • Page 21: Deleting The Alarm Log

    DELETING THE ALARM LOG Turn on the video door phone and touch the icon, then select ‘Alarms’ to access the alarm log. When the icon next to each alarm is touched, a square will appear. For each item to be deleted, touch the relative square and a check mark will appear. Select the button to eliminate all the alarms marked with a check mark.
  • Page 22: Door Opening Log

    DOOR OPENING LOG All the door and gate openings, whether they are triggered by the video door phones, by the door unites via the passage of proximity keys, or by hall buttons, are saved in the system. To consult the door opening log, turn on the video door phone and touch the icon.
  • Page 23: Using The Thermostat

    USING THE THERMOSTAT Only if the Thermostat function was enabled the temperature detected by the probe will appear on the bottom left of the Home Page, next to the time: Touch the temperature and a pop-up menu will appear that makes it possible to set the desired temperature: Use the arrows to change the value of the temperature set.
  • Page 24: Push To Talk (Ptt) Mode

    — The offset to be applied to the temperature detected by the probe (useful for example when the probe was positioned in a point in the room that was too hot or too cold). By selecting this line, a pop-up will appear, making it possible to defi...
  • Page 25: Audio Settings

    AUDIO SETTINGS In this page it is possible to vary the audio level of the ring tone ( ), of the speaker ( ), and enable or disable the sound of pressing of the keys on the display ( If the user should decide to silence the ring tone of the video door phone, for example while sleeping, it is suffi cient to touch the soft touch button below.
  • Page 26: Selecting The Melodies

    Touch one of the values proposed, then close the window using the button. Regardless of the mode selected, the LED will light up red to indicate that the audio of the ring tone was silenced and will turn off when the audio is enabled again. SELECTING THE MELODIES To select the melodies for each type of call and the alarm notifi...
  • Page 27 When the signal to be personalised is selected, the following page will be visualised: Then touch the icons of the individual melodies to listen to them. It is possible to use personal ring tones. Just create a ‘SOUNDS’ folder in the in the microSD card where the desired melody can be copied.
  • Page 28: Back-Lighting

    BACK-LIGHTING To set the level of luminosity of the video door phone display, select the item ‘Video’ in the ‘Confi guration’ menu. DATE AND TIME To set the date and time, select the item ‘Date & Time’ in the ‘Confi guration’ Menu. When entering the date and time, it is necessary to FIRST cancel the contents of the fi...
  • Page 29: Intercom: Setting The Video Door Phone Names

    INTERCOM: SETTING THE VIDEO DOOR PHONE NAMES In the ‘Confi guration’ menu, select the item ‘Intercom’. The following will appear: In this page there is a list of the other 3 video door phones (other than the one being used) and a fourth item for the general call.
  • Page 30: Access Control

    ACCESS CONTROL The kit comprises 5 transponder keys and 2 chip tags for electric lock activation. The chip tag is the sensor contained inside the keys and can be attached to various objects of daily use (keyholder, cell phone, watch. etc.). To open the door, move a key or the object to which the chip tag has been attached close to the name tags area of the call station (the correct point is indicated with ) as shown to the side.
  • Page 31: Key Cancellation Procedure

    KEY CANCELLATION PROCEDURE To cancel the keys programmed: 1. Move the Master key close to the call station. 2. The call station emits a confi rmation beep. 3. Hold the Master key in front of icon for at least 5 seconds. 4.
