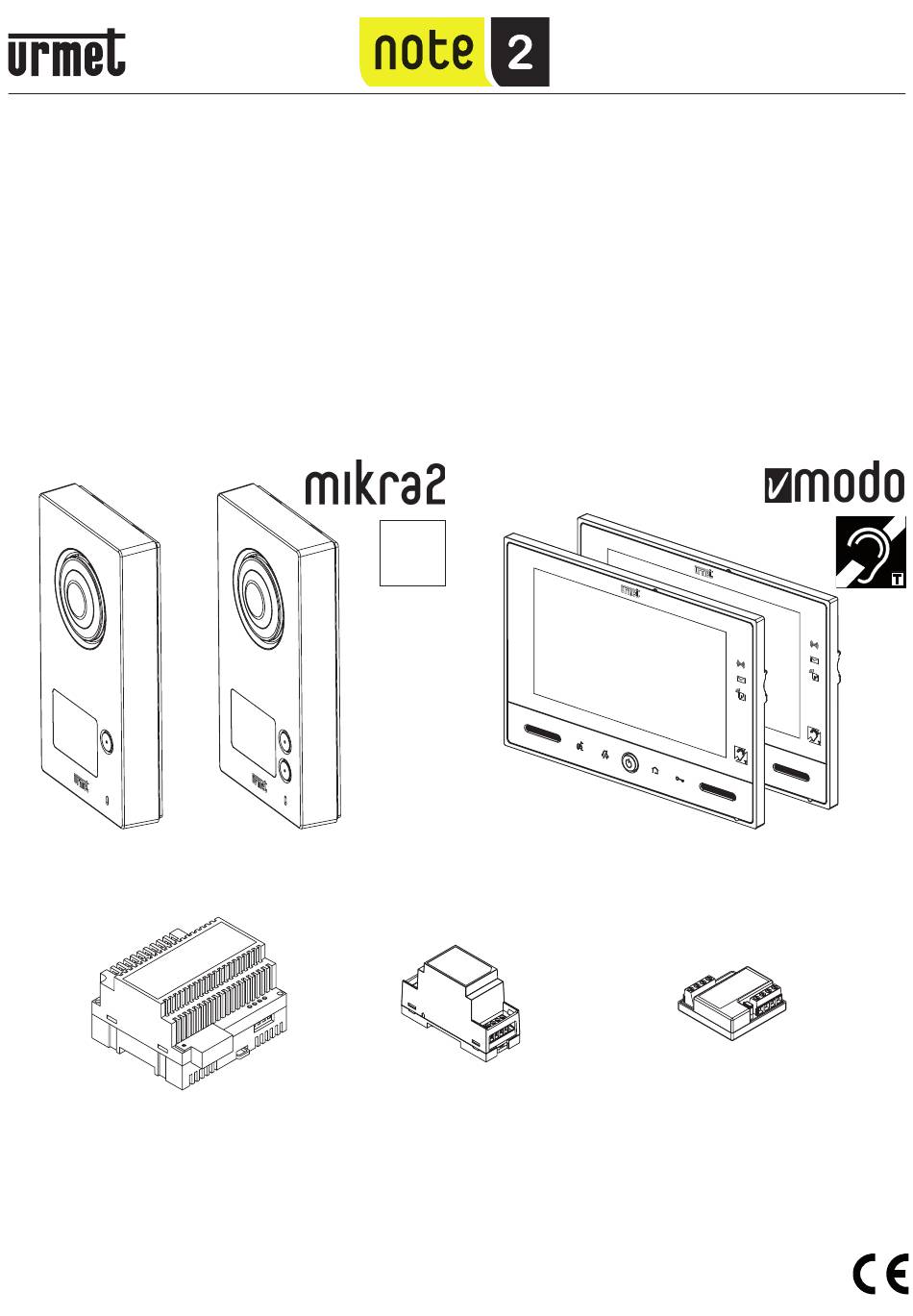

One- and two-household kit with panel and colour 7" hands-free monitor
Hide thumbs Also See for 1723:
Table of Contents

Advertisement

DS 1723-001A
KIT VIDEOCITOFONICO A 2 FILI MONO E BIFAMILIARE 7" VIVAVOCE A COLORI
ONE- AND TWO-HOUSEHOLD KIT WITH PANEL AND COLOUR 7" HANDS-FREE MONITOR
KIT VIDEO 2 FILS MONO/BI-FAMILLE 7" MAINS-LIBRES COULEUR
KIT VIDEOINTERFÓNICO DE 2 HILOS MONO Y BIFAMILIAR 7" MANOS LIBRES COLOR
2-DRAHT-VIDEOSPRECHANLAGE-KIT FÜR EIN- UND ZWEIFAMILIENHÄUSER
MIT FREISPRECHEINRICHTUNG UND 7"-FARBBILDSCHIRM
KIT TWEEDRAADSE, HANDENVRIJE KLEUREN-VIDEO-INTERCOM VOOR EEN EN
TWEE WONINGEN MET 7" DISPLAY
Sch. / Ref. 1723/71 - 1723/72
IP45
IP45
IK07
IK07
(*)
LIBRETTO INSTALLAZIONE
INSTALLATION HANDBOOK
MANUEL D'INSTALLATION
MANUAL DE INSTALACIÓN
INSTALLATIONSANLEITUNG
INSTALLATIEHANDLEIDING
(*)
(*)
Mod.
1723
LBT 20298
(*)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1723 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for urmet domus 1723

  • Page 1 KIT VIDEOINTERFÓNICO DE 2 HILOS MONO Y BIFAMILIAR 7” MANOS LIBRES COLOR 2-DRAHT-VIDEOSPRECHANLAGE-KIT FÜR EIN- UND ZWEIFAMILIENHÄUSER MIT FREISPRECHEINRICHTUNG UND 7“-FARBBILDSCHIRM KIT TWEEDRAADSE, HANDENVRIJE KLEUREN-VIDEO-INTERCOM VOOR EEN EN TWEE WONINGEN MET 7” DISPLAY Sch. / Ref. 1723/71 - 1723/72 IP45 IP45 IK07 IK07...
  • Page 2: Table Of Contents

    11 KEY TO SYMBOLS ............................41 12 SIMPLIFIED EU DECLARATION OF CONFORMITY ..................41 13 WIRING DIAGRAM ............................122 13.1 ONE-HOUSEHOLD KIT CONNECTION REF.1723/71 WITH 3 VIDEO DOOR PHONES IN PARALLEL ............................122 13.2 TWO-HOUSEHOLD KIT CONNECTION REF.1723/72 WITH 3 VIDEO DOOR PHONES IN PARALLEL FOR EACH USER.
  • Page 3: General Description

    The features of the video door phone system are: System • One-household kit ref. 1723/71: – Allows the use of two video door phones without any supplementary power supply. – Can manage up to four door phones (one Master and three Slaves) called in parallel, with in-out connection.
  • Page 4 Intercom call between single video door phones in the same apartment. • Group intercom call to all video door phones belonging to the same apartment. • Group intercom call between video door phones of different apartments (function available with kit ref. 1723/72 only). Additional functions •...
  • Page 5: Kit Composition

    Screws for fi xing to wall (ø 3.5 x 32 mm) Anchor bolts for fastening to wall (ø 5 mm) Screwdriver insert (ø 2 mm) Grey name tag (qty. 1 in kit ref. 1723/71, qty. 2 in kit ref. 1723/72) Transparent name tag (qty. 1 in kit ref. 1723/71, qty.
  • Page 6 Video door phone Mod. VMODO Master (qty. 1 in kit ref. 1723/71, qty. 2 in kit ref. 1723/72) Bracket for fi xing to wall (qty. 1 in kit ref. 1723/71, qty. 2 in kit ref. 1723/72) Screws for fi xing to wall (ø 2.9 x 32 mm) (qty.
  • Page 7: Accessory Devices

    OP13 1723/51 Table stand for video door phone 7” hands-free Ref. OP14 1723/52 (max. 4 if with kit ref. 1723/71, max. 8 if with kit ref. 1723/72) Call sender device Ref. (max. 1 if with kit ref. 1723/71, OP15 1723/58 max.
  • Page 8 Flush-mounting kit for video door phone 7” hands-free Ref. OP16 1723/60 (max. 4 if with kit ref. 1723/71, max. 8 if with kit ref. 1723/72) Ref. CCTV interface 1723/69 OP17 BALUN passive one-channel video Ref. (one for each camera connected to the...
  • Page 9: Spare Parts

    SPARE PARTS Description System power supply unit Ref. 1723/20 Audio video inductor Ref. 1723/112 Video distributor Ref. 1723/55 CONNECTION BLOCK CHART ONE-HOUSEHOLD SYSTEM Master OP20 OP21 OP22 OP19 Slave OP22 OP19 230 V~ OP22 Slave OP19 230 V~ OP22 Slave...
  • Page 10: Two-Household System

    TWO-HOUSEHOLD SYSTEM OP21 OP20 OP20 230 V~ Master 1 Master 2 OP22 OP22 OP19 OP19 OP22 OP22 Slave OP19 Slave OP19 OP22 OP22 OP19 OP19 Slave Slave 230 V~ 230 V~ OP22 OP22 OP19 OP19 Slave Slave 230 V~ 230 V~ 5.2.1 Maximum distances between devices Type of wire SYT1-3P-AWG20...
  • Page 11: Warnings For Installers

    WARNINGS FOR INSTALLERS Read the notes in this manual carefully. This manual contains important information on safe installation, use and maintenance. • This devices in the kit must only be put to the use for which they were intended. All other use is improper. The manufacturer cannot be held responsible for damage deriving from improper, incorrect or unreasonable use.
  • Page 12: Video Door Phone Installation

    VIDEO DOOR PHONE INSTALLATION DESCRIPTION OF COMPONENTS Front panel: Alarm icon Mail in letterbox indication icon (LETTERBOX function) POST-IT audio message presence icon 7’’ display Icon indicating that the video door phone is hearing-aid compatible (ILA) Speakers Door opening button (touch) Yokis command reception confi...
  • Page 13: Installation Method

    INSTALLATION METHOD • Fix the bracket to the wall using a box 503 and the screws provided or a Ø 60 mm box with suitable screws. • Program the dip-switches and connect the system wires to the terminal boards. • Couple the video door phone to the bracket at the four hooks on the sides.
  • Page 14: Outdoor Camera/Relay 2 (Op20) Connector Description

    LINE OUT terminals. Terminal insert (default) Terminal not inserted • JP2: this is used to power the video door phone from the Bus line or via a local transformer ref. 1723/22. Bus light power supply (default) Power from local transformer DIP-SWITCH CONFIGURATION The video door phone has 8 dip-switches on the back of the device.
  • Page 15: Calling Button To Video Door Phone Association

    Release the button listen. Dip-switch 6 position Dip-switch 6 position Function off Function on 7.7.5 Default settings One-household kit ref. 1723/71: Video door phone Video door phone 1 Two-household kit ref. 1723/72: Video door phone 2 DS1723-001A...
  • Page 16: System Power Supply And Audio Video Inductor Installation

    (2 modules, 18 mm each). The electronic inductor module must be installed in the same electric panel as the power supply unit. 8.1.1 Description of terminals System power supply ref. 1723/20 Mains power voltage input 110-230 Vac 110-230V~ Power voltage output Audio video inductor ref.
  • Page 17: Control Panel Installation

    CONTROL PANEL INSTALLATION DESCRIPTION OF COMPONENTS Panel Mod. MIKRA2 with 1 calling button Panel Mod. MIKRA2 with 2 calling buttons (present only in one-household kit ref. 1723/71) (present only in two-household kit ref. 1723/72) Front panel: 1. Speaker 2. Camera lighting LED 3.
  • Page 18: Installation Method

    INSTALLATION METHOD • Install the panel at the indicated heights checking that the caller is framed by the camera. • Connect the wires to the terminal boards. • Fit the name tags on the front. • Program the device. • If necessary, adjust the speaker volume.
  • Page 19: Description Of Terminals

    Dip-switch 3 position Dip-switch 3 position Function on Function off 9.4.4 Apartment 0 call enabling from both button on panel (function available only with two-household kit ref. 1723/72) Dip-switch 4 position Dip-switch 4 position Function off Function on 9.4.5 Pedestrian gate and garage gate lock activation type selection, capacitance discharge or dry...
  • Page 20: Panel Type Setting

    0 seconds (300ms pulse) 3 seconds 6 seconds 9 seconds 9.4.8 Default settings One-household kit ref. 1723/71: Panel 1 Two-household kit ref. 1723/72: Panel 2 SPEAKER VOLUME ADJUSTMENT Volumes are calibrated by default so not to require adjustments in most cases.
  • Page 21: Key To Symbols

    Hereby, URMET S.p.A. declares that the radio equipment types: ONE- AND TWO-HOUSEHOLD KIT WITH PANEL AND COLOUR 7” HANDS-FREE MONITOR (Ref. 1723/71 and 1723/72) are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.urmet.com...
  • Page 22: One-Household Kit Connection Ref.1723/71 With 3 Video Door Phones

    RACCORDEMENT DU KIT MONO-FAMILLE REF. 1723/71 AVEC 3 MONITEURS EN PARALLELE CONEXIÓN DEL KIT MONOFAMILIAR REF. 1723/71 CON 3 VIDEOINTERFONOS EN PARALELO ANSCHLUSS DES EINFAMILIENHAUS-KITS TYP1723/71 MIT 3 PARALLEL GESCHALTETEN VIDEOSPRECHANLAGEN AANSLUITING VAN DE KIT VOOR EEN WONING NR.1723/71 MET 3 PARALLEL GESCHAKELDE VIDEO-INTERCOMS 1723/73: JP1: ON...
  • Page 23 CONEXIÓN DEL KIT BIFAMILIAR REF. 1723/72 CON 3 VIDEOINTERFONOS EN PARALELO A CADA USUARIO ANSCHLUSS DES ZWEIFAMILIENHAUS-KITS TYP1723/72 MIT 3 PARALLEL GESCHALTETEN VIDEOSPRECHANLAGEN BEI JEDEM TEILNEHMER AANSLUITING VAN DE KIT VOOR TWEE WONINGEN NR. 1723/72 MET 3 PARALLEL TUSSEN ELKE VERBRUIKER GESCHAKELDE VIDEO-INTERCOMS SV102-3990 APT0...
  • Page 24 Video distributor (present only in kit ref. 1723/72) Distributeur vidéo (uniquement dans le kit réf. 1723/72) 1723/55 Distribuidor vídeo (presente sólo en el kit ref. 1723/72) Videoverteiler (nur vorhanden im Kit Typ 1723/72) Videoverdeler (alleen aanwezig in de kit nr. 1723/72)
  • Page 25 Videocitofoni supplementari 7“ vivavoce Mod. VMODO Supplementary video door phones Mod. VMODO 7“ hands-free Moniteurs supplémentaires modèle VMODO 7“ mains-libres 1723/73 Videointerfonos adicionales Mod. VMODO 7“ manos libres Zusätzliche Videosprechanlagen Mod. VMODO 7” Freisprechfunktion Extra video-intercoms mod. VMODO 7“ handenvrij...
  • Page 26 13.4 NOTE LEGATE AGLI SCHEMI NOTES ON DIAGRAMS REMARQUES CONCERNANT LES SCHÉMAS NOTAS REFERIDAS A LOS ESQUEMAS HINWEISE IN VERBINDUNG MIT DEN PLÄNEN OPMERKINGEN OMTRENT DE SCHEMA’S VX.008 (Rev. A) Connettere le apparecchiature ad un fi ltro e a un dispositivo di protezione per la linea d’alimentazione. Connect the devices to a fi...
  • Page 27 ITALIANO DIRETTIVA 2012/19/UE DEL PARLAMENTO EUROPEO E DEL CONSIGLIO del 4 luglio 2012 sui rifi uti di apparecchiature elettriche ed elettroniche (RAEE) Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla fi ne della propria vita utile deve essere raccolto separatamente dagli altri rifi uti. L’utente dovrà, pertanto, conferire l’apparecchiatura giunta a fi...
  • Page 28 DS 1723-001A LBT 20298 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com Telef. +39 011.24.00.000 (RIC. AUT.) e-mail: info@urmet.com +39 011.24.00.300 - 323 MADE IN CHINA...
