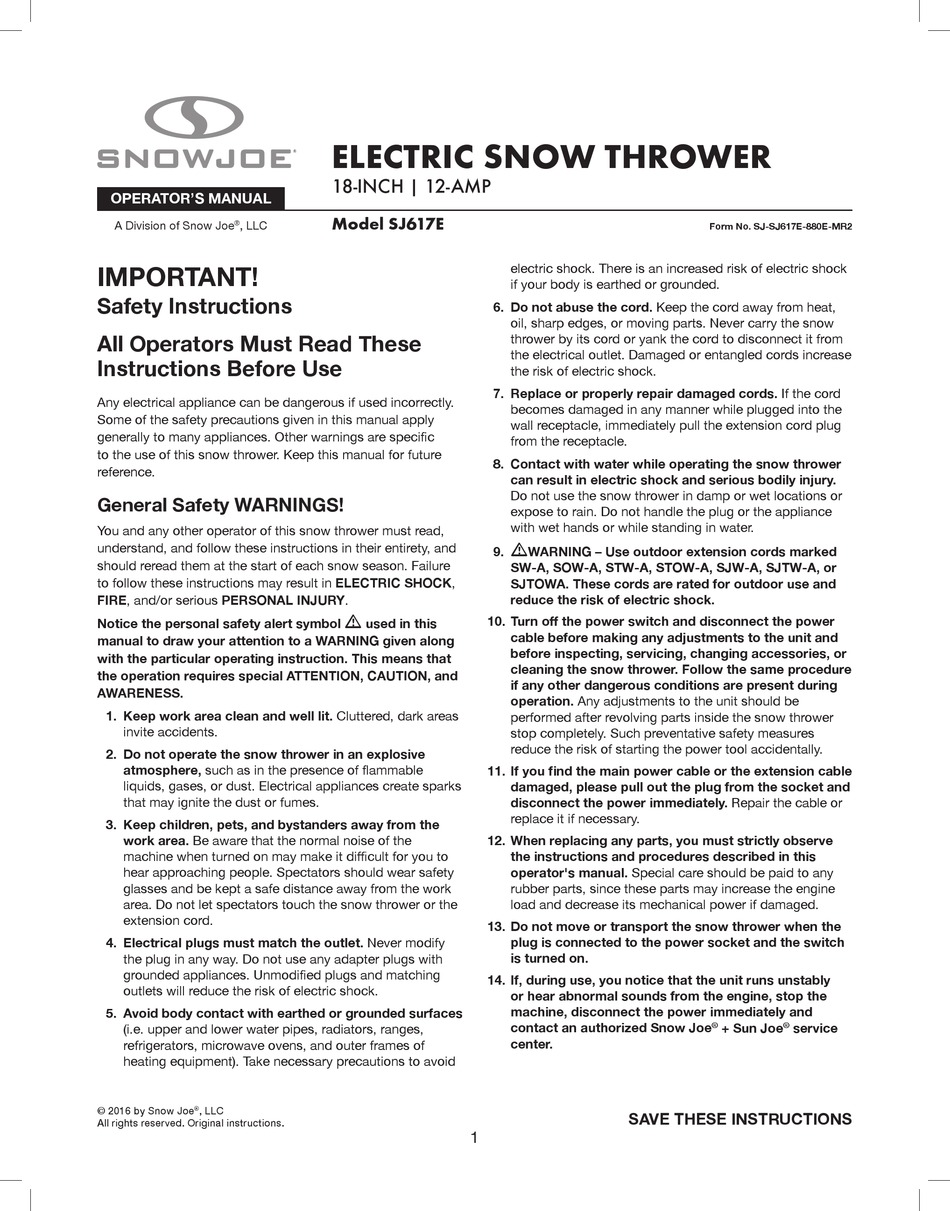

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific
to the use of this snow thrower. Keep this manual for future
reference.
General Safety WARNINGS!
You and any other operator of this snow thrower must read,
understand, and follow these instructions in their entirety, and
should reread them at the start of each snow season. Failure
to follow these instructions may result in ELECTRIC SHOCK,
FIRE, and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and
AWARENESS.
1. Keep work area clean and well lit. Cluttered, dark areas
invite accidents.
2. Do not operate the snow thrower in an explosive
atmosphere, such as in the presence of flammable
liquids, gases, or dust. Electrical appliances create sparks
that may ignite the dust or fumes.
3. Keep children, pets, and bystanders away from the
work area. Be aware that the normal noise of the
machine when turned on may make it difficult for you to
hear approaching people. Spectators should wear safety
glasses and be kept a safe distance away from the work
area. Do not let spectators touch the snow thrower or the
extension cord.
4. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodified plugs and matching
outlets will reduce the risk of electric shock.
5. Avoid body contact with earthed or grounded surfaces
(i.e. upper and lower water pipes, radiators, ranges,
refrigerators, microwave ovens, and outer frames of
heating equipment). Take necessary precautions to avoid
© 2016 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

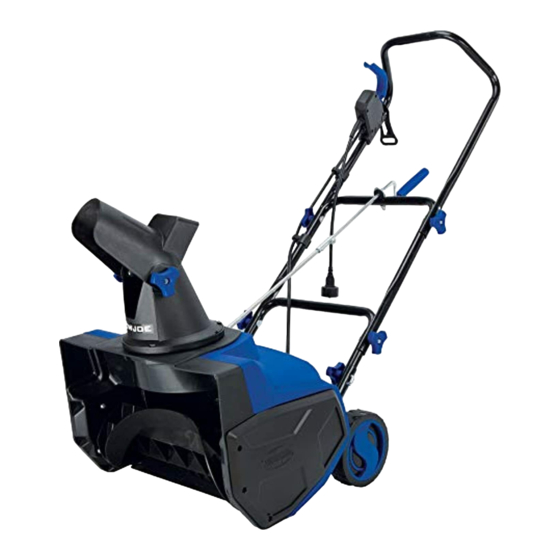

ELECTRIC SNOW THROWER
R
18-INCH | 12-AMP
Model SJ617E
m
used in this
1
electric shock. There is an increased risk of electric shock
if your body is earthed or grounded.
6. Do not abuse the cord. Keep the cord away from heat,
oil, sharp edges, or moving parts. Never carry the snow
thrower by its cord or yank the cord to disconnect it from
the electrical outlet. Damaged or entangled cords increase
the risk of electric shock.
7. Replace or properly repair damaged cords. If the cord
becomes damaged in any manner while plugged into the
wall receptacle, immediately pull the extension cord plug
from the receptacle.
8. Contact with water while operating the snow thrower
can result in electric shock and serious bodily injury.
Do not use the snow thrower in damp or wet locations or
expose to rain. Do not handle the plug or the appliance
with wet hands or while standing in water.
m
9.
WARNING – Use outdoor extension cords marked
SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A, or
SJTOWA. These cords are rated for outdoor use and
reduce the risk of electric shock.
10. Turn off the power switch and disconnect the power
cable before making any adjustments to the unit and
before inspecting, servicing, changing accessories, or
cleaning the snow thrower. Follow the same procedure
if any other dangerous conditions are present during
operation. Any adjustments to the unit should be
performed after revolving parts inside the snow thrower
stop completely. Such preventative safety measures
reduce the risk of starting the power tool accidentally.
11. If you find the main power cable or the extension cable
damaged, please pull out the plug from the socket and
disconnect the power immediately. Repair the cable or
replace it if necessary.
12. When replacing any parts, you must strictly observe
the instructions and procedures described in this
operator's manual. Special care should be paid to any
rubber parts, since these parts may increase the engine
load and decrease its mechanical power if damaged.
13. Do not move or transport the snow thrower when the
plug is connected to the power socket and the switch
is turned on.
14. If, during use, you notice that the unit runs unstably
or hear abnormal sounds from the engine, stop the
machine, disconnect the power immediately and
contact an authorized Snow Joe
center.
SAVE THESE INSTRUCTIONS
Form No. SJ-SJ617E-880E-MR2
+ Sun Joe
service
®
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SNOWJOE SJ617E
Summary of Contents for SNOWJOE SJ617E
- Page 1 OPERATOR’S MANUAL Model SJ617E A Division of Snow Joe , LLC ® Form No. SJ-SJ617E-880E-MR2 IMPORTANT! electric shock. There is an increased risk of electric shock if your body is earthed or grounded. Safety Instructions 6. Do not abuse the cord. Keep the cord away from heat, oil, sharp edges, or moving parts.
- Page 2 Electrical Safety 4. To prevent the appliance cord from disconnecting from the extension cord during operation, use the on-board cord 1. Ground fault circuit interrupter (GFCI) protection should restraint hook and/or make a knot with the two cords as be provided on the circuit(s) or outlet(s) to be used for shown in Table 1.
- Page 3 6. Body position – Maintain proper footing and balance • Abnormal operation – If you notice the snow thrower at all times. Place heels firmly on the ground and tightly running in an unstable state or hear abnormal sounds from grasp the handle bar. Watch for uneven surfaces and do the engine, immediately stop the machine, disconnect the not overreach.
- Page 4 Safety Symbols The following table describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, WARNING! Do not expose the and follow all instructions in the unit to rain or wet conditions.
- Page 5 Know Your Electric Snow Thrower Read the owner’s manual and safety rules carefully before operating your electric snow thrower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
- Page 6 If any damage is seen or suspected, do not assemble. Instead, contact the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Handle with care during assembly so that electrical wiring does not become damaged.
- Page 7 Chute Crank Assembly 4. Secure the middle frame to the lower frame using 2 knobs and 2 carriage bolts. Install the knobs on the outside of 1. Remove the cotter pin from the lower crank rod (Fig. 7). the unit, and tighten (Fig. 4). Fig.
- Page 8 4. Slide the crank rod connector over the top of the lower crank rod (Fig. 13). Fig. 10 Fig. 13 Crank rod connector Lower crank rod 3. Secure the lower crank rod in place with the cotter pin (Figs. 11 – 12). 5.
- Page 9 7. Slide the upper crank rod into the top of the crank rod connector (Fig. 16). Fig. 19 Fig. 16 Upper crank rod Locking arrow Crank rod connector Lower crank 2. Secure in place with the provided screw (Fig. 20). Fig.
- Page 10 4. Secure the carriage bolts and knobs. Make sure the knobs 3. Insert the female end of the extension cord into the are tightened (Fig. 22). appliance's polarized male plug (Fig. 24). Fig. 22 Fig. 24 Carriage bolt 4. Note that the snow thrower has a polarized male plug – one prong in the plug is slightly longer and wider than the other (Fig.
- Page 11 7. Do not push the snow thrower with excessive force. You Fig. 26 should push the machine gently and evenly in accordance with the unit’s throw rate. 8. Do not apply additional man-made load to the engine ON/OFF since this may cause engine damage. switch lever 9.
- Page 12 Changing Throw Direction and 2. The chute deflector on the top of the discharge chute controls the height of the snow stream. Loosen the knobs Throw Height to raise or lower the deflector to the desired height of snow you wish to throw. Tighten the knobs to secure the deflector (Fig.
- Page 13 Maintenance 1. Open the two side covers by removing the 5 screws on each side (Figs. 30 – 31). Fig. 30 WARNING Make sure to turn off the switch and disconnect the extension cord before performing any maintenance task on your snow thrower. Screws Screws Lifetime Lubrication (Motor and Auger) Lubrication is not necessary and may damage the unit.
- Page 14 Replacing the Scraper Bar 3. Remove the screws and the bushings from the drive wheel (Fig. 33). 1. The scraper bar is located at the base of the snow thrower beneath the rotor housing (Fig. 36). Fig. 33 Fig. 36 Screws Bushing 4.
- Page 15 1. Open the left side plate by removing the five screws 4. Use your right hand to press the belt with the ribbed side (Fig. 38). down. While holding the belt down with your right hand, use your left hand to turn the auger forward so that the auger pulley rotates in a clockwise direction.
- Page 16 Cover loosely with a tarp for added protection. Service and Support If your Snow Joe SJ617E electric snow thrower requires ® service or maintenance, please call the Snow Joe + Sun Joe ®...
- Page 17 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
- Page 18 NOTES...
- Page 19 Wearing parts like belts, augers, chains and tines are not covered This Warranty is extended by Snow Joe + Sun Joe to the owner under this warranty, and can be purchased at snowjoe.com or ® ® by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are of this Machine (a “Machine”...
- Page 20 WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm.
