ADAPTER ATTACHMENT INSTALLATION

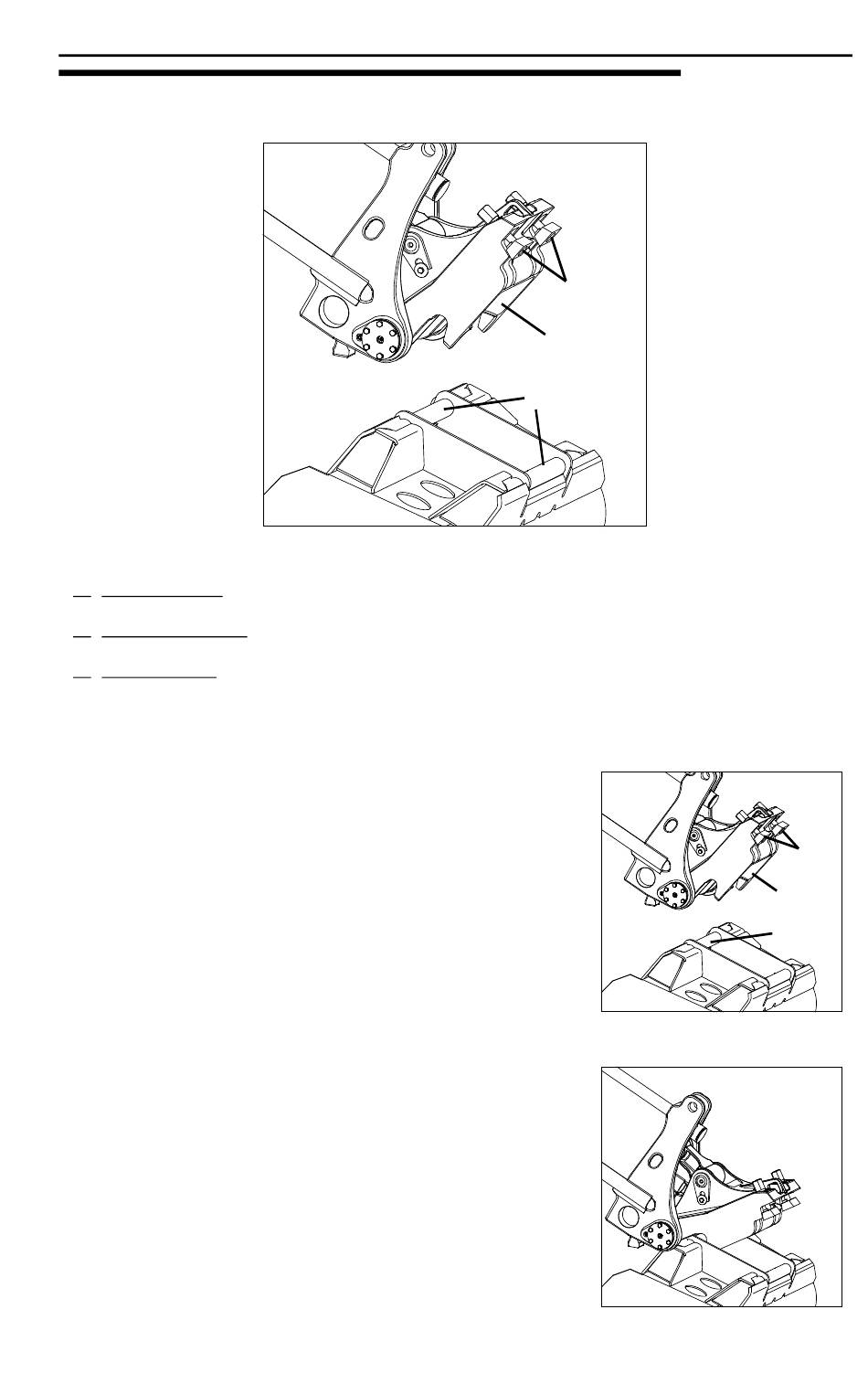

1. Wedge Bolts
2. Bucket Adapter
3. Bucket Bars
Installation Procedure:
1. Be sure wedge bolts (1) are secured in storage
position (toward rear) and position bucket adapter
(2) above bucket bar (3) as shown.
2. Lower boom until concave section of adapter
contacts bucket bar.
80884013
