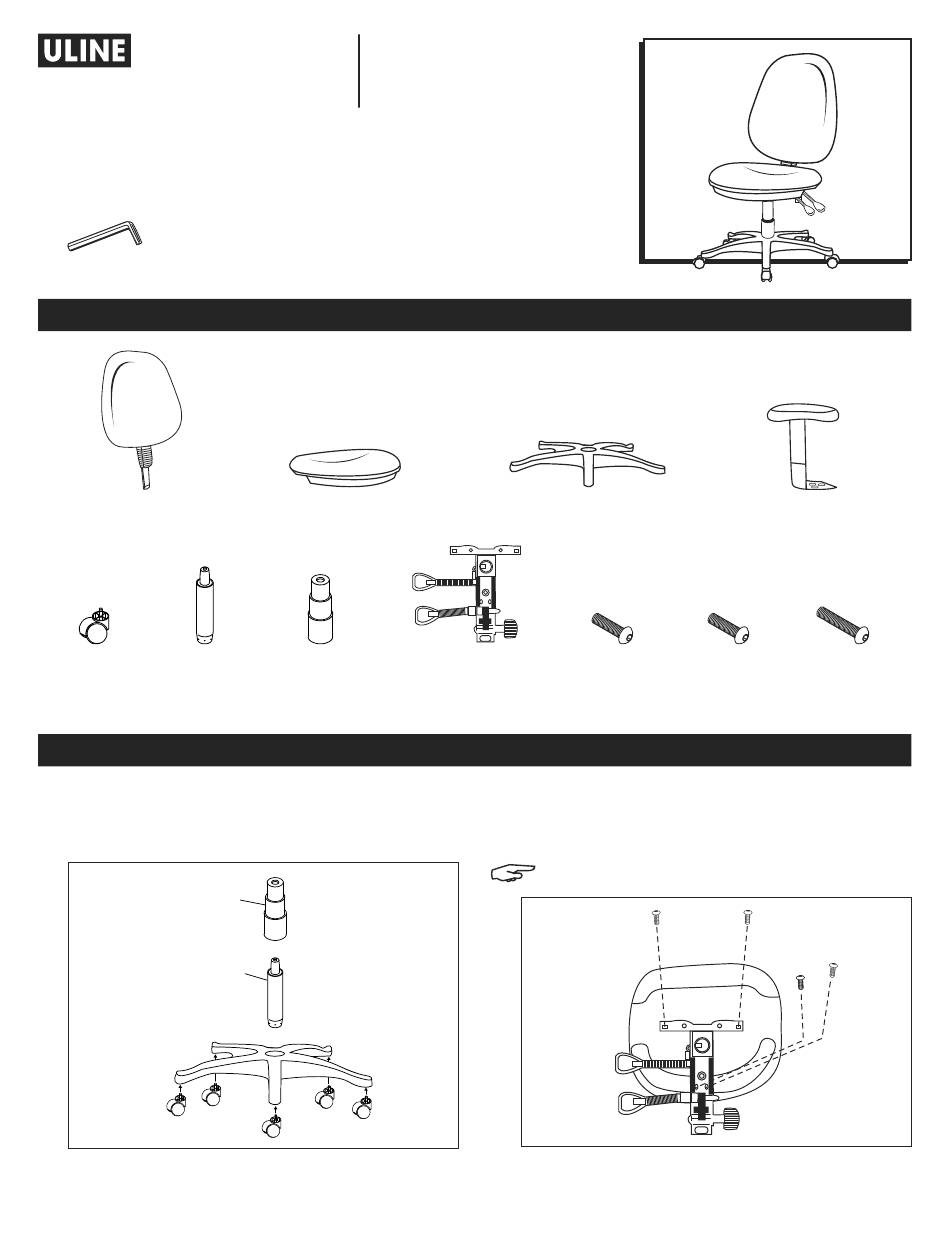

H-4111, H-4112

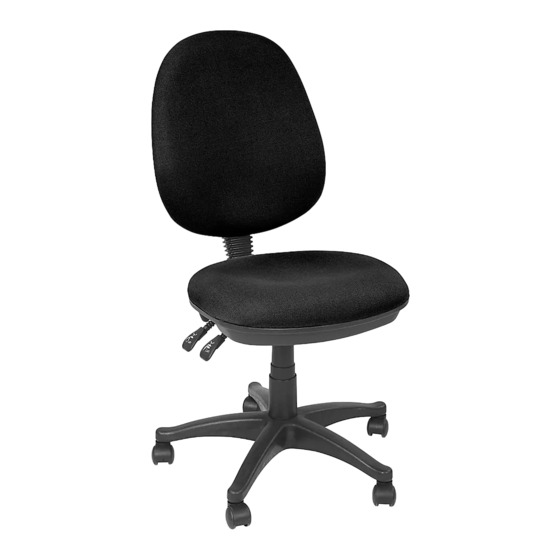

TASK CHAIR
TOOL INCLUDED
Allen Wrench
Back Cushion x 1
Caster x 5
Gas Lift x 1
1. Insert casters into legs of five-star base. Turn base
upright. Insert gas lift into center of base and place
dust cover over gas lift. (See Figure 1)
Figure 1
Dust
Cover
PAGE 1 OF 9
1-800-295-5510
uline.com
Seat Cushion x 1
Dust Cover x 1
Gas
Lift
PARTS
5-Star Base x 1
Mechanism x 1
Small Screw x 4
1/4 x 3/4"
ASSEMBLY
2. Align mechanism with holes on bottom of seat
cushion. Use four 1/4 x 3/4" screws to secure.
(See Figure 2)
NOTE: Use Allen wrench to tighten all screws.
Figure 2
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Armrest x 2
(H-4112 only)
Armrest Screw x 4
Large Screw x 6
M6 x 16
(H-4112 only)
(H-4112 only)
0621 IH-4111
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-4111
Summary of Contents for U-Line H-4111
- Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-4111, H-4112 1-800-295-5510 uline.com TASK CHAIR TOOL INCLUDED Allen Wrench PARTS Back Cushion x 1 Seat Cushion x 1 5-Star Base x 1 Armrest x 2 (H-4112 only)
- Page 2 ASSEMBLY CONTINUED 5. Insert back cushion post into corresponding socket in NOTE: For H-4112, continue to step 3 to attach arms. For H-4111, skip to step 5. mechanism attached to the bottom of seat cushion. (See Figure 5) 3. Use two armrest screws to attach armrest pad to each armrest.
-
Page 3: Chair Adjustments
CHAIR ADJUSTMENTS 1. Seat Height Adjustment – To raise seat height, lift 3. Back Height – To adjust back height, turn knob lever up with little to no weight on the seat. To lower counterclockwise and raise or lower the back. To seat height, lift lever up while sitting. - Page 4 H-4111, H-4112 800-295-5510 uline.mx SILLA PARA TRABAJO HERRAMIENTA INCLUIDA Llave Allen PARTES 1 Respaldo 1 Asiento 1 Base Estrella 2 Descansabrazos Acojinado Acojinado (solo H-4112) 5 Ruedas 1 Pistón de Gas 1 Cubierta para 1 Mecanismo 4 Tornillos Chicos 4 Tornillos para...
- Page 5 CONTINUACIÓN DE ENSAMBLE NOTA: Para el H-4112, continúe al paso 3 5. Inserte el poste del respaldo acojinado en el soporte para fijar los descansabrazos. Para el H-4111, correspondiente que está en el mecanismo en la continúe al paso 5.
- Page 6 AJUSTES DE LA SILLA 1. Ajuste de la Altura del Asiento – Para subir la altura 3. Altura del Respaldo – Para ajustar la altura del del asiento, levante la palanca sin o con poco respaldo, gire la perilla en contra de las manecillas peso en el asiento.
-
Page 7: Montage
H-4111, H-4112 1-800-295-5510 uline.ca CHAISE DE TRAVAIL OUTIL INCLUS Clé Allen PIÈCES Dossier x 1 Siège x 1 Base à 5 Accoudoir x 2 branches x 1 (H-4112 uniquement) Roulette x 5 Vérin Cache- Mécanisme x 1 Petite vis de 1/4... - Page 8 MONTAGE SUITE 5. Insérez le montant du dossier dans l'emboîture REMARQUE : Pour le H-4112, passez à l'étape 3 pour fixer les accoudoirs. Pour le H-4111, passez correspondante du mécanisme située sous le siège. à l'étape 5. (Voir Figure 5) 3.
- Page 9 RÉGLAGES DE LA CHAISE 1. Réglage de la hauteur du siège – Pour élever le 3. Hauteur du dossier – Pour régler la hauteur du siège, soulevez le levier avec peu ou sans poids sur dossier, tournez la molette dans le sens antihoraire le siège.
